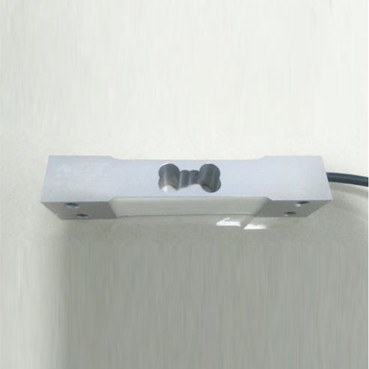

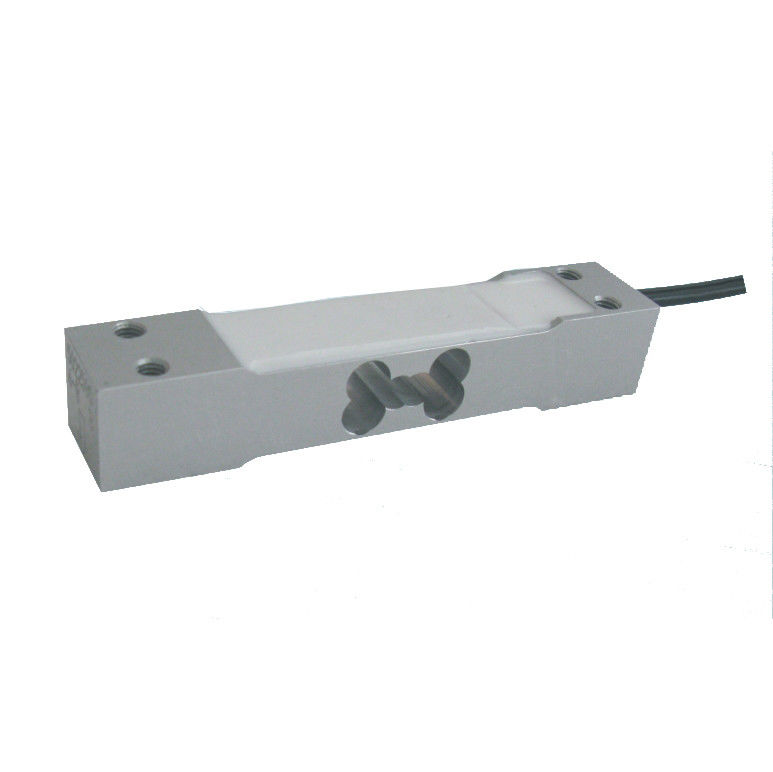

15V DC IP65 Aluminium Load Cell For Pricing Scale

Minimum Order Quantity : 1 Price : Online consultation
Packaging Details : Carton Delivery Time : one week
Payment Terms : T/T Supply Ability : 100000+pc+one week
Place of Origin: CHINA Brand Name: CONHON/KELI
Certification: - Model Number: AMI series

Detail Information

Range: 5,8,10,15,20,30,35,40kg Material: Stainless Steel Or Alloy Steel
Temperature Range: -20— + 40 Hysteresis Error: ±0.02% F.S
Product Name: Force Load Cell
High Light:

IP65 waterproof load cell


15V DC shear beam load cell

Product Description

Pricing scale Force Load Cell counting scale Force Load CeAMI Series Load Cell barcode scale Load Cell
Product Details



● Capacity: 5kg to 40kg

● Compact structure,easy installation

● OIML C3 approval




● Pricing scale, counting scale, barcode scale, etc.

● Variety kinds of press testing devices

15V DC IP65 Aluminium Load Cell For Pricing Scale 0


Rated capacity L L1 L2 L3 L4 H W T H1
400g,800g,2kg 130 3 17 90 25 25 12 M4 10





Rated capacity: 400g to 2kg Recommended Excitation:10V DC
Rated output:1.0±0.2mv/v Maximum Excitation:15V DC
Combined error:C3 Environment protection: IP65
Zero balance: ±5%Emax Input impedance: 404±15Ω
Creep error(30minutes):±166ppm Output impedance: 350±3Ω
Temperature effect on zero: ±28ppm/℃ Insulation resistance at 50V DC: ≥2000MΩ
Temperature effect on output: 0℃~+40℃,±17.5ppm/℃ Material: Aluminium
Compensated temperature range: 0℃~+40℃ Cable length: 0.5meter, diameter Φ3mm
Operating temperature range: 0℃~+50℃ Max.platform size:200×200mm
Maximum safe overload:150%Emax Installation torque,recommended:3N.m
Ultimate safe overload:300%Emax



We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
