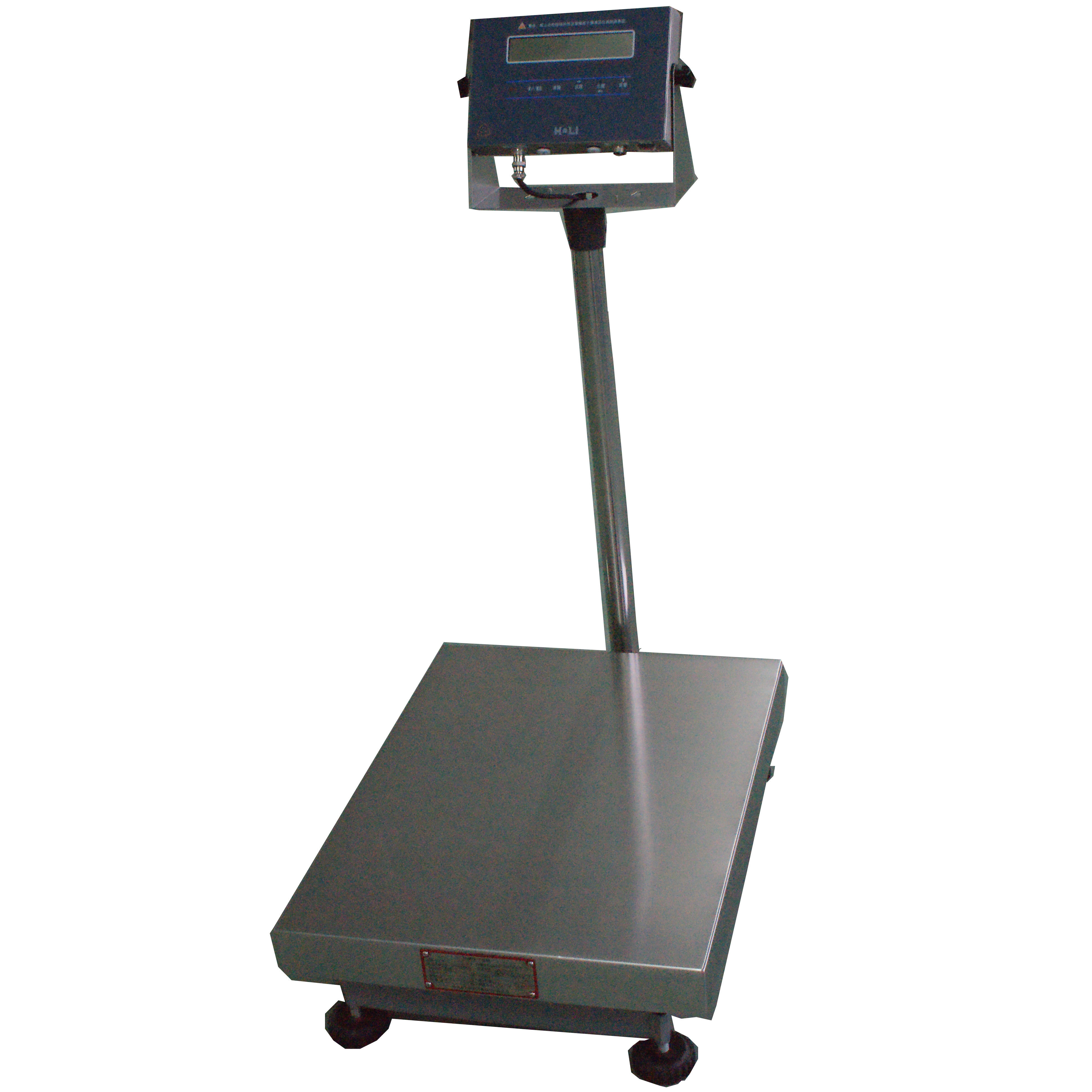

30mv 500KG Explosion Proof Floor Scale For Chemical Industry

Minimum Order Quantity : 1 Price : Online consultation
Packaging Details : Carton Delivery Time : one week
Payment Terms : T/T Supply Ability : 100000+pc+one week
Place of Origin: CHINA Brand Name: CONHON
Model Number: CHT-EX

Detail Information

Product Name: Explosion Proof Scale Range: 300KG-500KG
Accuracy: 0.2kg-1kg Explosion-proof Grade: Ex Ia II BT5
Accuracy Class:: III Input Signal Range:: -30mv ~ 30mv
High Light:

500KG forklift weight scale


30mv forklift weight scaleq


500KG electronic platform scale

Product Description

CHT-EX Explosion-proof electronic platform scale Explosion- Explosion Proof Scale Explosion-proof floor scale

Explosion-proof electronic platform scale, the scale platform is made of iron plate extrusion, equipped with precise single-point explosion-proof sensors and intrinsically safe explosion-proof weighing instruments; the unique structure of the scale body can well protect the sensors, and has functions such as waterproof and corrosion resistance ; The whole system has the characteristics of high accuracy and long-term stability; especially suitable for: chemical industry

Technical parameters of explosion-proof electronic platform scales:

Explosion-proof grade: Ex iaⅡCT5
Accuracy class: III

Display: LCD with backlight

AD conversion: Σ- △, 24bit

Resolution: Display 50,000 Internal Code: 2,000,000

Minimum resolution: 0.3μV / d

Excitation voltage: 5VDC

Input signal range: -30mv ~ 30mv

Working power: AC / DC intrinsically safe power supply or intrinsically safe battery pack 7.2V4.8Ah

Working environment temperature: -10 ~ 40 ℃

Humidity: ≤85% R.H

Structural features of explosion-proof electronic platform scales:

5mm iron plate is stamped at one time without welding

Carbon steel surface shot blasting, plastic spray treatment

304 stainless steel mask, surface polished, brushed

Square tube column, instrument angle adjustable

Product functions of explosion-proof electronic platform scales:

Basic functions: weighing, counting, zeroing, tare, stepwise, printing;

Extended functions: animal weighing, holding, sorting, check weighing, upper and lower limit alarms, etc .;

Optional function: RS232 / RS485, Modbus, analog output (4 ~ 20mA, 0 ~ 5V)

explosion-proof electronic platform scales product specifications:

Product name explosion-proof electronic platform scales
Product number CHT-EX
Table size



Note: Any non-standard size can be customized according to your requirements

30kg 60kg/75kg 100kg/150kg 300kg 500kg
2g 5g 10g 20g 50g
