MULTIFUNCTION, DIGITAL WEIGHT TRANSMITTER INDICATOR Weight Indicators Controller "DGTQ": DIGITAL WEIGHT TRANSMITTER
Multipurpose weight indicator/transmitter for panel mounting, 4 dependent or independent channels for direct reading and diagnostics of each connected load cell. The wide range of available interfaces, makes it easy to integrate the weighing with any automation system. CE-M approvable (OIML R-76 / EN 45501).

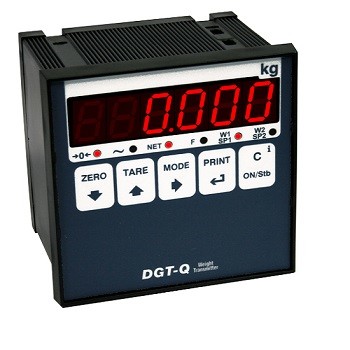

Easy to use 5-key waterproof keyboard.
Highly efficient red LED display with 6 13-mm digits and 6 LEDs for showing active functions.
Case for panel mounting in Abs according to DIN standard, 96x96x80 mm (lxhxpx). Perforation 90x88 mm (lxh) for panel mounting.
Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS
Up to 10.000e or multirange 2 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.
Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
Up to 8 signal linearization points with DINITOOLS (3 from keypad).
A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.
Connectable with up to 8 analogue load cells with 350 Ohm input resistance.
Management of a digitally equalised 4-cell weighing system or management of 4 independent weighing systems.
Master/Slave management (up to 4 Slaves / 1 Master).
From 12 Vdc to 24 Vdc power supply.
EU Type Examination Certificate (45501:2015)
OIML R61 - MID
TRANSMITTER / INDICATOR: FUNCTIONS
Zeroing; Semi automatic and presettable tare, print and/or data transmission; ON/Stand-by.
High Resolution Weighing x 10; Net/Gross or lb/kg conversion; Weighs totalisation; Formulation; Approved transmission of the weight to PC/PLC (with ALMEM Alibi memory option); Counting; In/Out Truck weighing; Hold e Peak.
Simulation of key pressure; Keyboard lock.
Set Point Control on the weight, either positive (in loading) or negative (in unloading), or on the pieces (counting mode), with programmable enabling/disabling thresholds, as direct check or upon weight stability.
On all models: Reading of the net, gross, and tare weights; Clearing; Semi automatic and presettable tare; Scale switch; Setting of outputs activation thresholds; Reading/Writing of Alibi Memory.
DGTQ and DGTQAN models: Reading of microvolts or ADC converter for all the channels; Message display; Printing; Setting of APW in counting mode; Simulation of key pressure; MODBUS serial protocol.
THROUGH 16 bit ANALOGUE OUTPUT (DGTQAN):
Analogue output proportional to the net or gross weight, either positive (in loading) or negative (in unloading).
MASTER/REPEATER OPTION (MSTSLV code)
Specific programme for use of the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW.
Multi-scale repeater (MASTER)
function which allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.
UNIVERSAL weight repeater
function which allows to repeat the weight of any scales, through the configuration of the input string.
Click to learn more.
RS232/C bidirectional port configurable for connection with external units.
RS485 or RS232/C bi-directional port configurable for network connection.
PROFIBUS serial interface (DGTQPB model).
2 photomosfet outputs, expandable to 6 through the C4OUT option: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.
2 optoisolator photocoupler inputs: 12÷24 Vdc, 5 mA min - 20 mA max, with configurable functions.
16-bit analogue output (DGTQAN model) 4-20mA / 0-5Vdc / 0-10Vdc at choice. Maximum load applicable on the output current: 350Ohm. Minimum load applicable on the output voltage: 10kOhm.
Weight Indicators Controller Available versions
||Transmitter for panel mounting, with 2 IN and 2 OUT. 5-key keypad, LED display, and standard weighing programme.
||Transmitter for panel mounting, with 2 IN, 2 OUT, analogue output. 5-key keypad, LED display, and standard weighing programme.
||Transmitter for panel mounting, with 2 IN, 2 OUT, Profibus. 5-key keypad, LED display, and standard weighing programme.
