AFW SERIES MULTIFUNCTION WEIGHT INDICATOR Controller DIGITAL WEIGHT TRANSMITTERMICROCONTROLLER FOR INDUSTRIAL DOSAGE

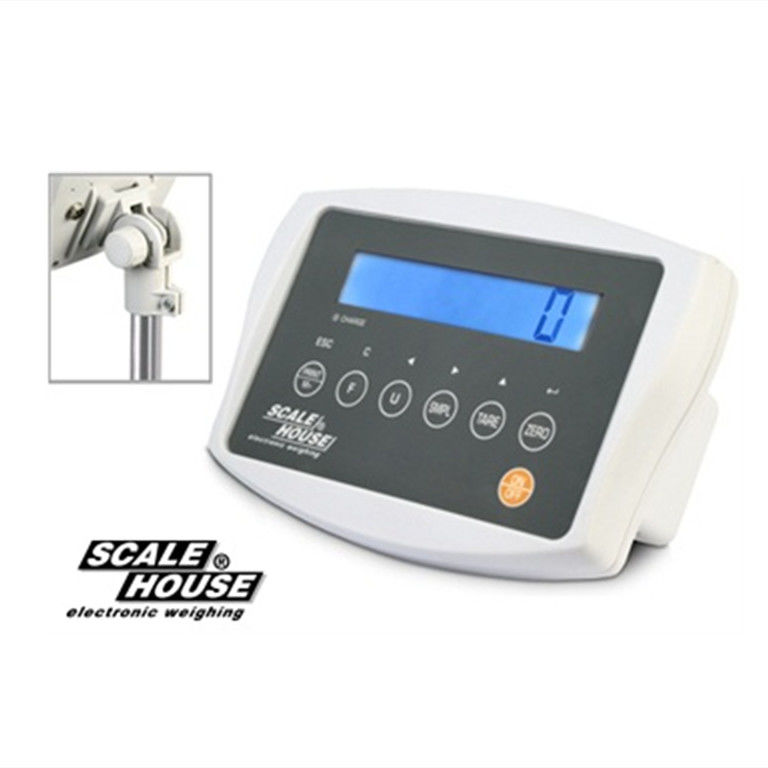

Very simple to use multifunction weight indicator in ABS. Connectable to load cell platforms; pieces counting, % weight, weight check, totalisation/formulation functions. Internal resolution of 600.000 points. CE-M approval for legal for trade use.
Backlit LCD display with 6 digits 24mm high.
Membrane waterproof keypad with 7 keys and acoustic feedback.
ABS case, fitted with support bracket with adjustable inclination, for column mounting.
Connection with up to 4 load cells (350 Ohm input resistance).
Max. 3000e in CE-M approved version for legal for trade use.
Calibration and Set-up parameters from keypad, with completely programmable capacity and division.
Rechargeable built-in battery (up to 70h battery life) and 230 Vac power adapter.
RS232/c port for connection to PC or printer.
Packaging: 340x260x230mm size – approximate weight of 2,5kg.
Upon request: connection to a platform and configuration/calibration at our premises.
weight check, with 2 thresholds and acoustic alarm;
weight totalisation, in loading or in unloading;
unit conversion: kg, g, lb, oz;
weighing filter selection;
setting range of auto-zero at the switch-on;
low battery warning.
Weight indicator: Available versions
||Multifunction weight indicator in ABS, with backlit LCD 24 mm display and 7-key waterproof membrane keypad.
