Agricultural Flush Floor Modular Weighbridge Truck Scale

Minimum Order Quantity : 10 Price : $12000-50000/PCS
Packaging Details : Split packaging Delivery Time : 5-8WEEKS
Payment Terms : T/T Supply Ability : 10+PCS+1M
Place of Origin: CHINA Brand Name: DINIARGEO/CONHON
Certification: CE Model Number: WBSA

Detail Information

Material: Carbon Steel Precision: III
CAP.: 60/100/150t SIZE: 3.4*10/12/16/18/20/14M
High Light:

14M digital truck scales


14M mobile vehicle weighing scales


60t truck scale weighbridge

Product Description

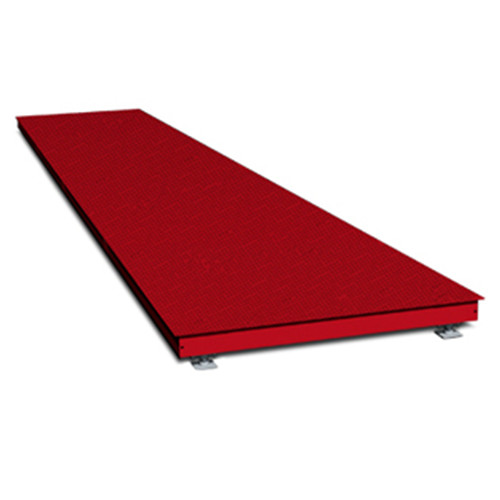

Modular new generation weighbridges, for installation flush floor to the road surface. Suitable in industrial, agricultural, and commercial fields. The standard version is fitted with CE-M 3000+3000e APPROVAL.

Agricultural Flush Floor Modular Weighbridge Truck Scale 0Agricultural Flush Floor Modular Weighbridge Truck Scale 1

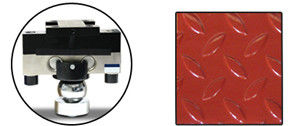

       IP68 load cells      Chequered loading surface                      WBSAA weighbridge




Agricultural Flush Floor Modular Weighbridge Truck Scale 2
  • Bearing structure formed by reinforced steel beams.
  • Sturdy load surface in very thick antislip sheet steel, which guarantees extreme rigidity with every type of vehicles.
  • Anticorrosive treatments and high-resistance painting.
  • Double shear-beam IP68 load cells, C3 precision class, EN45501 approved, complete of spherical selfcentering oscillating joints, for compensating the thermal expansions, guaranteeing safe weighs and long term accuracy.
  • The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe (version for higher loads is available upon request).
  • Inspected trapdoors for cells maintenance.
  • Reduced height (up to 370 mm from the resting surface).
  • IP68 junction box, complete of 30m connection cable to the indicator.
  • Dual range 3000 + 3000e CE-M approval.
  • Wide range of available weight indicators and accessories.



Agricultural Flush Floor Modular Weighbridge Truck Scale 2
  • Angles' kit for flush floor installation.
  • 3GD and 2GD ATEX versions upon request.
