Alloy Steel Weighbridge Platform Scale Load Cell

Minimum Order Quantity : 1 Price : Online consultation
Packaging Details : Carton Delivery Time : one week
Payment Terms : T/T Supply Ability : 100000+pc+one week
Place of Origin: CHINA Brand Name: mavin
Certification: - Model Number: NB9-D series

Detail Information

Range: 500kg、1t、2t、3t Material: Stainless Steel Or Alloy Steel
Rated Output: 2.0±0.002mv/v Product Name: Platform Scale Load Cell
Size:: 203 * 39 * 43mm Protection Class:: IP67 / IP68
High Light:

3t weighbridge load cell


Weighbridge electronic load cell


Weighbridge Platform Scale Load Cell

Product Description

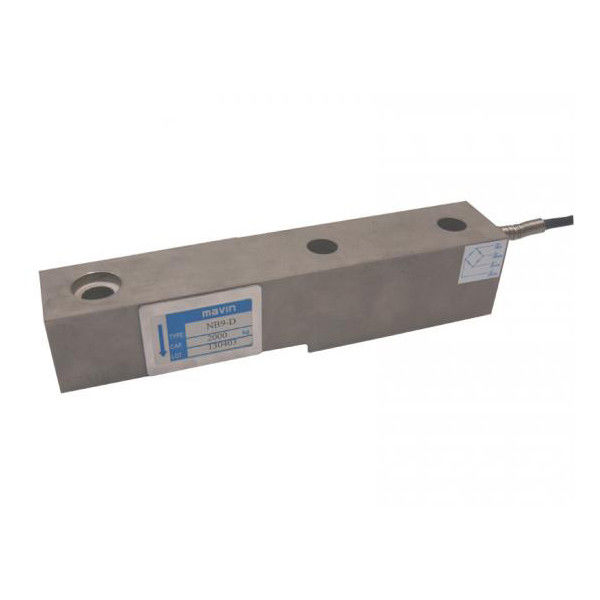

mavin NB9-D Platform Scale Load Cell Cantilever load cell Alloy steel load cell Weighbridge load cell

NB9 Platform Scale Load Cell parameters:
Range: 0.5-3t
Material: Steel Alloy
Size: 203 * 39 * 43mm
Rated output: 2.0mV / V
Protection class: IP67 / IP68
NB9 Platform Scale Load Cell main features:
The sensor elastic body is made of alloy rigid material; the surface is nickel plated; the glue is sealed.
NB9 Platform Scale Load Cell application areas:
Widely used in electronic weighing scales, hopper scales, floor scales, industrial weighing systems and other weighing force measuring equipment
NB9 Platform Scale Load Cell size picture:
Alloy Steel Weighbridge Platform Scale Load Cell 0
Technical parameters of NB9 Platform Scale Load Cell:
Rated load 0.5,1,2,3(t)
Rated output 2.0 mV/V±0.25%
Zero balance ±0.0200 mV/V
Non-linear 0.03 %R.O.
Lag 0.03 %R.O.
Repeatability 0.03 %R.O.
Creep (30 minutes) 0.03 %R.O.
Zero return (30 minutes) 0.03 %R.O.
Safe overload rate 150 %R.O.
Limit overload rate 200 %R.O.
Output temperature effect 0.002 %R.O./℃
Zero temperature effect 0.003 %R.O./℃
Input constant 390±15 Ω
Output gain 350±5 Ω
Insulation resistance ≥5000 MΩ/(50VDC)
Recommended working voltage 5~12 VDC
Maximum working voltage 15 VDC
range of working temperature -20~60 ℃
Texture alloy steel
Protection class IP67 / IP68
cable φ5×4m
Recommended countertop size
Wiring Red: Power +, Black: Power-,
Green: Signal +, White: Signal-

We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
