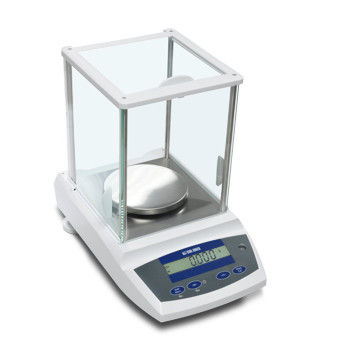

ALP Series Analysis "Top Load" Scale High Precision Electronic Precision Balance Laboratory Analytical Balances
High performance analytical scale, compact and versatile, fitted with windscreen. Suitable for laboratories, pharmacy and industrial applications.
The multifunctional program adds to the weigh function high precision conversion and counting. The serial port RS232 allows to transmit the data to pc or printer (for traceability or further elaborations), or also to intelligent weight repeater in order to carry out dosage, statistical control or other advanced functions.
Fitted with internal auto-recalibration system. CE-M approvable for legal trade use.
DIVISION (g): 0.001. CAPACITY (g): 510.
LCD display with 7 digits of 15mm.
Waterproof membrane keyboard, with 4 keys.
Construction: bearing structure in aluminium, ABS case.
Weight detection through electromagnetic balance load cell.
All models are fitted with automatic recalibration system.
Stainless steel plate, Ø 120mm (ALP513).
Fitted with glass windscreen, level, and adjustable feet.
Working temperature: +10...+40°C (Humidity 10%...80% without condensation).
RS232/c port for connection to PC, 3590E series indicator or printer.
- Scale: (lxwxh) 320x195x290mm - approximate weight 5kg.
- Packaging: (lxwxh) 515x395x540mm - approximate weight 8kg.
Power supply: standard fitted with 100-240 Vac 50Hz – 12Vdc power adap
Units of measure conversion:
- not approved: mg, g, kg, ct, oz, N, grain, dwt, tical, tola, mom
me, baht, mesghal, ozt, teal or customised;
- approved: mg, g, kg, ct (upon request when ordering).
||Ø 120 mm
