Anti Rotation Truck Scale 50t Rice Lake Load Cell

Minimum Order Quantity :	1	Price :	Online consultation
Packaging Details :	Carton	Delivery Time :	one week
Payment Terms :	T/T	Supply Ability :	100000+pc+one week

Place of Origin:	Italy	Brand Name:	RICE LAKE
Certification:	-	Model Number:	RL5416

Detail Information
Range:	20t, 30t, 40t, 50t.	Combined Error:	0,02 %F.S.
Product Name:	Truck Scale Load Cells	Material & Plate:	Stainless Steel
Zero Balance::	+/-1% F.S.	Perating Temperature Range::	O -30°C/+70°C
High Light:	50t universal load cell , rice lake weigh hopper load cells , 50t weigh hopper load cells

Product Description

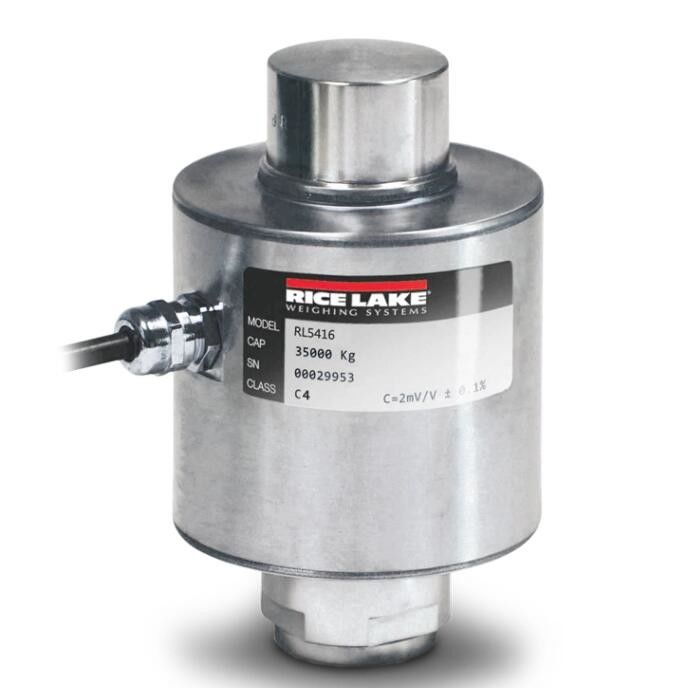

RICE LAKE CANISTER LOAD CELL, IN STAINLESS STEEL, “RL5416” SERIES Truck Scale Load Cells

Canister load cells for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, IP69K protection degree, 4000 divisions.
CAPACITIES: 20t, 30t, 40t, 50t.
OIML R60. C4 precision class.
Stainless steel body. IP69K Protection Degree.
20 m Cable.
h= 150mm.

TECNICAL FEATURES
METROLOGICAL FEATURES
Rated capacity: (F.S.): 20 t, 30 t, 50 t
Combined error: 0,02 %F.S.
Creep error (after 30 min.): 0,02 %F.S.
Temperature effect on zero: 0,003 %F.S./°C
Temperature effect on sensitivity: 0,0008 %F.S./°C

OIML R60
Vmin= Emax/18000
Accuracy class: C4
Max. number of intervals: 4000e OIML

ELECTRONICMECHANICAL FEATURES
Gas dischargers to protect against atmospheric discharges
Power Supply: 5...15 Vdc
Rated output at F.S.: 2 ± 0.1% mV/V
Input resistance: 800 ± 3Ω
Output resistance: 700 ± 3Ω
Insulation resistance: 5000MΩ
Operating temperature: -20 ~ +70 °C
Compensated temperature for homologation: -10 ~ +40 °C
Storage temperature limits: -40° ~ +80°
Safe load limit: 120% F.S.
Ultimate overload: 150% F.S.
IP69K protection degree
Stainless steel body
6-core cable, l= 20 m
Nickel plated steel cable gland
Self-centring spherical bases
Equipped with anti-rotation system, to be combined with 173793 cups for proper operation

CONNECTION

Cable Color Code
RED	INPUT +
BLACK	INPUT -
VERDE	OUTPUT +
WHITE	OUTPUT -
YELLOW	SENSE +
BLUE	SENSE -
METAL	Shield

INSTALLATION KIT
The 173793 kit allows a correct installation of the RL5416 load cells below the weighbridge plate.

The kit consists of an upper cup and a lower cup with anti-rotation system. All components are made from stainless steel. Both cups are designed for optimal operation in conjunction with the cell’s self-centring spherical bases, allowing their proper oscillation and return to position.

Available versions

	Code	Max (kg)
	168084	20 000
	168087	30 000
	168089	40 000
	168090	50 000

Assembly kits

	Code	Description
	173793	Kit of 2 jointed cups for selfalignment, in stainless steel. For RL5416xx load cells.

Junction Box / Boards - Cell cables

	Code	Description
	JB10Q	Equalisation box for connection with up to 10 analogue load cells. Reinforced polyester box, with 10 + 1 fairleads. With UL marked PCB, Terminal block, plastic box and labels (if expected).
	LCCB	Shielded 6x0,25 mm² cable (suitable for Ex zones). €/m

Protection for junction box/electronic circuits

	Code	Description
	GELBOX	(S1) Anti condensation, insulating, and sealing gel. Useful for the protection of the electronic circuits of the weighing system, even in conditions of prolonged immersions in time. Pack of 300ml.
