Carbon Steel 6 Digits LED 150t Weighbridge Truck Scale

Minimum Order Quantity : 1 Price : Online consultation
Packaging Details : Carton Delivery Time : one week
Payment Terms : T/T Supply Ability : 100000+pc+one week
Place of Origin: CHINA Brand Name: CONHON
Model Number: CHD-Y

Detail Information

Product Name: Weighbridge Truck Scale Range: 50t,80t,10t, 120t,150t,200t
Accuracy: Excitation Voltage:: 5VDC
Material: Carbon Steel Display Mode:: 6-digit LED
High Light:

150t mobile truck scale


150t wheel loader scales


150t electronic truck scale

Product Description

CHD-Y Weighbridge Truck Scale Mobile electronic truck scale Analog electronic truck scale

The CHD-Y Weighbridge Truck Scale does not need to be a foundation. It comes with a double-sided slope guide and four moving rollers, which is convenient and quick to use. The weighing platform adopts a hydraulic lifting mechanism, which can be raised when not in use and lowered when moving. High-strength structural scale body, suitable for various harsh environments, has good performance in waterproof, lightning protection, anti-cheating, remote control, compression and impact resistance.
CHD-Y Weighbridge Truck Scalestructure:

Weighing platform using military floating bridge technology, tightly combined with weighing platform, can be flipped on the platform of the scale when moving, easy to move;

U-shaped steel group welding all-steel weighing platform with strong impact resistance;

High-performance dedicated weighing instrument;

Unique weighing platform hydraulic lifting system and super heavy-duty moving wheels ensure light and flexible movement of the weighing platform;

High-precision load cell, detection accuracy can reach: static ± 2% FS, dynamic ± 2% FS;

Optional micro-printer meter (can print weighing scales and daily reports, including time, date, gross weight, net weight, tare weight).

CHD-Y Weighbridge Truck Scaleparameters:

Display mode: 6-digit LED display, word height 30mm;

Sensor ambient temperature: -20— + 40 degrees;

Ambient temperature of weighing instrument: 0— + 40 degrees;

Ambient humidity: <90% RH, but no dew condensation should occur;

Truck scale rated power: <5W;

Maximum weighing ≤50t; maximum table length ≤9m; weighing accuracy class III;
Description of mobile electronic truck scale:

The mobile truck scale needs to be used on a flat concrete floor, and the thickness of the concrete floor is generally not less than 200mm;
It is especially suitable for seasonal use occasions such as grain depots and fruit farms;

In use, pay attention to the relative positions of the scale body, the slope guide and the rollers to ensure that they do not touch;

CHD-Y Weighbridge Truck Scale specification:

Maximum 50T 80T 100T 120T 200T
Accuracy 5kg 1kg 1kg 1.5kg 5kg
Table size


Note: Any non-standard size can be customized according to your requirements

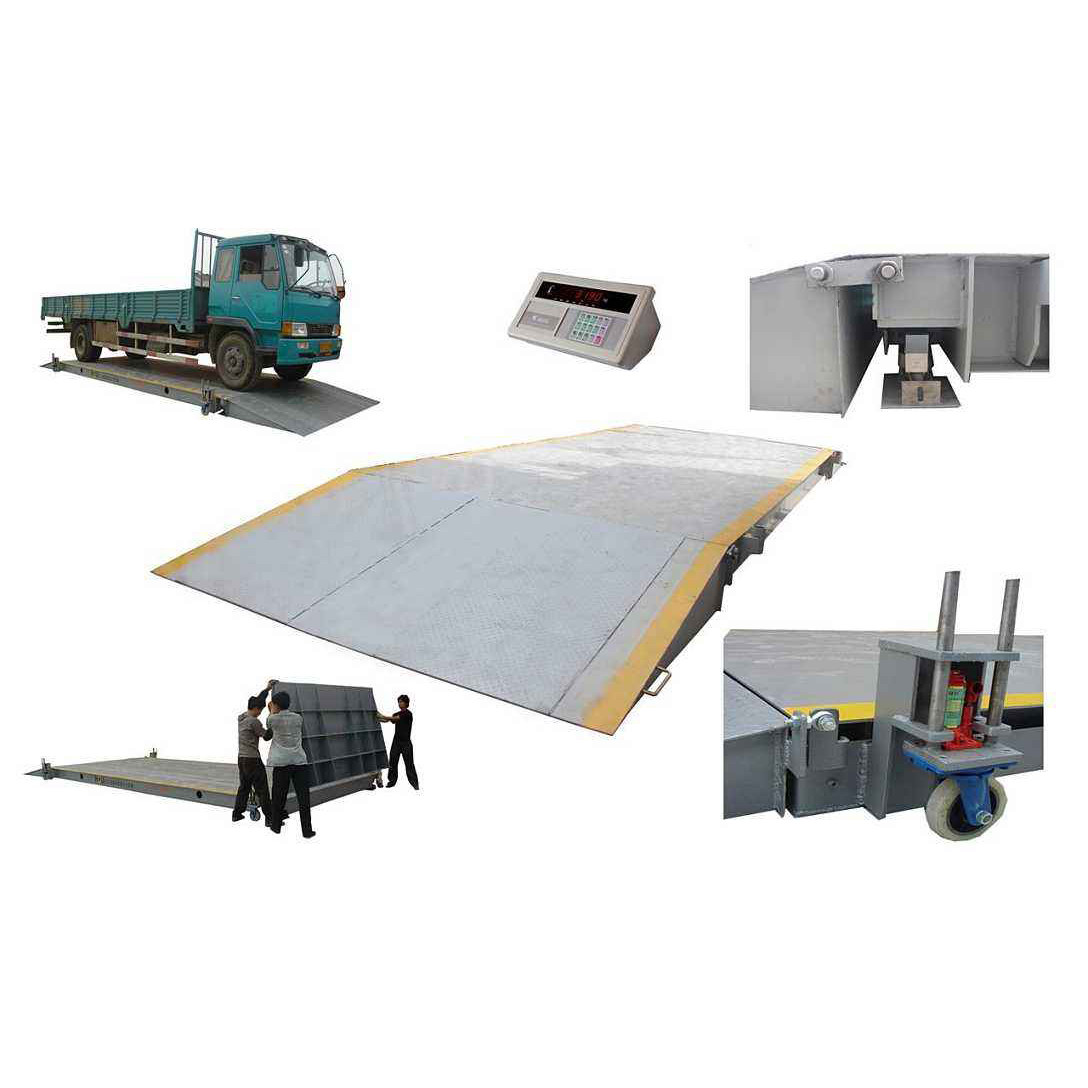

Mobile electronic truck scale Installation picture on site:

Carbon Steel 6 Digits LED 150t Weighbridge Truck Scale 0Carbon Steel 6 Digits LED 150t Weighbridge Truck Scale 1Carbon Steel 6 Digits LED 150t Weighbridge Truck Scale 2


We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
