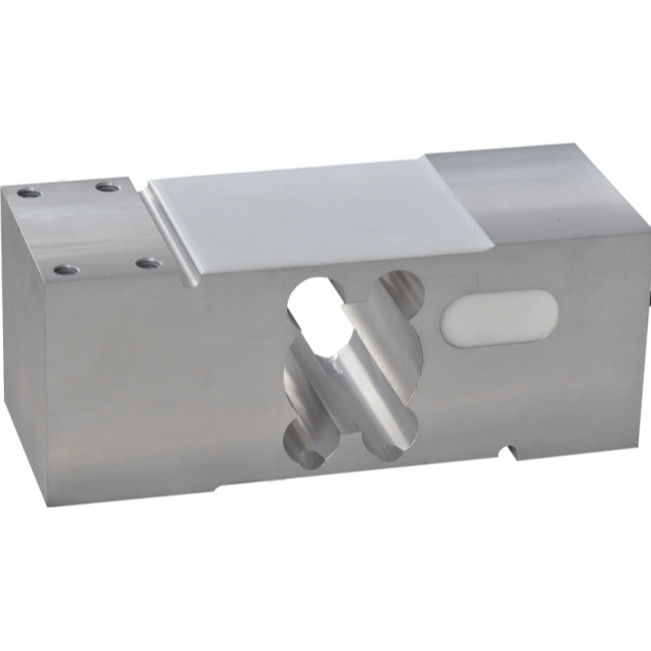

CHCO-8 Digital Shipping Weighing Truck Scale Load Cells

Minimum Order Quantity : 100 Price : ¥800-10000/pcs
Delivery Time : 2-4weeks Payment Terms : T/T
Supply Ability : 99999+pc+1m
Place of Origin: CHINA Brand Name: zemic
Certification: CE Model Number: CHCO-8

Detail Information

Output Resistance: 703 ± 4 Zero Balance: 1.0
Temperature, Compensated: -10~+40 ℃ Output Sensitivity: 2.0 ± 0.02
Operating Temperature Range: -35~+70℃ Output Impedance: 350±3Ω
High Light:

OIML C3 waterproof load cell


OIML C3 column load cell


OIML C3 Truck Scale Load Cells

Product Description

Digital Load Cell for Digital Type Shipping Scale


Packaging & Delivery
Packaging Details
Standard export package.
Shanghai, Shenzhen


Zonjli Digital Load Cell for Analog Type Weighing Scales/ Weighbridges


Single Beam Load Cell

DZHM-66JL Digital type weighing load cell can meet 50KG ~ 500KG measurement range of weighing

Single shear beam structure design makes the installation and use more convenient.

Suitable for electronic bench scale, floor scale and other kinds of electronic weighing equipment


Parameters of Zonjli Digital load cell DZHM-66JL


Item Technical Parameter Parameter value
1 Rate Weighing 50/ 100/ 150/ 200/ 250/ 300/ 500Kg
2 Accuracy Grade OIML C3
3 Comprehensive Error ≤±0.02%F.S
4 Creep(30 minutes) ≤0.0167
5 Effect of temperature on the zero output ≤±0.020F.S/10
6 Effect of temperature on the sensitivity of the output ≤±0.0175%F.S/10
7 Temperature Compensate Range -10~+40
8 Operating temperature Range -35~+70
9 Recommended Excitation Voltage 5-12(VDC)
10 Max. Excitation Voltage 18(VDC)
11 Safety Overload Range 150%FS
12 Limit Overload Range 300%FS
13 Corner Load Error 0.02% loading weight /100mm
14 Input Impedance 406±6Ω
15 Output Impedance 350±3Ω
16 Insulation Impedance 5000 mΩ(50V DC)
17 Zero point output 2%F.S.
