DGTPF Bidirectional Port Sigma Delta Weighing Scale Display

Minimum Order Quantity :	1	Delivery Time :	2-4week
Payment Terms :	T/T	Supply Ability :	999+pc+1m

Place of Origin:	Italy	Brand Name:	Diniargeo
Certification:	CE	Model Number:	DGTPF

Detail Information
Analogue Output:	4-20mA, 0-5Vdc Or 0-10Vdc	Photomosfet Outputs:	150 MA 48 Vac / 150 MA 60 Vdc（NO）
Optoisolator Photocoupler Inputs:	12÷24 Vdc, 5 MA Min - 20 MA	Model:	DGTPF
Drand:	DINIARGEO	Packaging:	143,5 X 72 X 129mm
High Light:	Bidirectional Port microcontroller , Sigma Delta weighing scale display

Product Description

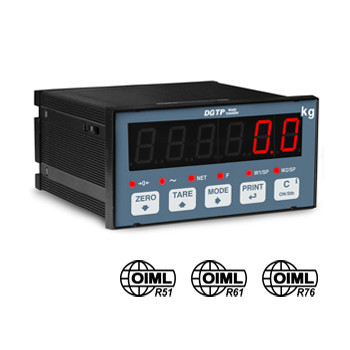

Weight Indicators ControllerDIGITAL WEIGHT TRANSMITTER "DGTPF": MICROCONTROLLER FOR INDUSTRIAL DOSAGE

SYSTEMS

High performing microcontroller for panel mounting; through simple programming of the parameters, it offers the possibility to manage single product dosage systems in loading or in unloading, or multiproduct dosages and mixtures.

MAIN FEATURES

Easy to use 5-key waterproof keyboard.

Highly efficient red LED display with 6 20-mm digits and 6 LEDs for showing active functions.

Case for panel mounting. Dimensions: 143,5 x 72 x 129mm(lxhxw). Drill template: 136,5 x 67,5 x 140mm (lxhxw).

A/D 24-bit sigma-delta conversion with 4 channels, up to 200 conv./sec. autoselect.

Management of a weighing system from 1 to 4 channels (cells) with digital equalization.

Connectable with up to 16 analogue load cells with 350 Ohm input resistance.

Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.

Calibration, Set-Up parameters, configurable from keyboard or PC with Dinitools.

Up to 8 signal linearization points with DINITOOLS (3 from keypad).

Time Date.

Memory back-up for recording dosage data in case it’s accidentally turned off.

Printing the dosage and consumption data.

From 12 Vdc to 24 Vdc power supply.

MAIN CERTIFICATIONS

EU Type Examination Certificate (45501:2015)

OIML R76

OIML R61 - MID

OIML R51

I/O SECTION

1 RS232/C or RS485 bidirectional port configurable for connection to PC or external units.

1 RS232/C bidirectional port configurable for connection to printer.

Six 150 mA 48 Vac / 150 mA 60 Vdc (NO) photomosfet outputs configurable according to the selected dosage function.

Four 12÷24 Vdc, 5 mA min - 20 mA max inputs (optoisolator photocouplers) with functions dependent on the selected dosage function.

Analogue 16 bit output (only for DGTPFAN model), configurable as 4-20mA, 0-5Vdc or 0-10Vdc. Maximum load applicable on the output current: 350Ohm. Minimum load applicable on the output voltage: 10kOhm.

DOSAGE CONFIGURATION

Available dosage functions:

	Single product dosage in loading functioning
	Single product dosage in unloading functioning
	Multi-product dosage functioning

Weight Indicators Controller Available versions

	Code	Description
	DGTPF	Microcontroller for dosage with 4 IN and 6 OUT. 5-key keypad and LED display.
	DGTPFAN	Microcontroller for dosage with 4 IN, 6 OUT and analogue output. 5-key keypad and LED display.
