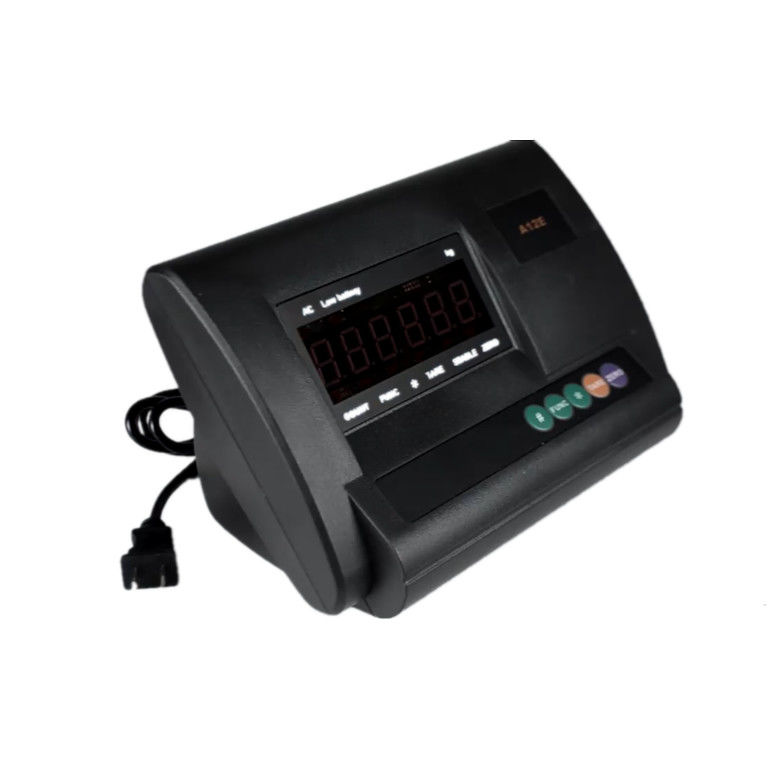

Diniargeo Dgt4x 120Hz 24bit AD 4 Channel Weighing Scale Indicator

Minimum Order Quantity : 100 Price : ¥800-10000/pcs
Delivery Time : 2-4weeks Payment Terms : T/T
Supply Ability : 999+pc+1m
Place of Origin: Italy Brand Name: Diniargeo
Certification: CE Model Number: DGT4X

Detail Information

Voltage: 12-24Vdc Converter: 24 Bit AD 4 Channel
Conversion Rate: Up To 3200 Conv./sec Selectable Sampling Rate: Up To 2600 Conv./sec
Model: Diniargeo Dgt4x Fieldbus Update Rate: 120 Hz
Load Cells Connection: 4 Or 6 Wires
High Light:

120Hz Weighing Scale Indicator


24bit Weighing Scale Indicator


Diniargeo dgt4x

Product Description

120 Hz 24 bit AD 4 channel Weighing Scale Indicator​
  • DGT4X is a force value indicator. Has a gross, net, peak, valley display can be switched at any time.
  • 4-way comparison output, optional six kinds of alarm mode peak valley as using two comparison values limit. Was weight peak exceeds the peak threshold value comparison. Comparing the valley value when real weight less than Valley threshold.
  • Function: Automatic zero tracking, Sentenced stability function, power on automatically cleared..
  • Indicator Definition: 12 lights, alarm 1 and alarm 2, stability, Gross, Net, Peak, Valley, Zero, kN, g, kg, t.
What's new compared to DGT4 Weighing Scale Indicator
New cutting-edge processor, able to process up to 2600 weight readings per second. The high speed allows an extremely accurate weight filtering even with weighing times in the order of milliseconds.
New cell feed circuit for greater weighing stability.
Power supply circuit with protections, specific for industrial environments.
Removable terminal blocks to simplify wiring in the electrical panel.
Frontal micro-USB communication port for configuration, diagnostics and data backup.
XSPEED TOOL: New PC software with oscilloscope function for system diagnostics and weighing filter optimization.
14.2 mm display.
New configuration menu to simplify calibration and configuration.
RS485 communication port always available on all versions.
Up to 120 fieldbus updates per second.

Weighing Scale Indicator ONBOARD WEB SERVER
The integrated WEB SERVER allows complete diagnostics, calibration and remote configuration of the weight transmitter from the Ethernet network.

Weighing Scale Indicator PC XSPEED TOOL SOFTWARE
Specific program for PC, designed to improve the performance of any weighing system.
Customization of the weighing filter, to maximize the speed and accuracy of the weighs in static and dynamic applications.
Graphical weighing analysis for the identification of mechanical disturbances and vibrations.
Our Weighing Scale Indicator TECHNICAL FEATURES
Power supply: 12-24Vdc
Converter: A/D 24 bit with 4 channel
Max scale number: 4
Load cells connection: 4 or 6 wires (with sense)
Operating modes:
- Digital junction box
- Multi-scale transmitter
- Single-scale transmitter
Conversion rate: up to 3200 conv./sec
Selectable sampling rate: up to 2600 conv./sec
Fieldbus update rate: up to 120 Hz
Displaying: up to 1.000.000d
Signal sensitivity: 0,03 µV/d (0,3 µV/e)
Resolution: 3.000.000 counts
Linearization: up to 8 points
Connectable load cells: up to 16 350 Ω cells
Fieldbus: Profibus, Profinet, EthernetIP, EtherCAT, EthernetIP, CANopen, DeviceNet, Modbus TCP/IP.
Serial ports:
- 1 Micro-USB port (device) for PC configuration with "Dinitools®" and "XSpeed Tool".
- 1 RS485 port
- 1 RS232 port (Mod. DGT4X / DGT4XAN)
Analog output: 16 bit (DGT4XAN Model) 4-20mA or 0-10Vdc.
Digital outputs: n. 2 configurable OUTPUTS
Digital inputs: n. 2 configurable INPUTS
- OIML R76 (10000e or 3000 + 3000e) / R51 / R61 MID
- UL Listed (upon request)
- EU Type Examination Certificate (45501:2015)
Case: ABS, for Din bar (106 x 56 x 118 mm)
- Theoretical (mVV)
- With sample weights
- Remotely by WEB SERVER
- From the keyboard
- From PC with "Dinitools"
Keyboard functions:
Zeroing, Tare, Function mode, Manual data printing/sending, ON/Stand-by
Program functions:
Setpoint, High resolution, Peak, Alibi Memory, Unit of measure conversion
Keyboard: mechanical with 5 digits
Display: 14,2mm red LED
UL certified version
