Easy Pesa 2GD Stainless Steel Industrial 15kg Explosion Proof Scale

Minimum Order Quantity : 1 Delivery Time : 2-4week
Payment Terms : T/T Supply Ability : 100+pc+1m
Place of Origin: Italy Brand Name: CONHON
Certification: CE Model Number: Easy Pesa 2GD

Detail Information

Range: 15kg 30kg 60kg 150kg Warranty: 1 Year,12 Months
High Light:

15kg electronic platform weighing scale


500 mm electronic platform weighing scale


IP67 electronic platform weighing scale

Product Description

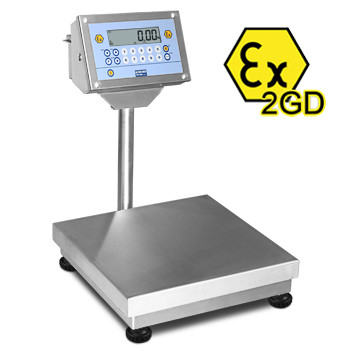

High-precision stainless steel scale "Easy Pesa 2GD" series, industrial explosion-proof electronic scale


Fully stainless steel bench scales, for specific use in ATEXhazardous areas. Powered by a long lasting rechargeable battery which allows an easier installation directly where it's needed. These scales don't need a power supply socket in dangerous zone nor ATEX proof power supply cables. Provided with the ATEX declaration of conformity. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197°C Db X protection.


Approved “single point” STAINLESS STEEL load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards.
ATEX approved load cell with ATEX protection:
ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga.
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.

Structure, enclosure and loading plate made in AISI304 satin finish stainless steel.

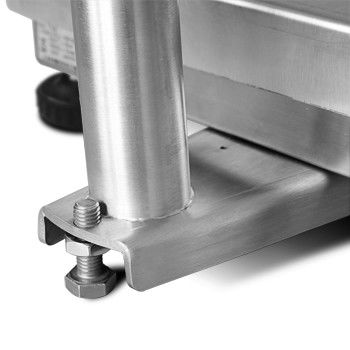

Adjustable levelling feet with plastic over shoe.

Supplied with support column, height:
- 500 mm in the "Q" models;
- 700 mm in the "X" models.


IP68 Weight indicator for ATEX zones with protection methods according to:
ATEX II 2(2)G Ex ib [ib Gb] IIC T4 Gb for gases.
ATEX II 2(2)D Ex tb [ib Db] IIIC T197°C IP65 Db for dust.

EC-Type-Examination certificate according to Annex III (ATEX directive). CE-M approvable (OIML R-76 / EN 45501).

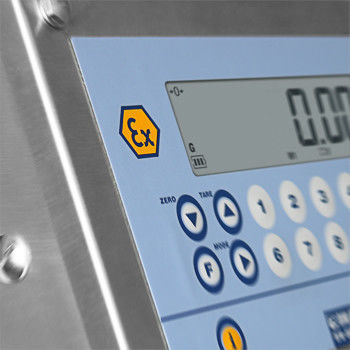

Waterproof 17-key numerical and functional keyboard.

LCD display with 6 25-mm high contrast digits, clearly visible even in poor lighting conditions and with low temperatures, and with 6 LEDs for showing the active functions.

Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.

Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.

A/D 24-bit sigma-delta conversion, up to 100 conv./sec. autoselect.

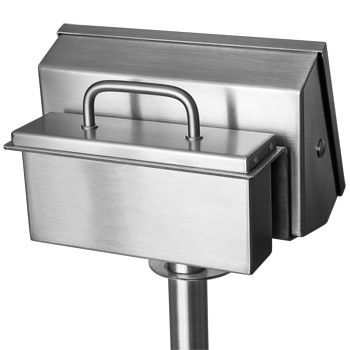

Power supply through external battery pack with 160h operating time. An extra battery pack for continuous use (24/7) is available as option.

Charger included in the supply.



Automatic tare

Presettable tare

Selectable function command

On/off switching.


High Resolution Weighing x 10

Net/Gross or lb/kg conversion

Weight totalization

Formula weighing

+/- Checkweighing

Counting (Max. resolution of 1.500.000 divisions)


The price includes the ATEX declaration of conformity (DCATEX2GD) and the load cell certificate of conformity (CCATEX).

Available versions

Max (mm)
Easy Pesa 2GD Stainless Steel Industrial 15kg Explosion Proof Scale 0
Easy Pesa 2GD Stainless Steel Industrial 15kg Explosion Proof Scale 0
2R (g)*
d HR
  EPQI2GD15B 400x400 15 2 5 2/5 1
  EPQI2GD30B 400x400 30 5 10 5/10 2
  EPQI2GD60B 400x400 60 10 20 10/20 5
  EPQI2GD150B 400x400 150 20 50 20/50 10
  EPXI2GD60B 600x600 60 10 20 10/20 5
  EPXI2GD150B 600x600 150 20 50 20/50 10
  EPXI2GD300B 600x600 300 50 100 50/100 20

(*) These divisions are obtainable only with the relative options
