Electronic Platform Waterproof Bench Weighing Scale
Contact Person : Peter
Phone Number : +86-13764443932
WhatsApp : +8613764443932
400×400mm commercial bench scales,
IP67 commercial bench scales,
400×400mm electronic bench scale

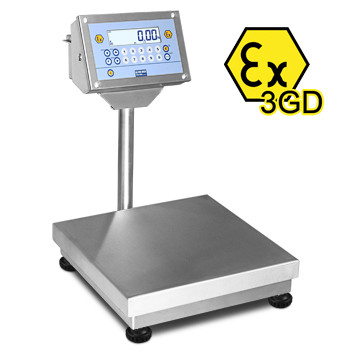

Stainless steel scale "Easy Pesa 3GD" for industrial plants
Fully stainless steel bench scales, for specific use in ATEX hazardous areas. Powered by a long lasting rechargeable battery which allows an easier installation directly where it's needed. These scales don't need a power supply socket in dangerous zone nor ATEX proof power supply cables. Provided with ATEX declaration of conformity. Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115°C Dc X.
Approved “single point” STAINLESS STEEL load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards.
ATEX approved load cell with ATEX protection:
ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga.
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65
Structure, enclosure and loading plate made in AISI304 satin finish stainless steel.
Adjustable levelling feet with plastic over shoe.

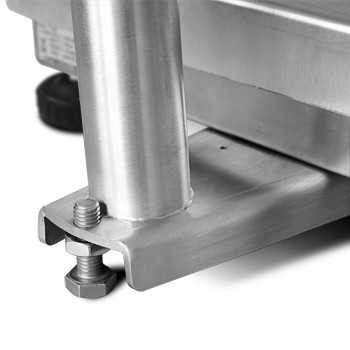

Supplied with support column, height:
- 500 mm in the "Q" models;
- 700 mm in the "X" models.

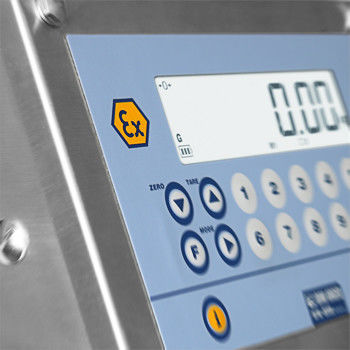

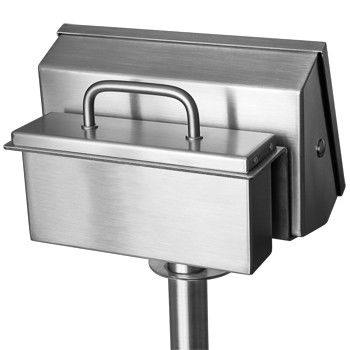

WEIGHT INDICATOR FEATURES
IP68 Weight indicator for ATEX areas with protection methods according to:
ATEX II 3G Ex nR IIC T6 Gc X for gases.
ATEX II 3D Ex tc IIIC T130°C Dc IP68 X for dust.
EC-Type-Examination certificate according to Annex III (ATEX directive). CE-M approvable (OIML R-76 / EN 45501).
Waterproof 17-key numerical and functional keyboard.
Backlight LCD display with 6 25-mm high contrast digits, clearly visible even in poor lighting conditions and with low temperatures.
Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.
Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.
Power supply through external battery pack with 100h operating time. It's possible to buy another battery pack for continuous use (24/7).
Charger included in the supply.
Selectable function command
SELECTABLE FUNCTIONING MODE
High Resolution Weighing x 10
Net/Gross or lb/kg conversion
Counting (Max. resolution of 1.500.000 divisions)
The price includes the ATEX declaration of conformity (DCATEX3GD) and the load cell certificate of conformity (CCATEX).
