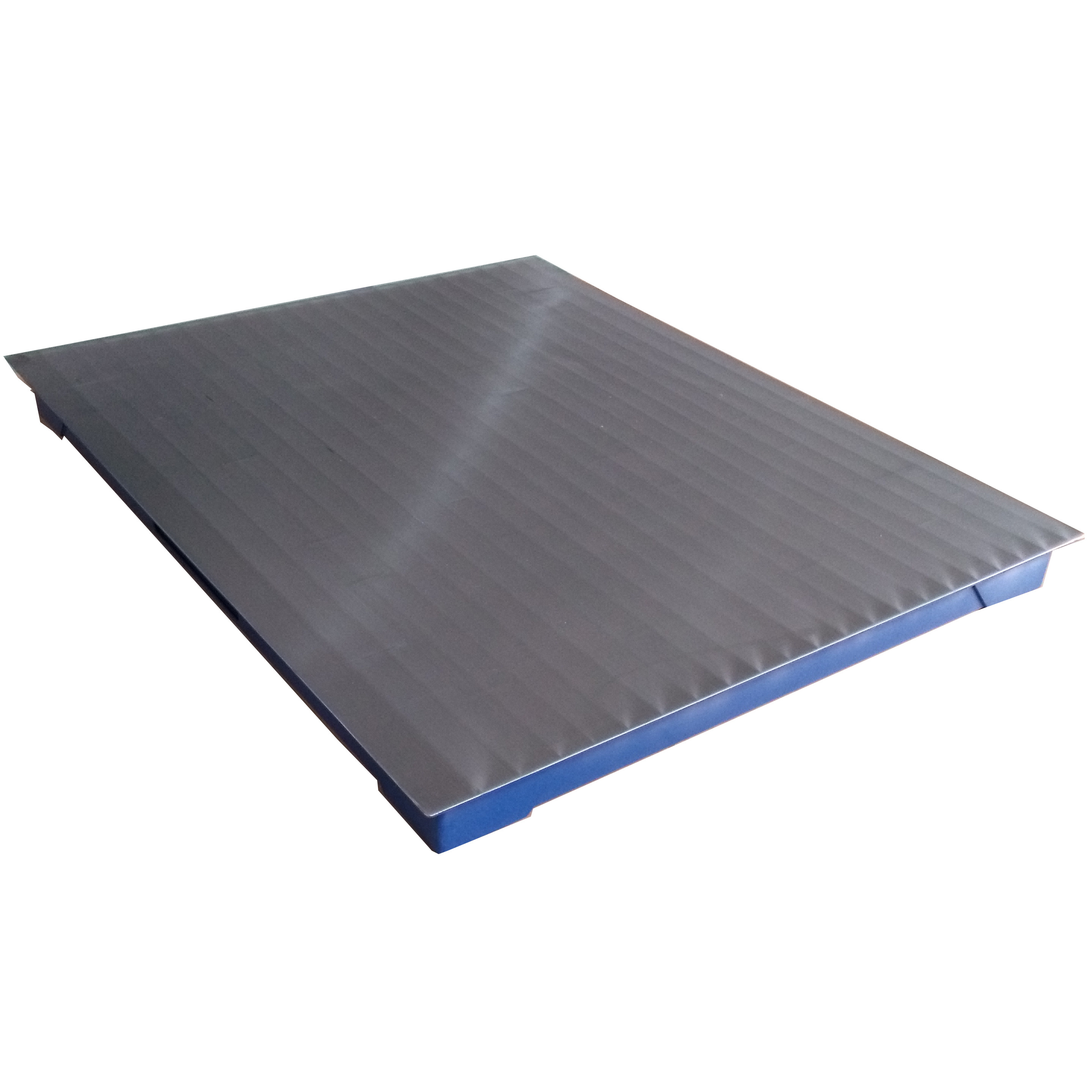

Flameproof 5V DC Small 600KG Explosion Proof Scale

Minimum Order Quantity : 1 Price : Online consultation
Packaging Details : Carton Delivery Time : one week
Payment Terms : T/T Supply Ability : 100000+pc+one week
Place of Origin: CHINA Brand Name: CONHON
Model Number: CHP-EX

Detail Information

Product Name: Explosion Proof Scale Range: 600KG-5000KG
Accuracy: 0.2kg-1kg Explosion-proof Grade: Ex Ia II BT5
Accuracy Class: : III Excitation Voltage:: 5VDC
High Light:

600KG electronic platform scale


5V DC electronic platform scale


600KG digital platform scale

Product Description

CHP-EX Explosion Proof Scale  Explosion-proof electronic small scale Explosion-proof electronic platform scale

Explosion-proof electronic small scale

Explosion-proof grade: Ex ia II BT5

Explosion-proof category: intrinsically safe type (optional: flameproof type)

Technical parameters of explosion-proof electronic small scale:

Accuracy class: III

Display: LCD with backlight

AD conversion: Σ- △, 24bit

Resolution: Display 50,000 Internal Code: 2,000,000

Minimum resolution: 0.3μV / d

Excitation voltage: 5VDC

Input signal range: -30mv ~ 30mv

Working power: AC / DC intrinsically safe power supply or intrinsically safe battery pack 7.2V4.8Ah

Working environment temperature: -10 ~ 40 ℃

Humidity: ≤85% R.H

Structural features of explosion-proof electronic small scale

U-shaped steel group welding structure, high strength design

Material: carbon steel or stainless steel, pattern steel or flat panel

Carbon steel weighing platform: paint or galvanized

Stainless steel surface: polished, brushed

Four high-precision shear beam sensors

Explosion-proof electronic small floor scale product features:

Basic functions: weighing, counting, zeroing, tare, stepwise, printing;

Extended functions: animal weighing, holding, sorting, check weighing, upper and lower limit alarms, etc .;

Optional function: RS232 / RS485, Modbus, analog output (4 ~ 20mA, 0 ~ 5V)

Explosion-proof electronic small scale product specifications:

Product name explosion-proof electronic small scale
Product number CHP-EX
Weighing platform height 12cm
Table size



Note: Any non-standard size can be customized according to your requirements

Maximum 600kg 1000kg 2,000kg 3,000kg 5000kg
Accuracy 0.2kg 0.5kg 0.5kg 0.5kg
