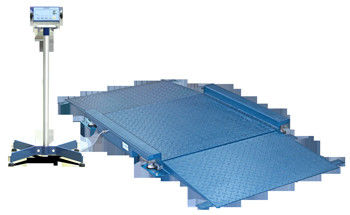

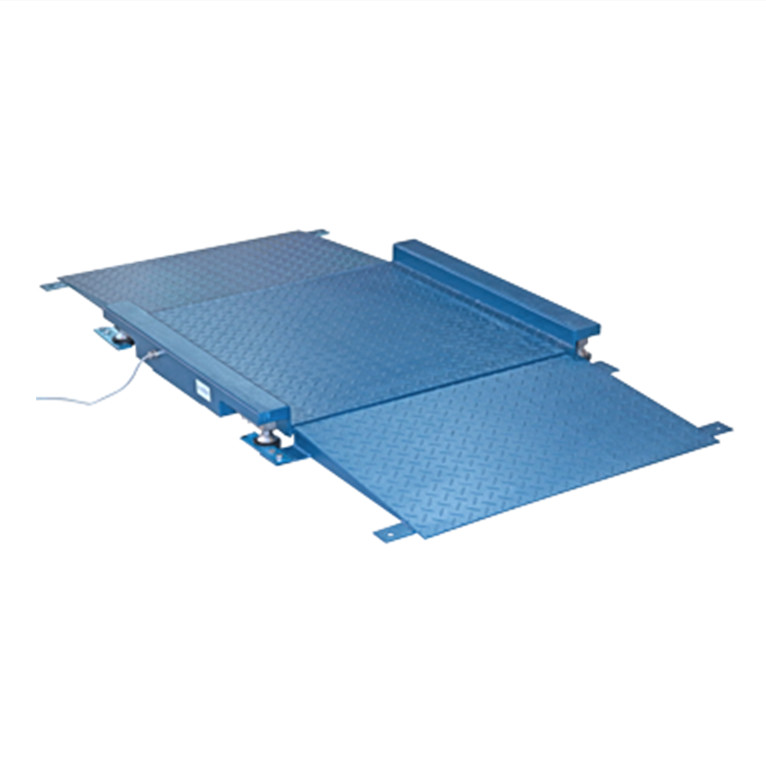

FLP Thin Platform Two Tons 500mm Ramps In Floor Scale

Minimum Order Quantity : 1 Delivery Time : 5-8week
Payment Terms : T/T Supply Ability : 999+pc+2m
Place of Origin: Italy Brand Name: Diniargeo
Certification: CE Model Number: FLP

Detail Information

Range: 600kg 1500kg 2000kg Power Supply: 15Vdc
High Light:

500mm Ramps portable platform scale


500mm Ramps portable pallet scale


500mm Ramps home floor scales

Product Description

"FLP" series of thin platform scales with slopes Two tons of ground scales Industrial explosion-proof electronic floor s
Low profile platforms, with 500 mm ramps, painted steel structure and chequered load surface. Ideal for weighing trolleys and pallet trucks thanks to the on/off ramps on both sides as well as the sideboards. The standard version is provided with approved load cells.
Fitted with 4 shear-beam 350Ohm nickel-plated steel load cells, approved according to OIML R60 C3 standards (3000 divisions), IP67 protection degree. Chequered steel structure and load surface, oven-fire painted, RAL 5007 blue.
Adjustable, anti-shock jointed feet and level.
Power supply from 5 to 15 Vdc.
Hermetic junction box, IP67 wiring with shielded 5m long cable for connection to the indicator.
Fitted with sideboards and double on/off ramps.
Upon request:
- platform calibration service with weight indicator;
- 3000e CE-M approval (with first Periodic Check included, 3 years validity), to be combined always to the calibration service;
- support column for indicator.
Available versions
l x w x h
Nr. of cells Max
FLP Thin Platform Two Tons 500mm Ramps In Floor Scale 0
  FLPC-1 800x800x52 4x250kg 600 200 200
  FLPA-1 1000x1250x52 4x2000kg 1500 500 500
  FLPB-1 1250x1500x52 4x2000kg 2000 1000 1000
