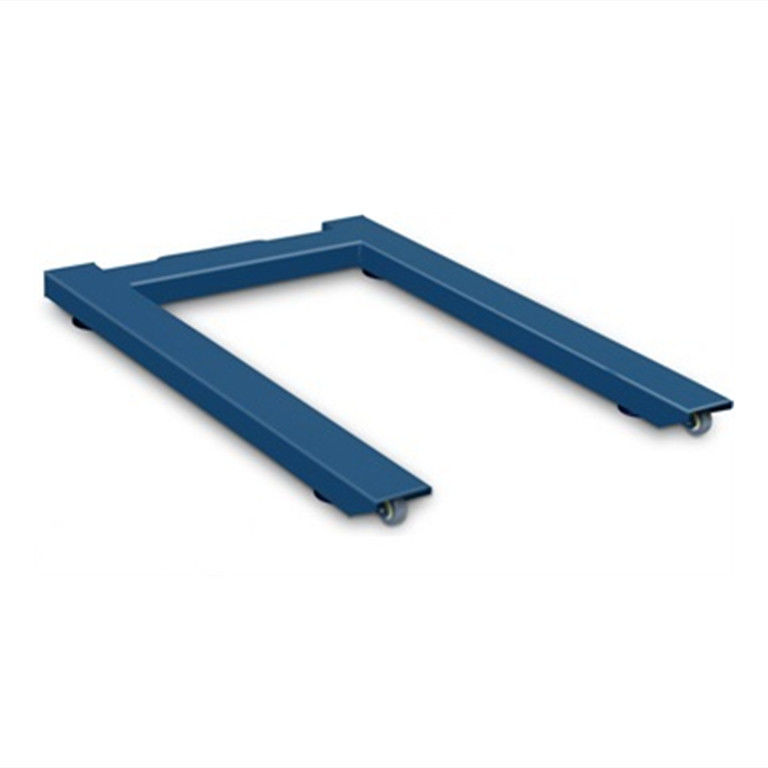

FPW Shock Proof Stainless Steel 3000kg U Shape Scale

Minimum Order Quantity : 1 Delivery Time : 5-8week
Payment Terms : T/T Supply Ability : 999+pc+2m
Place of Origin: CHINA Brand Name: Diniargeo
Model Number: FPW

Detail Information

Range: 1500kg,3000kg Power Supply: 15 VCD
High Light:

3000kg electronic floor scales


3000kg stainless steel scale


15V pallet weighing scale

Product Description

FPW U-shaped bar scales high-precision portable electronic floor scales stainless steel U Shape Scale
Low profile, easy to move, pallet-weighing scale. Suitable for industrial and commercial applications, in which it’s necessary to quickly weigh goods on a pallet. The standard version is provided with approved load cells.
Functioning with 4 shear-beam 350Ohm nickel-plated steel load cells, approved according to OIML R60 C3 standards (3000 divisions), IP67 protection degree.
Accuracy: +/- 0.1% of the maximum capacity in the versions for internal use.
Accuracy: +/- 0.05% of the maximum capacity in the "M" approved versions.
Moulded sheet-steel structure, oven-fire painted RAL 5007 blue.
Adjustable, shock-proof jointed feet, level, 2 wheels and handles for moving it.
5/15 Vdc power supply.
Shielded about 3m long cable for connection to the indicator.
Upon request:
- platform calibration service with weight indicator;
- 3000e CE-M approval, to be combined always to the calibration service;
- support column for indicator.
U Shape Scale Available versions
l x w x h
Nr. of cells Max
FPW Shock Proof Stainless Steel 3000kg U Shape Scale 0
  FPW15 1263x840x90 4x1000kg 1500 500 500
  FPW30 1263x840x90 4x2000kg 3000 1000 1000
