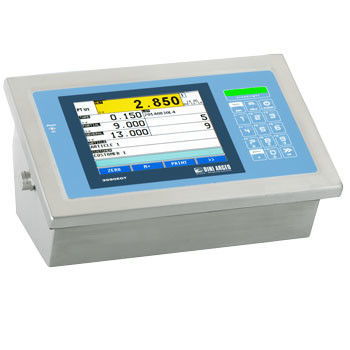

3590EGT "ENTERPRISE": weight indicator for industrial applications, stainless steel IP68 weighing instrument
Digital weight indicator with a big touch screen display, suitable for advanced industrial applications. It allows the visualization of all the weighing data and the customization of the screens, simplifying the user operations. Fitted with 3 serial ports, transmission protocols for data communication, completely configurable printouts, integrated alibi memory, and port for connection to barcode/badge reader. CE-M approvable (OIML R-76 / EN 45501).
Backlit graphic display with touch screen technology, lxh= 120x90mm size.
15-key alphanumerical waterproof keyboard.
3-way control light.
Selectable QWERTY, AZERTY o QWERTZ keyboard integrated in the touch screen.
Stainless steel waterproof IP68 enclosure, new optional IP69K protection system.
Dimensions: 280x143x185 mm.
Suitable for use on the table, column, or wall.
Real time clock and permanent data storage.
Supplied with alibi memory, integrated on the motherboard.
Slot for built-in micro SD for recording the configuration, logos, and customized screens (upon request).
Functions available with DINITOOLS utility
- Configuration, data entry and print formatting.
- Recording and filing of all the information on PC.
- Complete retrieval of the configuration.
- Instrument calibration with numeric values.
- Customization of the screens.
24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).
Management of the most common digital load cells for weigh bridges (with DIGIKIT option and AF03GT firmware), also for applications with CE-M approval.
Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade.
Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
Connectable to printers and labellers with free programmation of the printout formats.
110-240 Vac power supply.
EU Type Examination Certificate (45501:2015)
OIML R51 - MID
OIML R134 (AF09)
AF01: Totalization and formula weighing (integrated)
AF02: Pieces/quantity counting (optional)
AF03: Weighbridges - Input/Output vehicle (optional)
AF04: Statistical checking of prepackaged goods (optional)
AF05: Price compunting and industrial labelling (optional)
AF08: Wheel and axle static weighing with 2 or various platforms (optional)
AF09: Software for dynamic and static axle weighing with 1 or 2 platforms (optional)
BATCH1: Single product dosage systems in loading and unloading (optional)
BATCH: Software for multicomponent dosage systems in loading and unloading (optional, IOEXPB board must be included)
Thanks to our integrated development, you can create complete customised applications in autonomy:
wizards, operator messages
serial port management, protocols customization
digital I/O full management
sequential or simultaneous automations
data entry, custom archives
Dini Argeo can offer the service of custom development programs.
IDEAL FOR DIGITAL APPROVED WEIGHBRIDGES
The 3590EGT indicator with the AF03GT firmware manages the most common digital load cells for weigh bridges, even for CE-M approved applications:
Dini Argeo RCPTD
Dini Argeo RCD
Rice Lake RL5416D/RL5426D
HBM C16i (requires HBM junction box and RS422 converterRS485)
Zemic DM-B4110, DM-B4310, DM-B4311, DM-E5310
For a complete list of supported load cells, refer to the AF03GT Weighing Program Technical Manual.
For efficient handling and optimal protection of digital load cells, the use of the DIGIKIT option is reccommended.
2 RS232 serial ports, for connection to printer, PC or PLC, radio module and optinal interfaces.
1 RS232 serial port (optional RS485), for connection to weight repeater, remote scale, badge reader or digital load cells.
Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
4 optoisolated outputs (optional).
2 optoisolated inputs (optional).
External Profibus interface (optional), for automation management.
Modbus RTU Interface.
Optional Bluetooth connection, for quick wireless programming of the activities and the formulas, through PC or tablet.
Analog output DAC16O needs the expansion board IOEXPB.
COMPLETELY CUSTOMIZABLE SCREENS
Thanks to the programmable Touch Screen Display, you can create custom-made interfaces for any application:
The "Dini Display Tool" is a PC software which allows you to quickly customize the TOUCH SCREEN

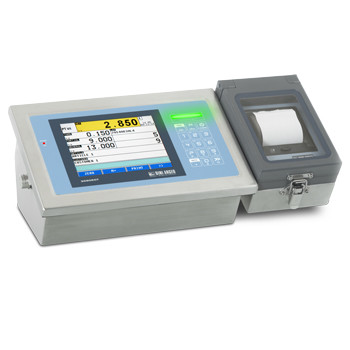

Full version with 2 inputs, 4 outputs and RS485
Colour Touch Screen indicator with 2 IN, 4 OUT, RS485 and AF01 software. Stainless steel waterproof IP68 case.
Colour Touch Screen indicator with AF01 software. Stainless steel IP68 case.
Available versions with UK power cord
||Colour Touch Screen indicator with AF01 software. Stainless steel IP68 case. Power supply cord with BS1363 plug (UK plug).
