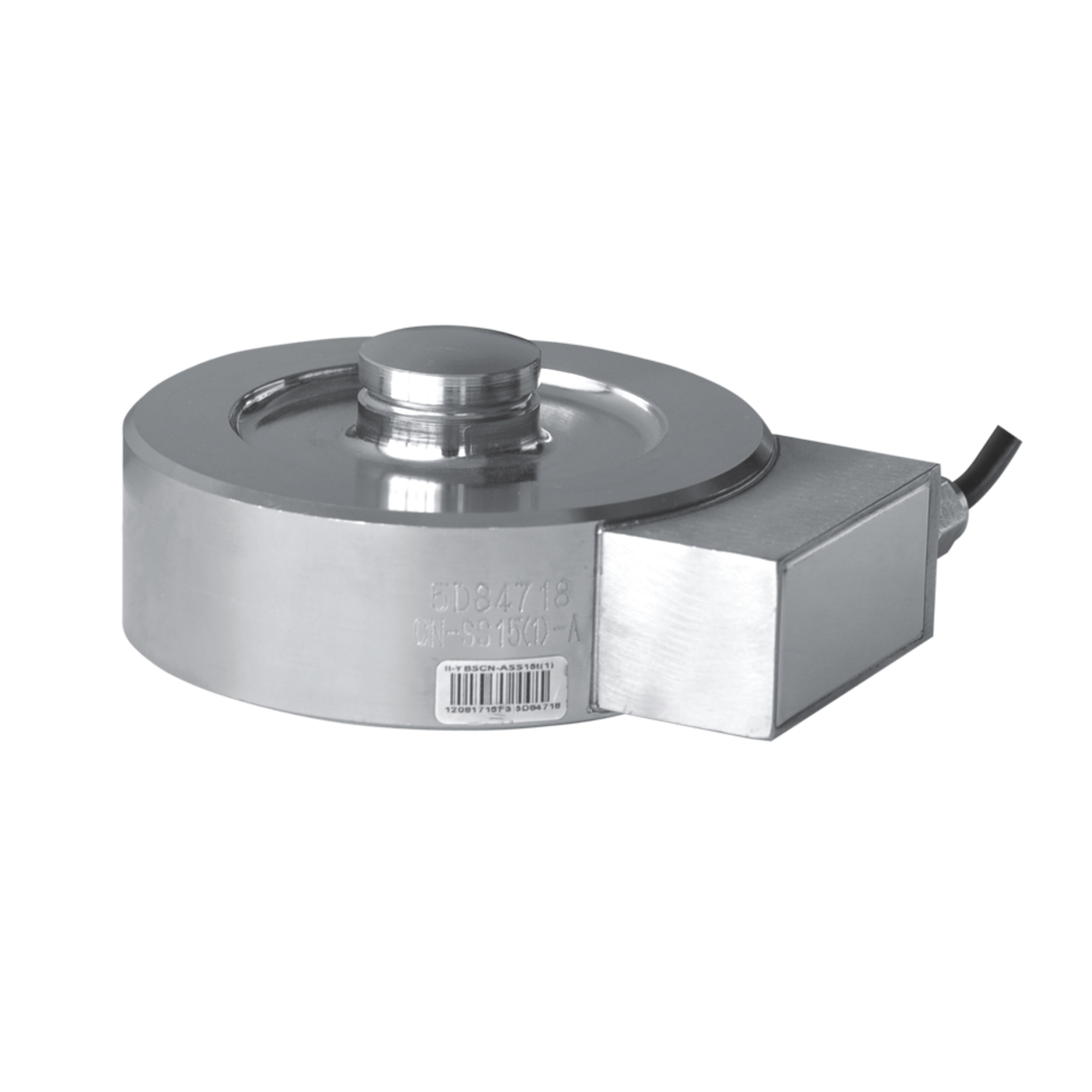

Full Weld Seal Batching Scale 10t Dynamic Load Cell

Minimum Order Quantity : 1 Price : Online consultation
Packaging Details : Carton Delivery Time : one week
Payment Terms : T/T Supply Ability : 100000+pc+one week
Place of Origin: CHINA Brand Name: CONHON/KELI
Certification: - Model Number: YBSCN series

Detail Information

Product Name: Force Load Cell Range: 2.5、5、10、15、20t
Material: Stainless Steel Rated Output: 2.0±0.005mv/v
Environment Protection: IP68 OIML: C3
High Light:

10t electrical load cell


10t piezoelectric load cell


IP68 electrical load cell

Product Description

Batching scale load cel force load cell Spoke type load cell YBSCN Series load cell YBSCN-10t load cell
Product Details



Spoke type load cell FEATURES:

● Capacity 1ton to 10ton

● Full weld seal, high protection

● Low height

● Stainless steel



Batching scale load cel force load cell APPLICATION:

● Static hopper scale

● Static industrial control

Full Weld Seal Batching Scale 10t Dynamic Load Cell 0



Rated capacity C1 C2 C3 H H1 T
2.5,5,10 22 82 65 44 32 M6
15,20 28 100 80 48.5 35 M8

YBSCP weighing load cells  SPECIFICATION:


Rated capacity: 2.5ton to 20ton Operating temperature range: -30 to +70
Rated output:2.0±0.005mv/v Maximum safe overload150% OF R.C
Combined error:±0.05% F.S Ultimate safe overload200% OF R.C
Non-repeatability:±0.03% F.S Recommended Excitation10 to 12V DC
Non-linearity:±0.05% F.S Maximum Excitation15V DC
Hysteresis error:±0.05% F.S Environment protection: IP68
Zero balance: ±1% F.S Input impedance: 400±20Ω/750±10Ω
Creep error(30minutes): ±0.03% F.S Output impedance: 352±3Ω/702±3Ω
Temperature effect on zero: ±0.02% F.S Insulation resistance at 50V DC: ≥5000MΩ
Temperature effect on output: ±0.05% F.S Material: Stainless steel
Compensated temperature range: -10 to +40 Cable length: 5 meter, diameter 5mm


We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
