Contact Person : Peter

Phone Number : +86-13764443932

WhatsApp : +8613764443932

GAI 7 Digits 16.5mm 15000g Single Pan Analytical Balance supplier

Contact Now

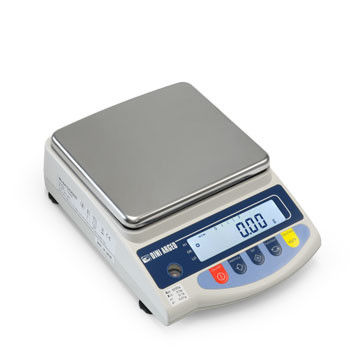

GAI 7 Digits 16.5mm 15000g Single Pan Analytical Balance

Minimum Order Quantity :	1	Delivery Time :	5-8week
Payment Terms :	T/T	Supply Ability :	99+pc+2m

Place of Origin:	Italy	Brand Name:	Diniargeo
Certification:	CE	Model Number:	GAI

Detail Information

Range:

620g 6200g 15000g

Linearity:

0.001 0.01 0.02 (g)

High Light:

15000g digital analytical balance

15000g digital balance for laboratory

15000g high precision balance

Product Description

GAI Series Analysis "Top Load" Scale High Precision Electronic Precision Balance Laboratory Analytical Balances

Multifunctional high precision scales, suitable for laboratory, industrial use, jewelry and pawn shops and cash for gold shops. Available also CE-M APPROVED for legal for trade use.

DIVISION (g): 0.001 and 0.01.

CAPACITY (g): 420, 620, 2200, 4200, 6200.

TECHNICAL FEATURES

Backlit LCD display with 7 digits 16.5mm high.

Waterproof membrane keypad, with 5 keys.

Construction: bearing structure in die cast aluminium, ABS case.

Weight detection through tuning fork system.

Stainless steel plate, size:

- GAI420 and GAI620 models Ø 118mm

- GAI2200, GAI4200, GAI6200 models 180x160mm.

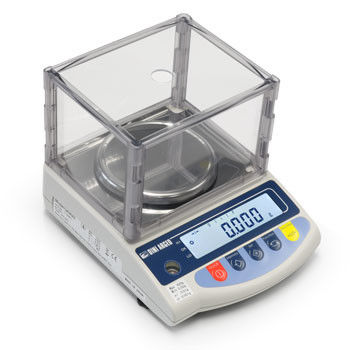

Winscreen (on GAI420 and GAI620 models), level, adjustable feet.

Power supply: standard fitte with 230 Vac power adapter.

RS232/c port for connection to PC, 3590EGT series indicator or printer.

Internal calibration (except GAI6200).

Upon request:

- ACCREDIA calibration with issuing of relative certificate;

- CE-M approval;

- weigh-below hook.

FUNCTIONS

counting;

% weight;

conversion units of measure:

- Standard versions, not approved: g, kg, ct, oz, lb, ozt, dwt;

- CM versions, approved: g, kg, ct (only available at time of scale's order);

zeroing;

zero tracking;

semi-automatic tare;

digital calibration.

GAI620 with optional customer-side weight repeater, ideal for jewelers, pawn shops and cash for gold shops.

Electronic precision balance Available versions

Code	Class	Plate Max (mm)	Max (g)	d (g)	(g)*	Linearity (g) +/-	Repeatability (g)
GAI420N	II	Ø 118 mm	420	0,001	0,01	0,001	0,001
GAI620N	I	Ø 118 mm	620	0,001	0,01	0,001	0,001
GAI2200N	II	180x160 mm	2200	0,01	0,1	0,01	0,01
GAI4200N	II	180x160 mm	4200	0,01	0,1	0,01	0,01
GAI6200N	I	180x160 mm	6200	0,01	--	0,02	0.01
