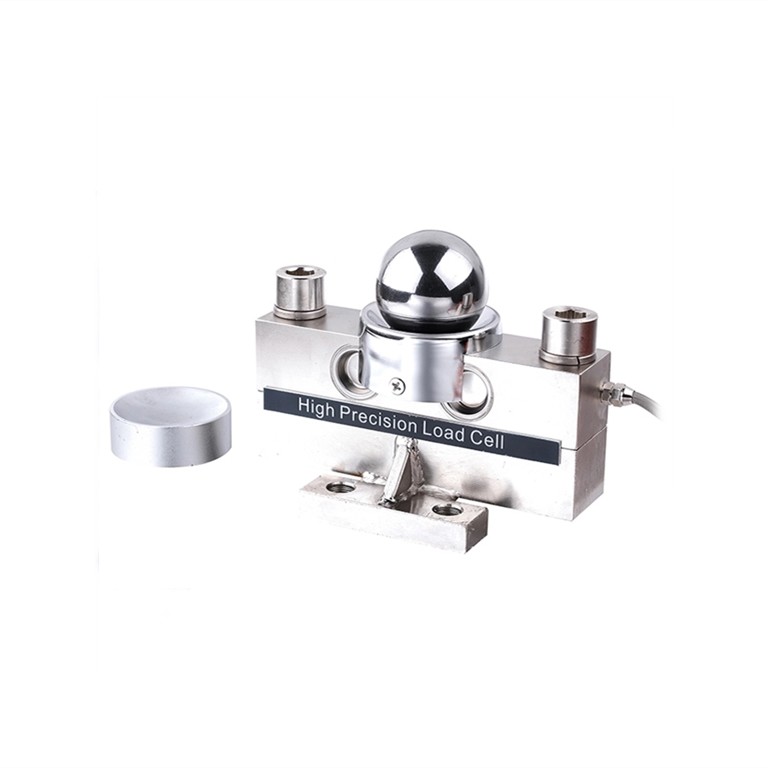

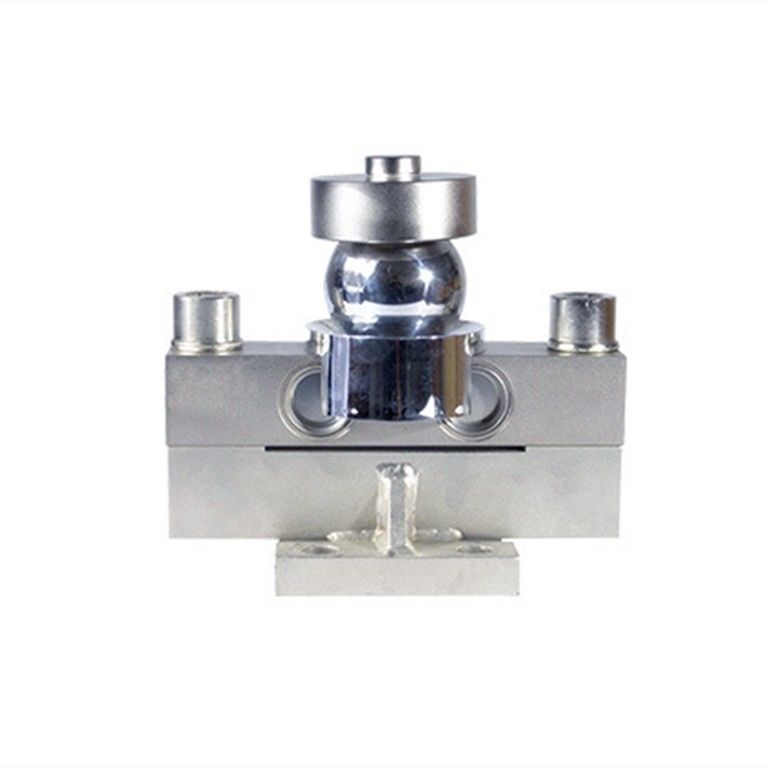

HM9B Double End Shear Beam 20t Truck Scale Load Cells

Place of Origin:	CHINA	Brand Name:	CONHON
Certification:	CE	Model Number:	HM9B

Detail Information
Accuracy::	3000e	Accuracy Class::	C3
Iuput Resistance::	760 ± 10 Ω	Output Resistance::	702 ± 2 Ω
Safe Overload::	150% F.S	Destructive Load:	300%F.S
High Light:	20t universal load cell , shear beam 20 ton load cell , 20 ton Truck Scale Load Cells

Product Description

OIML C3 double end shear beam 10/15/20/25/30 / 40t hm9b truck scale CONHON load cell

Product Description:

Rated Capacity	10/15/20/25/30/40t
Accuracy Class	OIML C3 NTEP:Ⅲ,nmax:5000,Multiple Cell
Rated Output	2.0±0.002mV/V
Total Error	±0.02%F.S
Creep(30min)	±0.02%F.S
Input Resistance	760±10Ω
Output Resistance	702±2Ω
Operating Temperature	-10 - +40℃
Safe Overload	150%F.S
Destructive Load	300%F.S
Excitation Recommend	4-12VDC Max:15VDC
Cable Length	8-16m 4 wires with shield Exc+(red) Exc-(black) Sig+(green) Sig-(white)
Construction	Alloy Steel or Stainless steel,IP67
Application for	weighing bridge,truck scale,railway scale etc.

Notice:Weight of the foot	M12 0.3kg, M16 0.3kg, M18 0.38kg, M24 0.81kg, M36 1.4kg
Range	weight	package volume
Range	big box	big box
20T	16kg	410205230 single package With attachment
30T	16kg
40T	16kg

Product Size :

HM9B Double End Shear Beam 20t Truck Scale Load Cells 0

HM9B Double End Shear Beam 20t Truck Scale Load Cells 1
