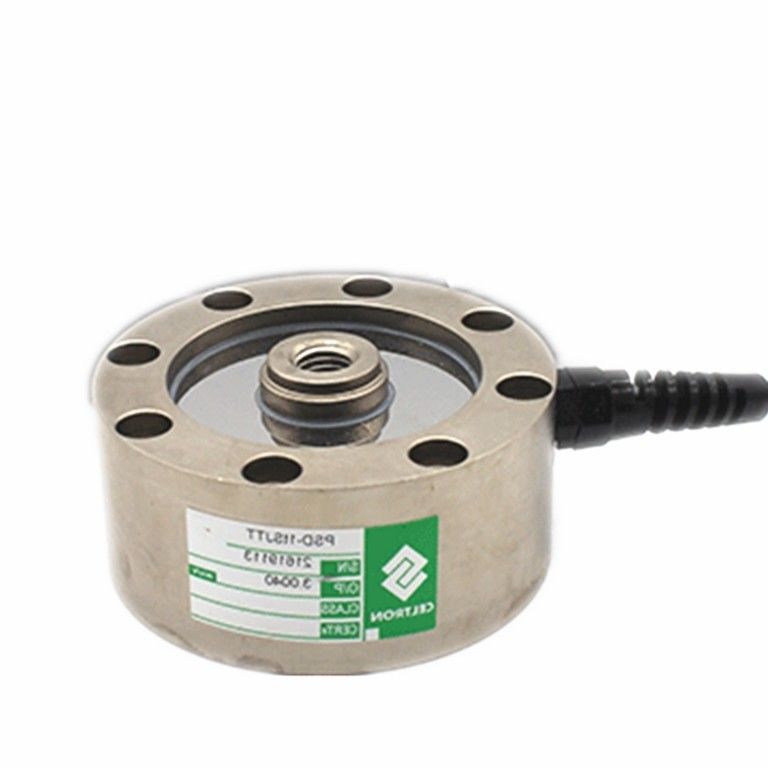

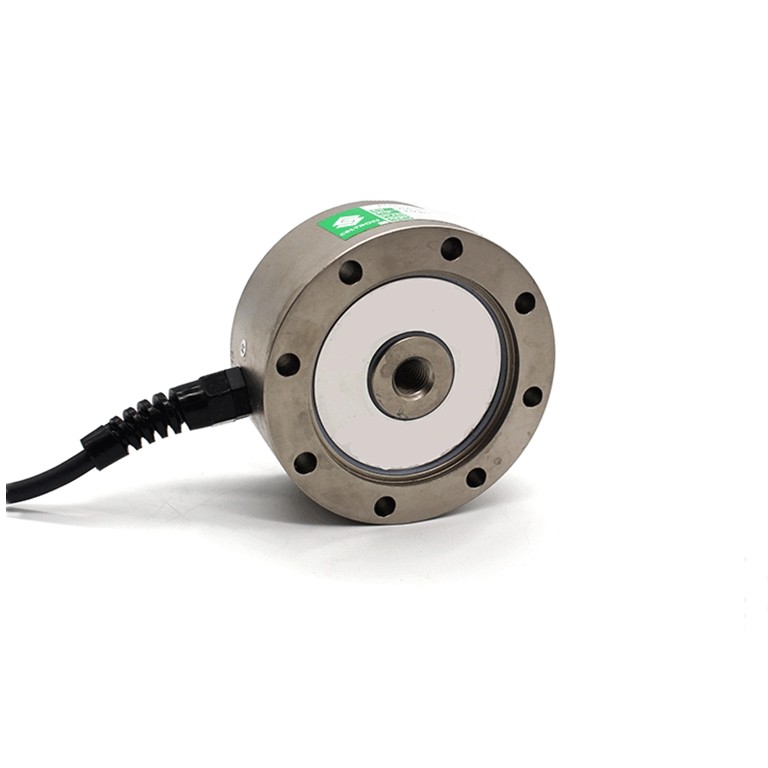

IP67 Tensile Tester 25K High Capacity Load Cell PSD

Minimum Order Quantity : 10 Price : ¥800-10000/pcs
Delivery Time : 5-8weeks Payment Terms : T/T
Supply Ability : 99999+pc+1m
Place of Origin: USA Brand Name: Vishay
Certification: CE Model Number: PSD

Detail Information

Protection Level: IP67 Texture: Alloy Steel
Combined Error: 0.05% Input Resistance: 385±5 *
Compensated Temp. Range: -10°C To +40°C Operating Temp. Range: -20°C To +60°C
High Light:

25K load cell tensile testing machine


IP67 double ended load cell


25K double ended load cell

Product Description

Vishay Celtron HCD High Precision Truck Scale Load Cell Load Cell Tensile Tester Load Cell


Alloy steel products
2. Metal welding seal
3. Category: 25K, 50K, 100Klb
4. Comprehensive accuracy: 0.05%
5. Protection level: IP67
6. Truck scale, track scale, barrel metering, batching system
Celtron HCD load cell technical parameters



Standard Capacity
25K, 50K, 100K lb
Recommended Excitation
10 V AC/DC
Compensated Temp. Range
-10°C to +40°C
Maximum Excitation
15 V AC/DC
Operating Temp. Range
-20°C to +60°C
Output at Rated Load
3 mV/V±0.25%
Zero Balance
Combined Error
Input Resistance
385±5 *
Non Repeatability
Output Resistance
350±3 +
Creep (20 minutes)
Insulation Resistance(50VDC)
>5000 M
Zero Return (20 minutes)
Deflection at Rated Load
Temp. Effect/10°C on Span
Safe Overload
Temp. Effect/10°C on Zero
Ultimate Overload
*:770 for 100K lb
+:700 for 100K lb
