JCQ Junction 700mA Weighing Accessories For Load Cells

Minimum Order Quantity : 100 Price : Consult
Packaging Details : 107 x 60mm Delivery Time : 2-4WEEKS
Payment Terms : T/T Supply Ability : 99999+pc+1m
Place of Origin: Italy Brand Name: DiniArgeo
Certification: CE Model Number: JBQAI

Detail Information

Dimensions (lxw): 107 X 60mm Maximum Input Voltage: 24Vdc
Maximum Input Current: 700mA
High Light:

load cell equalisation card


load cell equalised junction cards


700mA equalised junction cards

Product Description



Junction and equalisation cards for up to 10 load cells. Simple to install and connect thanks to the screw terminal boards and the signal adjustment trimmers.
Maximum input voltage: 24Vdc.
Maximum input current: 700mA.
Maximum input load cell signal: 1000 mV.
Temperature effect: 50ppm/°C.
Fitted with Surge Arresters in the JC10Q version, against electric discharges and disturbances.
JC4Q: 107 x 60 (l x w) mm.
JC10Q: 200 x 62 (l x w) mm.
Available versions
  Code Description

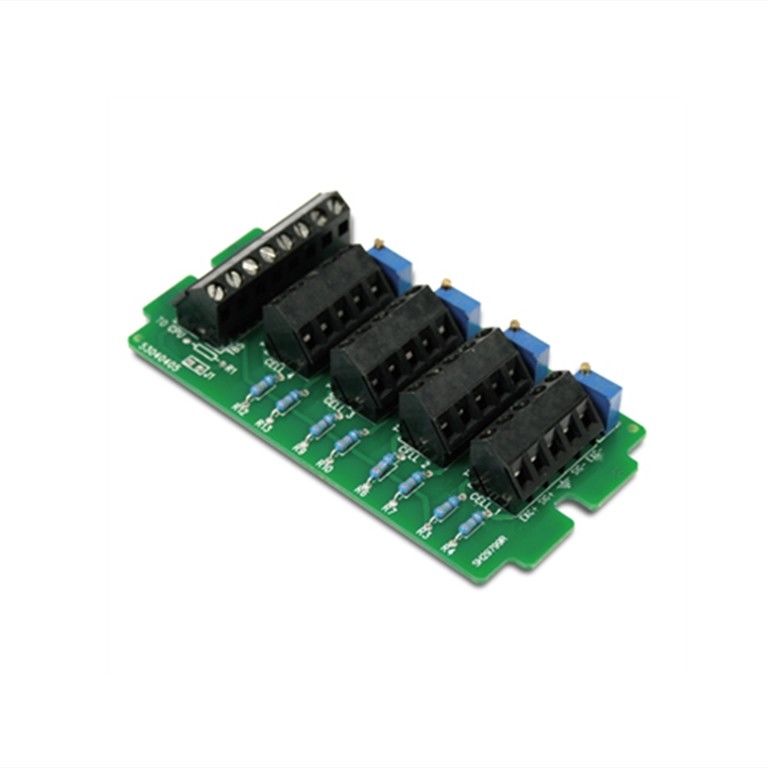

JCQ Junction 700mA Weighing Accessories For Load Cells 0 JC4Q Equalisation board for up to 4 cells. With UL marked PCB, Terminal block, plastic box and labels (if expected).

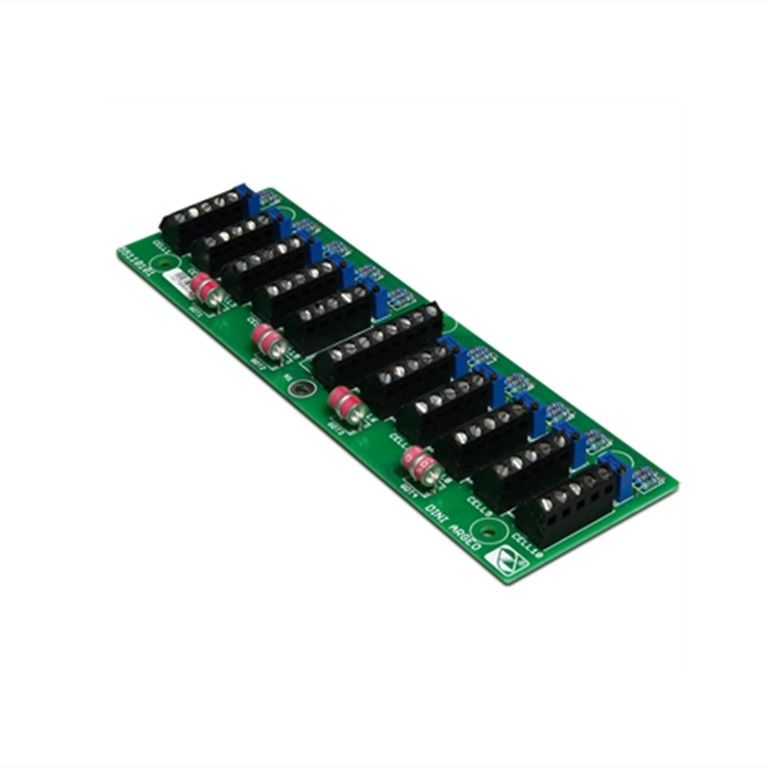

JCQ Junction 700mA Weighing Accessories For Load Cells 1 JC10Q Equalisation board for up to 10 cells, fitted with surge arresters.
