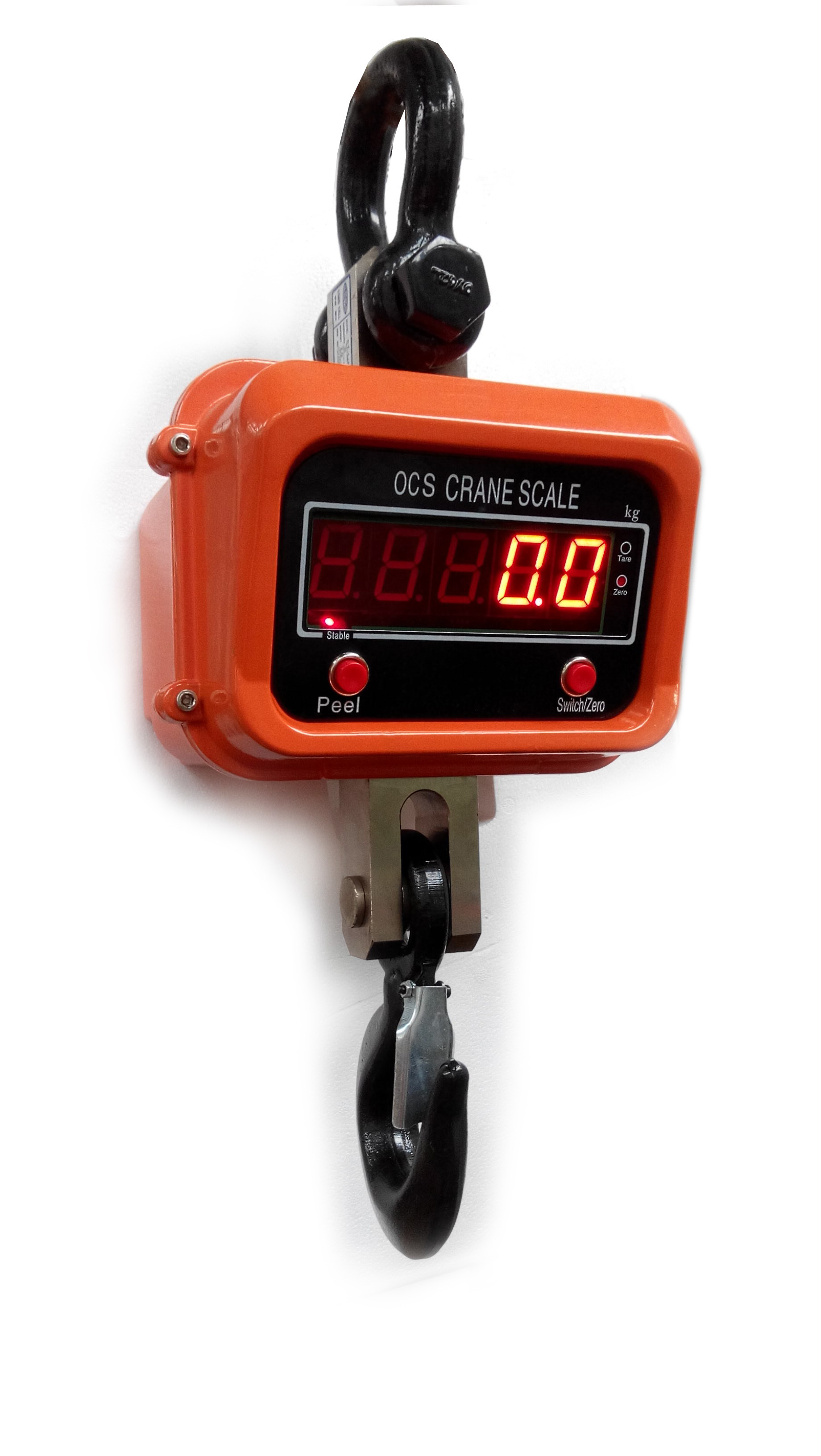

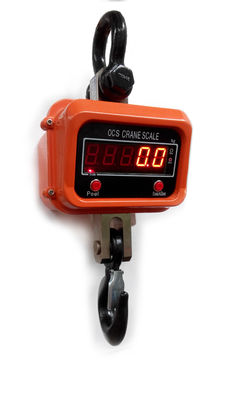

LED 24bit Handheld Aluminum Shell 2000kg Electronic Hanging Scale

Product Description

Features

High-strength Aluminum Case（RED font）

Integrated sensor design

American standard bow shackle

LED display, digital height 30mm

Build-in rechargeable battery

Remote control

Capacity：15T

Product Size

Product parameters

Basic skills

1. Direct-view or wireless electronic crane scale weighing module
1) Input signal range: -20— + 20mV
2) A / D conversion: 24-bit Sigma-Delta analog-to-digital conversion
3) Non-linearity: ≤0.0015% F.S
4) Minimum resolution: 0.5uV / d
5) Bridge voltage: 5V / 100m
6) Working temperature: -40— + 85 ℃
7) Relative humidity: ≤90% R.H
8) Power supply: DC6V

2. Handheld wireless meter
1) Display: 5-digit 0.5-inch LCD display
2) Communication frequency: 433MHz (32 channels)
3) Communication distance: Unblocked distance is not less than 350m (can be customized for longer distance products)
4) Working temperature: -10— + 45 ℃
5) Relative humidity: ≤90% R.H
6) Power supply: Built-in 3.6V battery with 4.2V charger

Product acessories

Battery                           Remote control                           Adaptor
