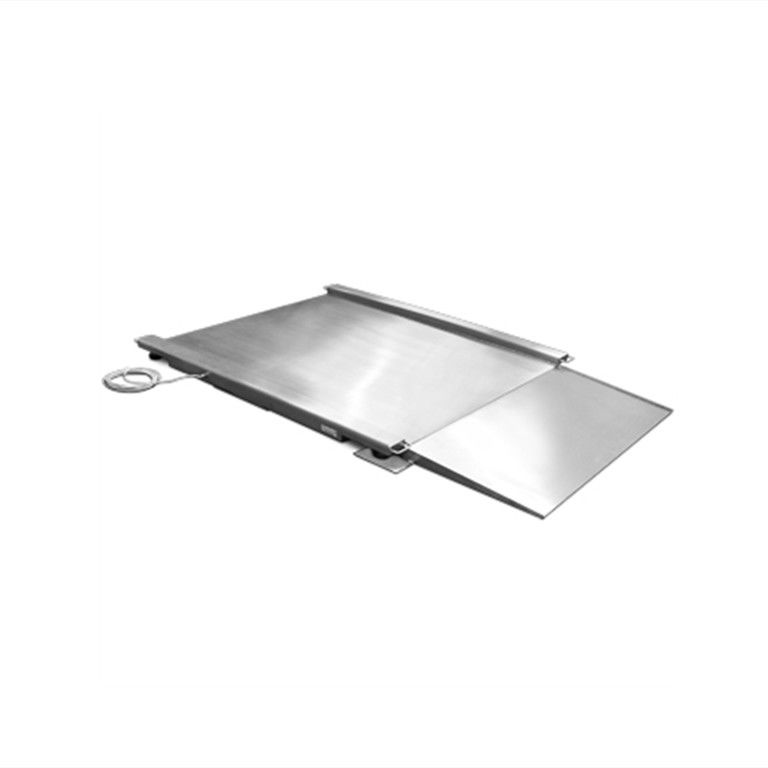

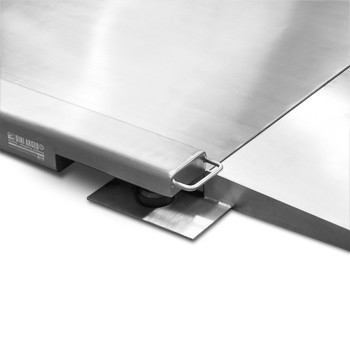

LPI Mechanics 4 Shear Beam 3000kg Floor Weighing Scale

Minimum Order Quantity :	1	Delivery Time :	5-8week
Payment Terms :	T/T	Supply Ability :	999+pc+2m

Place of Origin:	Italy	Brand Name:	Diniargeo
Certification:	CE	Model Number:	LPI

Detail Information

Range:

300kg，600kg，1500kg，3000kg

Power Supply:

15 Vdc

High Light:

3000kg explosion proof floor scale

3000kg outdoor pallet scale

3000kg warehouse pallet scales

Product Description

"LPI" series with slopes ground scales Industrial explosion-proof electronic floorsSERIES 4-CELL PLATFORMS

Low profile platforms suitable for weighing trolleys, pallet trucks, etc.; fitted with sideboards and an on/off ramp. Suitable for creating scales and electronic weighing systems for all types of industrial and commercial applications. Standard version is with approved load cell. Available also in the Ex II 2GD IIC ATEX version in stainless steel.

MAIN FEATURES

Fitted with 4 IP68 stainless steel shear-beam OIML R60 approved load cells each with 350 Ohm input resistance.

Structure and mechanics in AISI304 stainless steel.

Adjustable, shock-proof jointed feet and level.

5/15 Vdc power supply.

Hermetic junction box, IP67 wiring with screened 5m long 6-pin cable with connectors for connection to the indicator.

Fitted with one on/off ramp.

OPTIONS ONLY AVAILABLE AT TIME OF ORDER

Connection to the indicator and calibration with CE-M 3000e single range or 3000e + 3000e dual range approval (depending on the indicators used).

High resolution model for internal factory use.

OPTIONS FOR ATEX VERSION

CCATEX: ATEX certificate for each load cell.

JB4QAP: ATEX certified junction box.

DCATEXMECH: ATEX declaration for the PLATFORM (for the load cells ATEX declaration see CCATEX-1 code). Option to be offered only if the platform is ordered without the indicator, if so, refer to the chosen weight indicator available certifications.

Weighbridge Truck Scale Available versions

Code	l x w x h (mm)	Nr. of cells	Max (kg)	d (g)	(g)*	2R (g)*	d HR (g)*
LPEI6-1	1250x1000x45	4x500kg	600	100	200	100-200	50
LPEI15-1	1250x1000x45	4x1000kg	1500	200	500	200-500	100
LPFI6-1	1500x1250x45	4x500kg	600	100	200	100-200	50
LPFI15-1	1500x1250x45	4x1000kg	1500	200	500	200-500	100
