Narrow Space Testing Miniature 2.0mv/V Force Load Cell

Minimum Order Quantity : 1 Price : Online consultation
Packaging Details : Carton Delivery Time : one week
Payment Terms : T/T Supply Ability : 100000+pc+one week
Place of Origin: CHINA Brand Name: CONHON/KELI
Certification: - Model Number: NKE series

Detail Information

Product Name: Force Load Cell Range: 200lb、250lb、500lb、1klb、3klb、5klb、10klb
Material: Stainless Steel Rated Output: 1.0~2.0mv/v
Environment Protection: IP66 Cable Length:: 1.5 Meter Or Diameter 3mm
High Light:

2.0mv/v dynamic load cell


2.0mv/v compressive load cell

Product Description

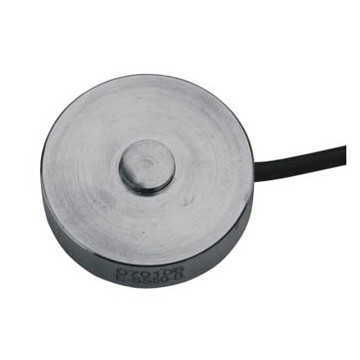

Narrow space testing force load cell Coin load cell Miniature load cell NKE Series Load Cell NKE-1klb Load Cell

weighing load cell Product Details

Narrow space testing force load cell FEATURES:

● Capacity 200lb to 10klb

● Low profile, small apperance

● Stainless steel


Coin load cell  APPLICATION:

● Narrow space testing

Miniature load cell Product Dimensions

Narrow Space Testing Miniature 2.0mv/V Force Load Cell 0



Rated capacity: 200lb to 10klb Operating temperature range: -30 to +70
Rated output:1.0~2.0mv/v Maximum safe overload120% OF R.C
Combined error:±0.5% F.S Ultimate safe overload150% OF R.C
Non-repeatability:±0.05% F.S Recommended Excitation5 to 10V DC
Non-linearity:±0.5% F.S Maximum Excitation10V DC
Hysteresis error:±0.5% F.S Environment protection: IP66
Zero balance: ±2% F.S Input impedance: 350±50Ω
Creep error(30minutes): ±0.2% F.S Output impedance: 352±3Ω
Temperature effect on zero: ±0.051% F.S Insulation resistance at 50V DC: ≥2000MΩ
Temperature effect on output: ±0.2% F.S Material: Stainless steel
Compensated temperature range: -10 to +40 Cable length: 1.5 meter, diameter 3mm

We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
