OIML M04 Weighing Scale Indicator With Double Hopper

Minimum Order Quantity : 100 Delivery Time : 2-4week
Payment Terms : T/T Supply Ability : 999+pc+1m
Place of Origin: CHINA Brand Name: jieman
Certification: CE Model Number: M04

Detail Information

High Light:

M04 Weighing Scale Indicator


M04 batch weighing controller


OIML Weighing Scale Indicator

Product Description

Comprehensive Upgrade Weighing Controller with OIML and Various Optional Software Embedded

M04 Weighing Controller with single or double hopper is specially designed for weighing relevant system. There are several options that can be chose to tailor your business. The new algorithm simplifies the operation and enhances the working efficiency and accuracy. USB port and two serial communication ports makes it easier to connect with the system. Currently, M04 is used in a wide variety of applications, such as bagging, bulk scale, liquid filling, and loss-in-weight batching/feeding and so on.

OIML Approval

Various Software Options

  • Bagging scale
  • Bulk scale
  • Liquid filling
  • Loss-in-weight
  • Batching

Robust New Generation

  • New generation chip
  • Adaptive optimization algorithm to accelerate working pace and increase accuracy


  • 5 inch TFT LCD concise operation interface
  • Automatic Zero-Tracking function
  • Two serial communication ports to connect with printer, computer or a second display
  • Programmable I/O module: 8 in and 12 out I/O module as standard, 12 in and 16 out as extending option

High Accuracy

  • Display accuracy: 1/100,000
  • Perfect balance between speed and precision with automatic three-speed feeding control

Flexible and easy to use

  • With USB port, users can input and output all parameters, as well as upgrade system.
  • Selectable A/D: 120/240/480/960 times/sec
  • 20 recipes can be stored for different weighing capacity.
  • Multilevel of digital fitler
  • Widely used in packing system with or without a weighing material hopper

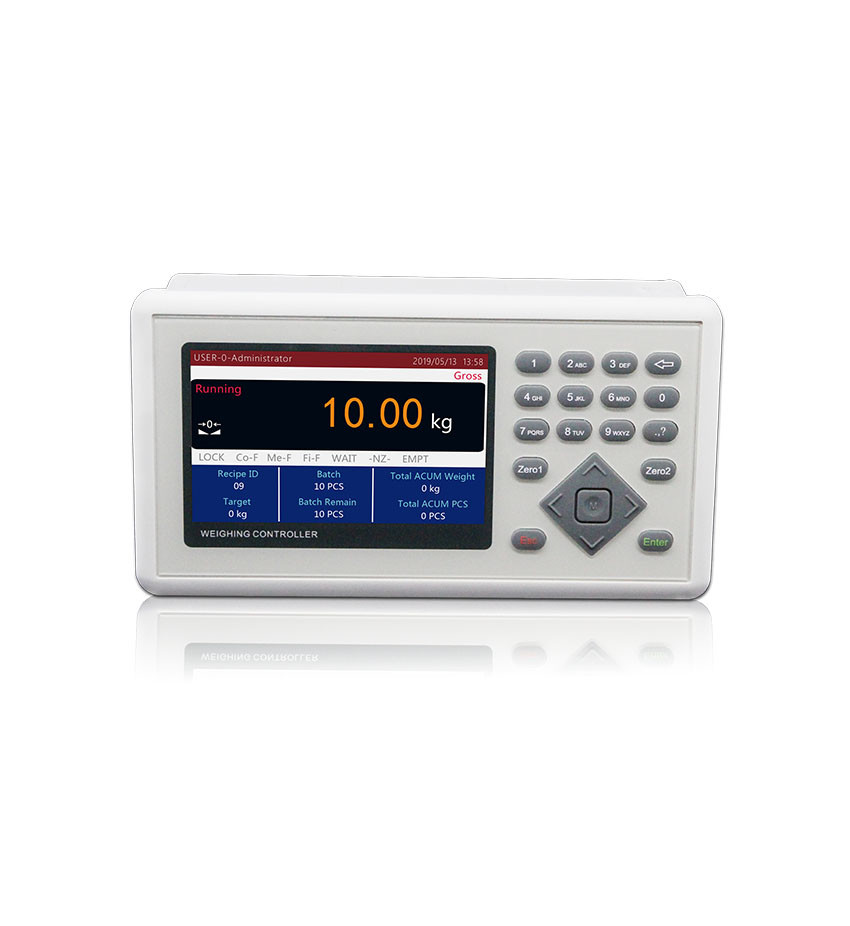

OIML M04 Weighing Scale Indicator With Double Hopper 0

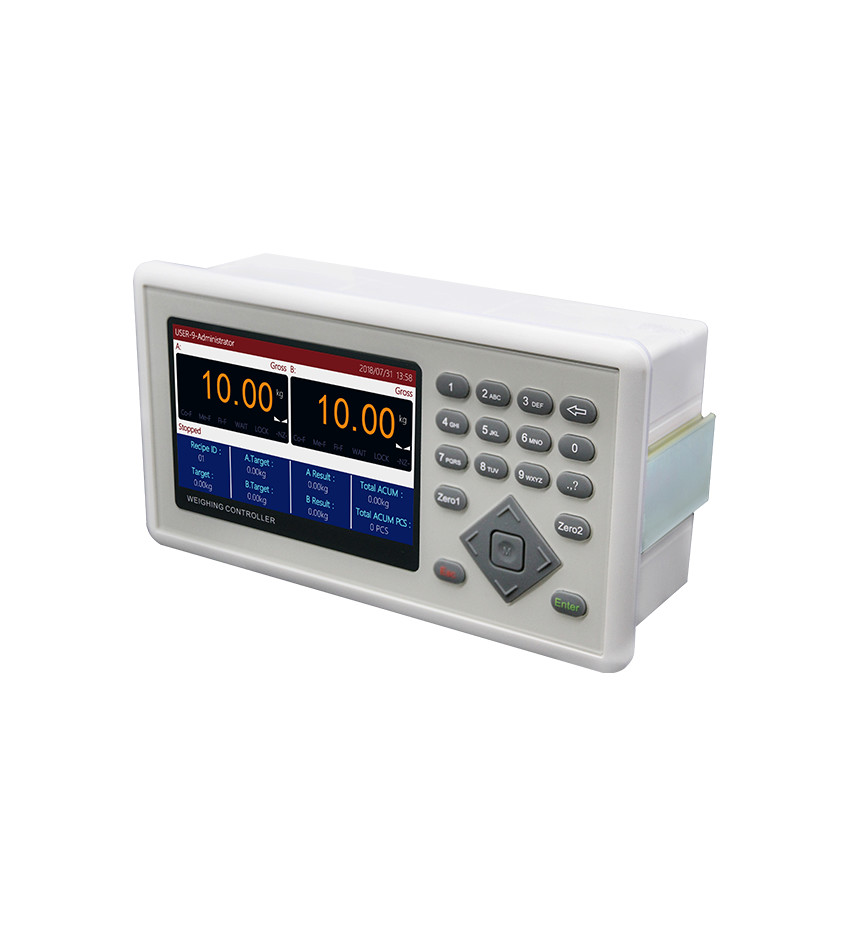

OIML M04 Weighing Scale Indicator With Double Hopper 1

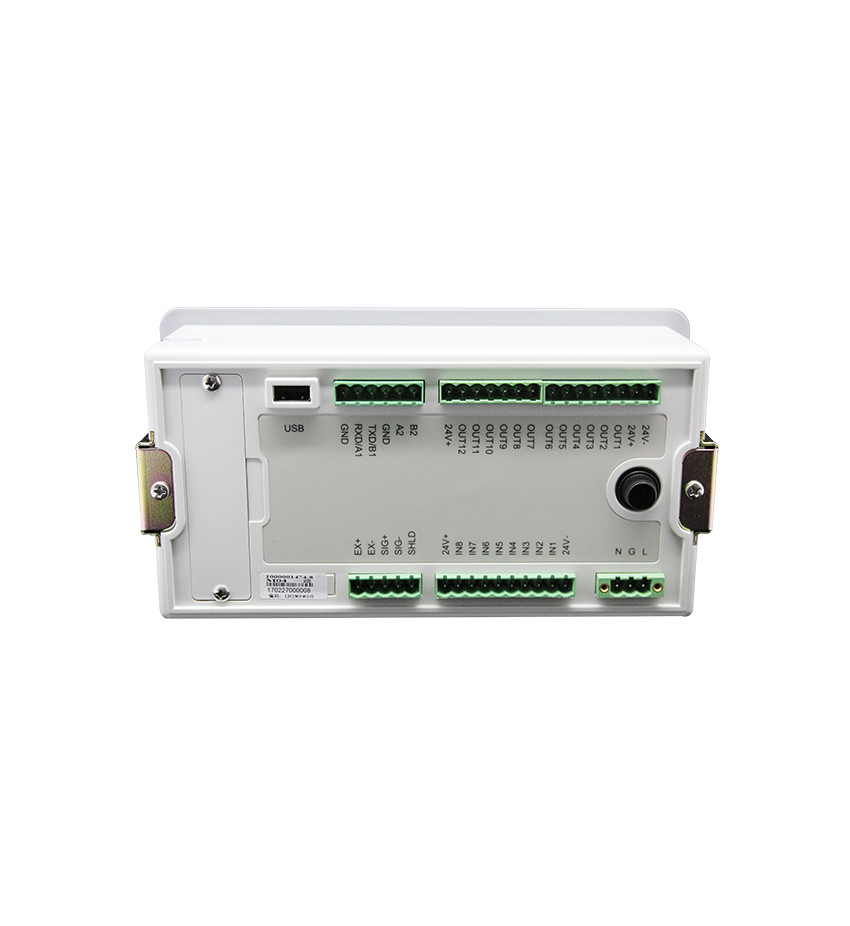

OIML M04 Weighing Scale Indicator With Double Hopper 2
