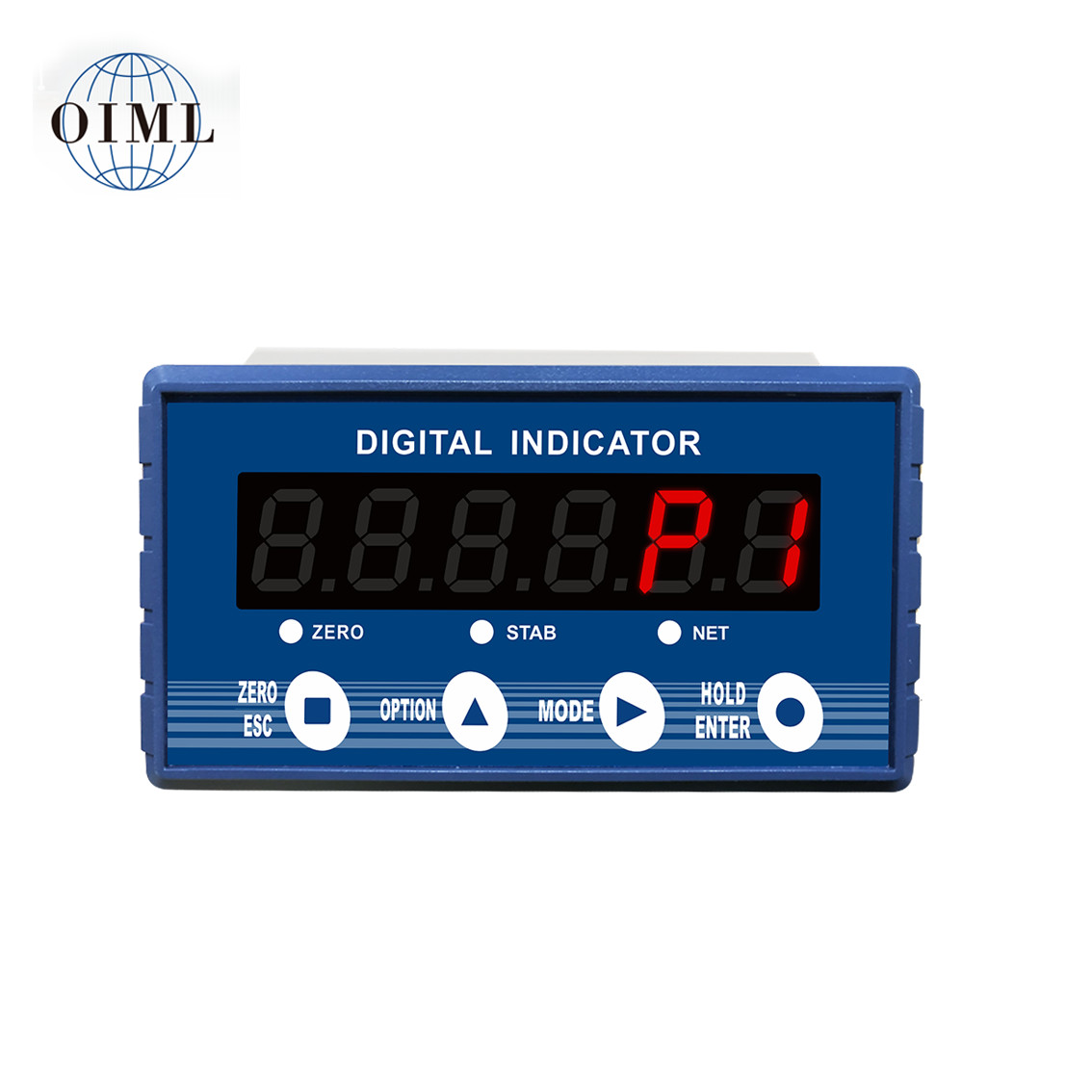

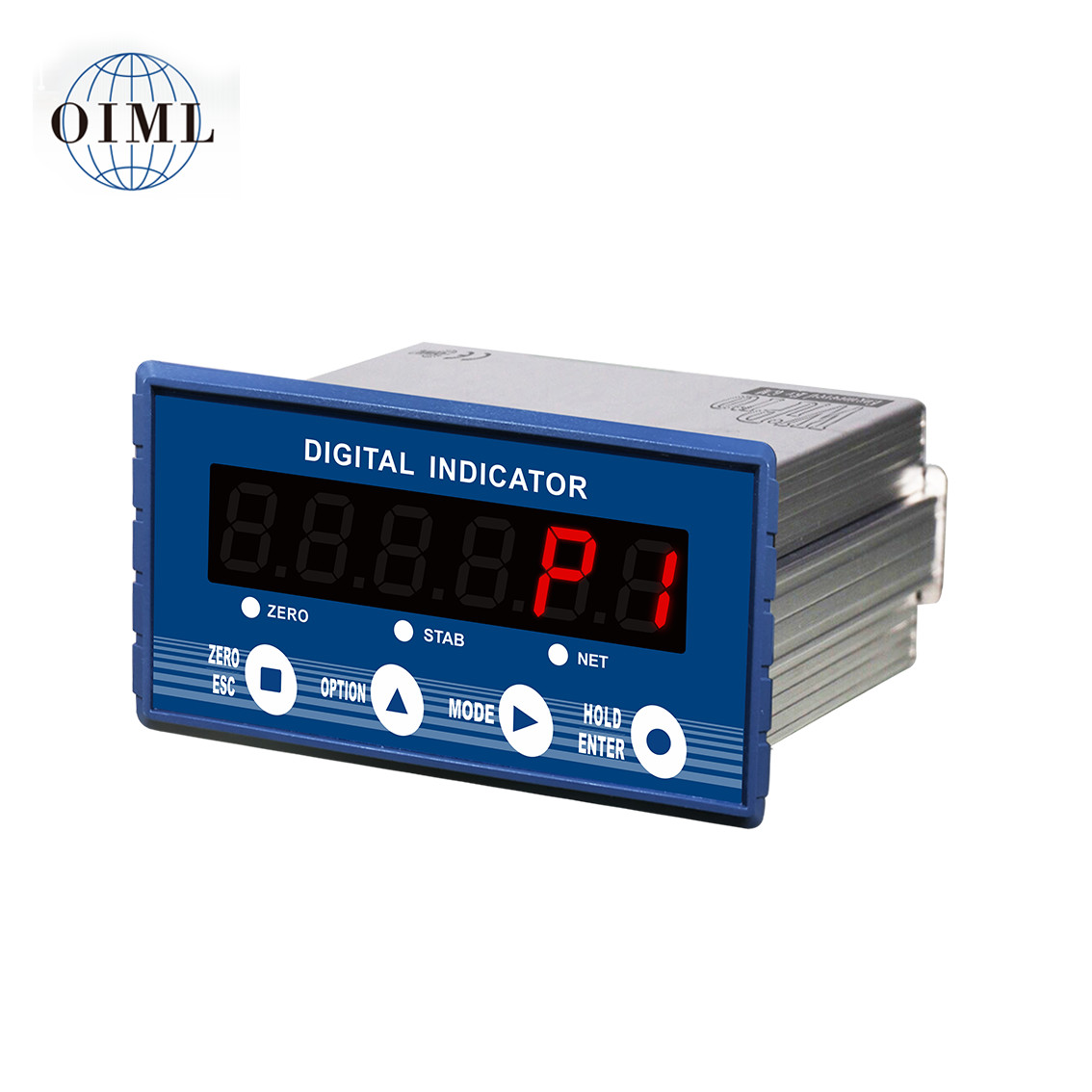

OIML RS232 Panel Mounted GMT-P1 Weighing Transmitter

Minimum Order Quantity : 100 Delivery Time : 2-4week
Payment Terms : T/T Supply Ability : 999+pc+1m
Place of Origin: CHINA Brand Name: jieman
Certification: CE Model Number: GMT-P1

Detail Information

High Light:

GMT-P1 Weighing Transmitter


OIML digital weight transmitterdigital weight transmitter


GMT-P1 weight transmitter

Product Description

The GMT-P1 is a panel mounted weighing transmitter offers exceptional reliability, advanced filtering, and tested ability to perform stably under interference of harsh industrial environments. It is customized for dynamic weighing systems with the highest demand for reliability, response speed and accuracy.


OIML Approval

Easy to use

  • Selectable RS232/485 interface by switch.
  • Simple design to facilitate connection to a PLC.
  • Operating functions by 4 set buttons.
  • I/O points (1 input, 2 outputs) as standard.

Flexible Operation with Stable Performance

  • Optional analog output (0-5V initial).
  • Powers up to 8units of load cells with 6 wires connection, provide long distance compensation.
  • Selectable A/D Converter 30/60/120/240/480/960times/sec.
  • 1,000,000 weight resolution ability, with second generation Vibration Cancellation Filter.
  • Support theoretical calibration with loadcell sensitivity.

Compact Design

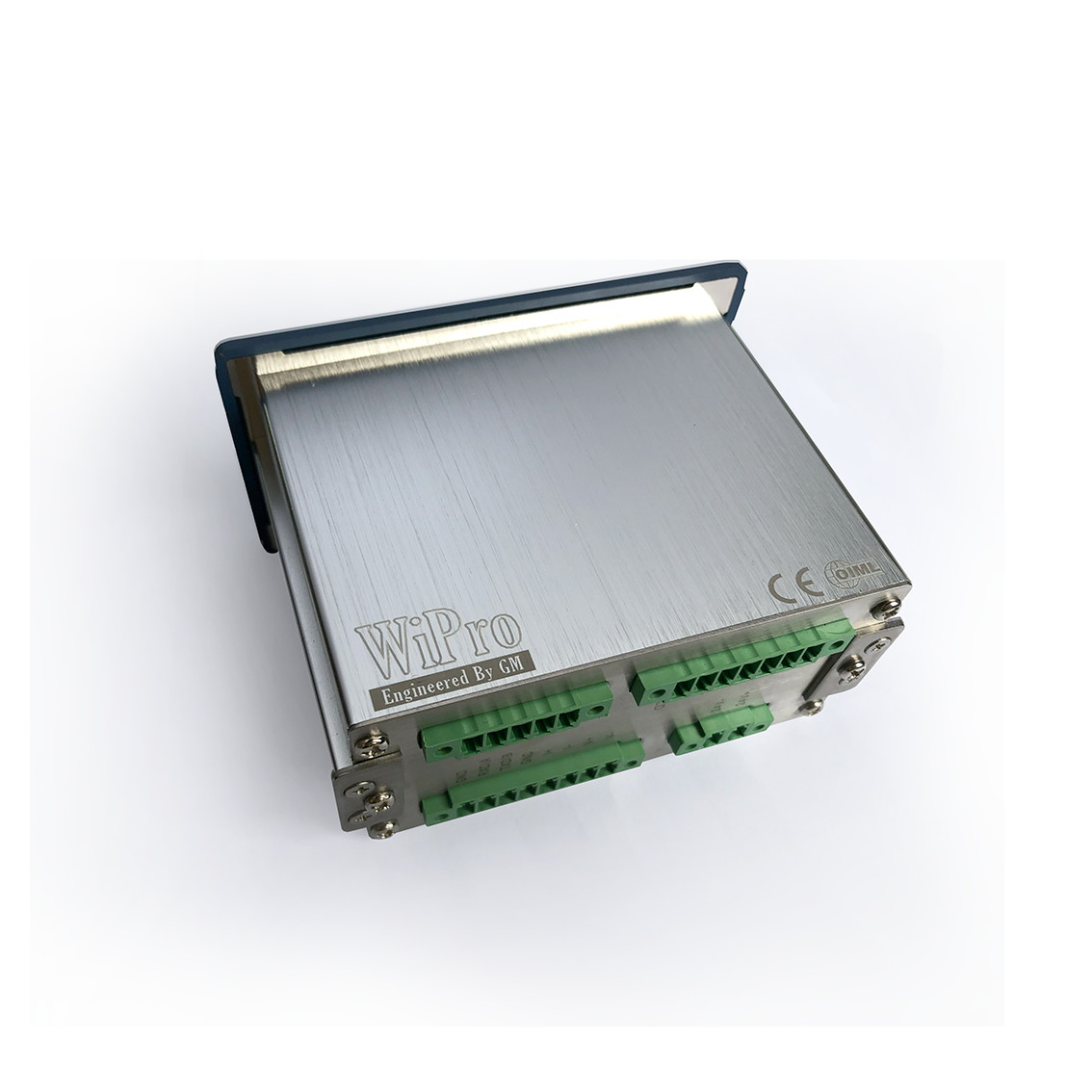

  • Compact, lightweight body makes it ideal for mounting into a control panel
  • OIML RS232 Panel Mounted GMT-P1 Weighing Transmitter 0OIML RS232 Panel Mounted GMT-P1 Weighing Transmitter 0


OIML RS232 Panel Mounted GMT-P1 Weighing Transmitter 2
