PBI Industrial Weighbridge 6kg Floor Weighing Scale

Minimum Order Quantity :	1	Delivery Time :	5-8week
Payment Terms :	T/T	Supply Ability :	999+pc+2m

Place of Origin:	ITALY	Brand Name:	Diniargeo
Certification:	CE	Model Number:	PBI

Detail Information

Range:

6kg 15kg 30kg 60kg 150kg 300kg 600kg

Power Supply:

15Vdc

High Light:

6kg floor mat weight scale

6kg digital pallet scale

6kg weighbridge truck scale

Product Description

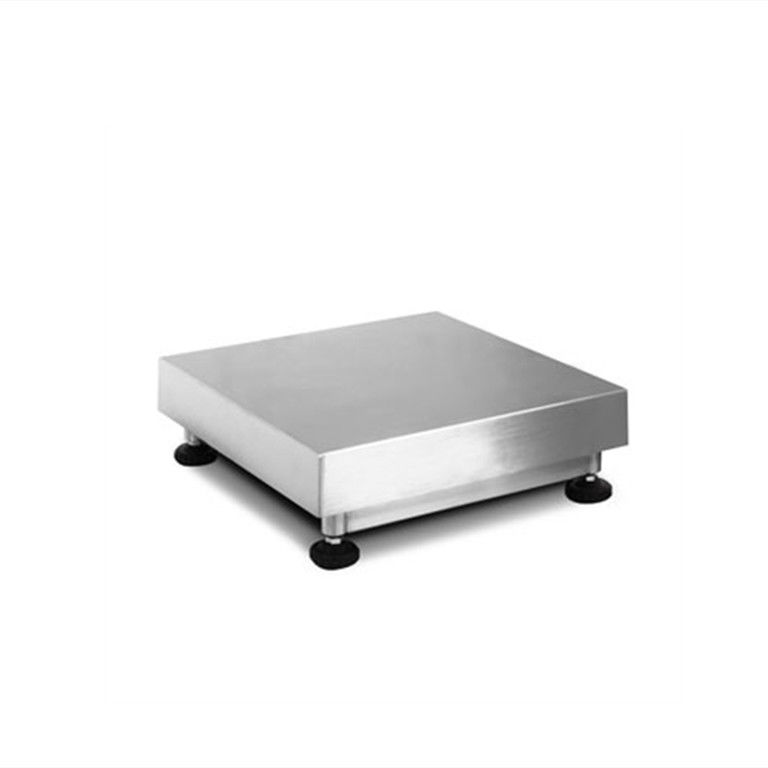

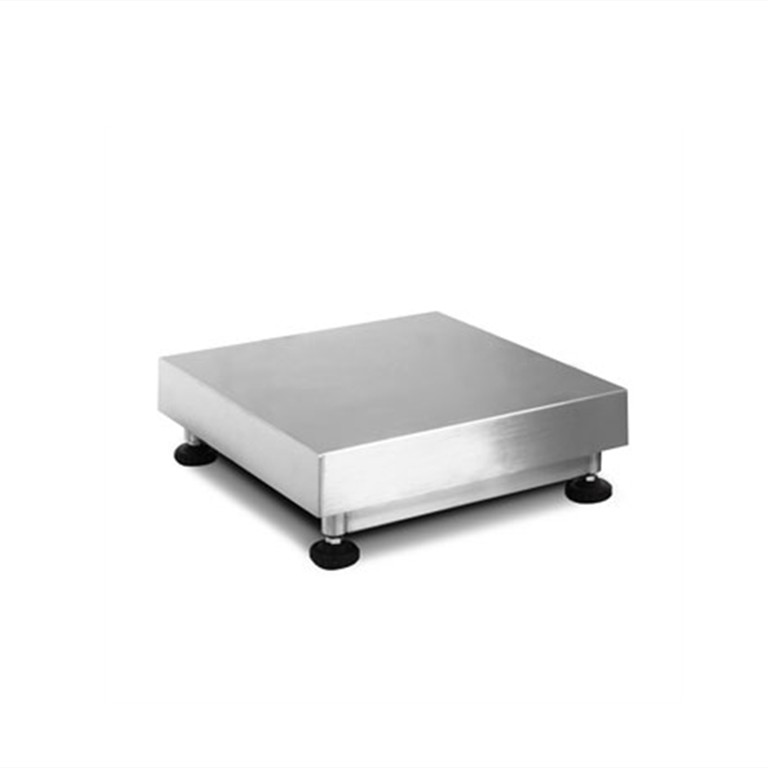

PBI SERIES SINGLE CELL ROUND PLATFORMS stainless steel Weighbridge Truck Scale

Small and medium capacity electronic platforms with a stainless steel surface having a precise and sturdy structure. Suitable for creating scales and automatic weight checking systems for all industrial and commercial applications. The standard version is provided with approved load cell.

TECHNICAL FEATURES

Functions with a “single point” 350 Ohm aluminium load cell, in stainless steel hermetic cover, approved according to OIML R60 C3 standards (3000 divisions), IP65 protection degree.
Stainless steel tubular structure, with adjustable resting feet and level.
Fitted with stainless steel loading surface.
Up to 15 Vdc power supply.
3m shielded cable for connection to the indicator.
Upon request:
- platform calibration service with weight indicator;
- 3000e CE-M approval, to be combined always to the calibration service;
- support column for indicator.

SUPPORT BRACKETS AND COLUMNS

Example of use with bracket, attached column or floor column.

PBI Industrial Weighbridge 6kg Floor Weighing Scale 0

Weighbridge Truck Scale Available versions

Code	l x w x h (mm)	Max (kg)	d (g)	(g)*
PBTI6	300x300x130	6	2	2
PBTI15	300x300x130	15	5	5
PBTI30	300x300x130	30	10	10
PBQI30	400x400x140	30	10	10
PBQI60	400x400x140	60	20	20
PBQI150	400x400x140	150	50	50
PBXI60	600x600x150	60	20	20
PBXI150	600x600x150	150	50	50
PBXI300	600x600x150	300	100	100

(*) Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.
