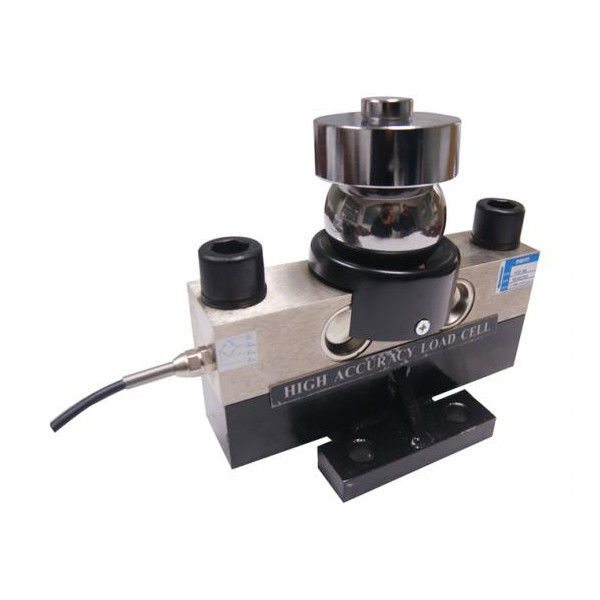

Railway Weighbridge 20t Truck Scale Load Cells

Minimum Order Quantity : 1 Price : Online consultation
Packaging Details : Carton Delivery Time : one week
Payment Terms : T/T Supply Ability : 100000+pc+one week
Place of Origin: CHINA Brand Name: mavin
Certification: - Model Number: ND2 series

Detail Information

Range: 20t-50t Material: Steel Alloy
Rated Output: 2.0mV / V Product Name: Truck Scale Load Cells
Size: 240*136*229.3mm; 340*160*251.3mm Protection Class: IP67 / IP68
High Light:

20t universal load cell


Weighbridge 20 ton load cell


IP68 Truck Scale Load Cells

Product Description

Mavin ND2 Truck Scale Load Cells Railway scale load cell Bridge load cell Weighbridge load cell
ND2 Truck Scale Load Cells parameters:
Range: 20-50t
Material: Steel Alloy
:240*136*229.3mm; 340*160*251.3mm
Rated output: 2.0 mV / V
Protection class: IP67 / IP68

ND2 Truck Scale Load Cells main features:
The load cell elastomer is made of alloy steel; the glue is sealed, the surface is nickel plated, waterproof, corrosion-proof, and the protection level reaches IP67.
Application fields of
ND2 Truck Scale Load Cells:
Widely used in truck scales, railroad scales and other weighing force measuring equipment.
ND2 Truck Scale Load Cells Dimensions:
Railway Weighbridge 20t Truck Scale Load Cells 0
Technical parameters of
ND2 Truck Scale Load Cells:
Rated load 20,25,30,40,50(t)
Rated output 2.0mV/V±0.25%
Zero balance ±0.0200 mV/V
Non-linear 0.03 %R.O.
Lag 0.03 %R.O.
Repeatability 0.03 %R.O.
Creep (30 minutes) 0.03 %R.O.
Zero return (30 minutes) 0.03 %R.O.
Safe overload rate 150 %R.O.
Limit overload rate 200 %R.O.
Output temperature effect 0.002 %R.O./℃
Zero temperature effect 0.003 %R.O./℃
Input constant 390±15 Ω
Output gain 350±5 Ω
Insulation resistance ≥5000 MΩ/(50VDC)
Recommended working voltage 5~12 VDC
Maximum working voltage 15 VDC
range of working temperature -20~60 ℃
Texture alloy steel
Protection class IP67 / IP68
cable φ6×13m
Recommended countertop size
Wiring Red: Power +, Black: Power-,
Green: Signal +, White: Signal-
