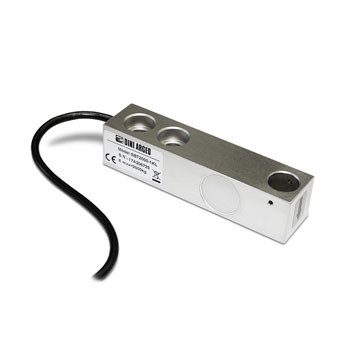

"SBT" SERIES SHEAR BEAM NIKEL-PLATED LOAD CELLS High precision stainless steel Force Load Cell
Dini Argeo nickel-plated approved load cells. The measures are compatible with the main shear beam load cells present on the market. They are suitable for creating CE-M approved scales with 4 load cells or for weighing conveyors, tanks and hoppers, thanks to their accessories.
CAPACITIES (kg): 500, 1000, 2000.
OIML R60 approved, NTEP, ATEX 3GD.
Nickel-plated steel. IP67 protection.
C3 PRECISION CLASS
POTTED SEAL, IP67 PROTECTION
MAX. CAPACITIES FROM 500 TO 2000 kg
SHIELDED CONNECTION CABLE
TEST CERTIFICATE AVAILABLE UPON REQUEST
Minimum load cell verification interval Vmin = EMax / 10.000
Maximum number of verification intervals nLC = 3000
Combined error 0,017% of Full Scale Output (F.S.)
Nonlinearity ± 0.02% FS
Hysteresis ± 0.02% FS
Repeatability ± 0.01% FS
Full Scale Output 2mV/V ± 0.5%
Zero balance ± 1% FS
Compensated Temperature Range -10°C/+50°C.
Operating Temperature Range -20°C/+60°C.
Creep error after 30 minutes <0,02% F.S.
Maximum tolerated excitation voltage 15 Vdc
Input Resistance 380 ± 20 Ohm
Output Resistance 350 ± 5 Ohm
Insulation Resistance >5000 MOhm
Safe Overload 150% F.S.
Ultimate Overload 300% F.S.
6-wire shielded cable, 3.5m long, 5 mm diameter
The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:ATEX II 3G Ex ic IIC T6 (Ta -20÷+65°C) Gc
ATEX II 3G Ex nA IIC T6 (Ta -20÷+65°C) Gc
ATEX II 3D Ex tc IIIC T85°C (Ta -20÷+65°C) Dc IP65.
The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.
Force Load Cell Available versions
