SBX-1KL Weighing Tanks 15V DC High Precision Load Cell supplier

Contact Now

SBX-1KL Weighing Tanks 15V DC High Precision Load Cell

Minimum Order Quantity :	1	Delivery Time :	1-2week
Payment Terms :	T/T	Supply Ability :	99+pc+1m

Place of Origin:	Italy	Brand Name:	Diniargeo
Certification:	CE	Model Number:	SBX-1KL

Detail Information
CAPACITIES:	500,1000，2000,2500（kg）	Compensated Temperature Range:	-10°C / + 40°C
Operating Temperature Range:	–20°C/+60°C	Voltage:	15 VDC
High Light:	weighing tanks cantilever load cell , 15V DC beam type load cell , 15V cantilever load cell

Product Description

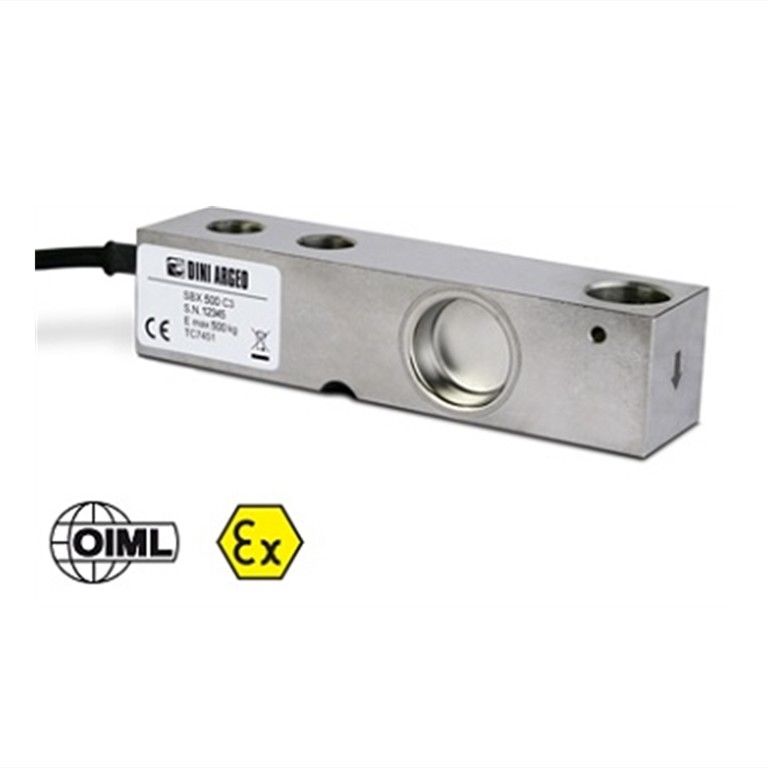

"SBX-1KL" SERIES SHEAR BEAM NIKEL-PLATED LOAD CELLS High precision stainless steel Force Load Cell

Stainless steel approved shear beam load cells, suitable for creating CE-M approved scales with 4 load cells, or for weighing tanks and hoppers, with the aid of its accessories.

CAPACITIES (kg): 500, 1000, 2000, 2500.

OIML R60. C3 precision class.

Stainless steel. IP68 protection.

MAIN FEATURES

C3 PRECISION CLASS

STAINLESS STEEL CONSTRUCTION WITH LASER WELDING

IP68 PROTECTION, IP69K UPON REQUEST

MAX. CAPACITIES FROM 500 TO 2500 kg

SHIELDED CONNECTION CABLE

TEST CERTIFICATE AVAILABLE UPON REQUEST

TECHNICAL FEATURES

Minimum load cell verification interval Vmin = EMax / 10.000

Maximum number of verification intervals nLC = 3000

Combined error 0,017% of Full Scale Output (F.S.)

Full Scale Output 2mV/V +/- 0.5%

Temperature effect on zero 0,002% / °C

Temperature effect on full scale output 0,002% / °C

Compensated Temperature Range -10°C/+50°C

Operating Temperature Range -20°C/+60°C

Creep error after 30 minutes 0,02% F.S.

Maximum tolerated excitation voltage 15 VDC

Input Resistance 1100 ± 20 Ohm

Output Resistance 1000 ± 20 Ohm

Insulation Resistance >5000 MOhm

Safe Overload 150% F.S.

Ultimate Overload 300% F.S.

6-wire shielded cable, 5m long, 5 mm diameter

ATEX VERSION

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:

ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga

ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.

The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

SBX-1KL Weighing Tanks 15V DC High Precision Load Cell 0

Colour	Function
--	SHIELD
YELLOW	OUTPUT +
GREY	SENSE +
BROWN	INPUT +
WHITE	OUTPUT -
GREEN	INPUT -
PINK	SENSE -

Force Load Cell Available versions

	Code	Max (kg)
	SBX500-1KL	500
	SBX1000-1KL	1000
	SBX2000-1KL	2000
	SBX2500-1KL	2500
