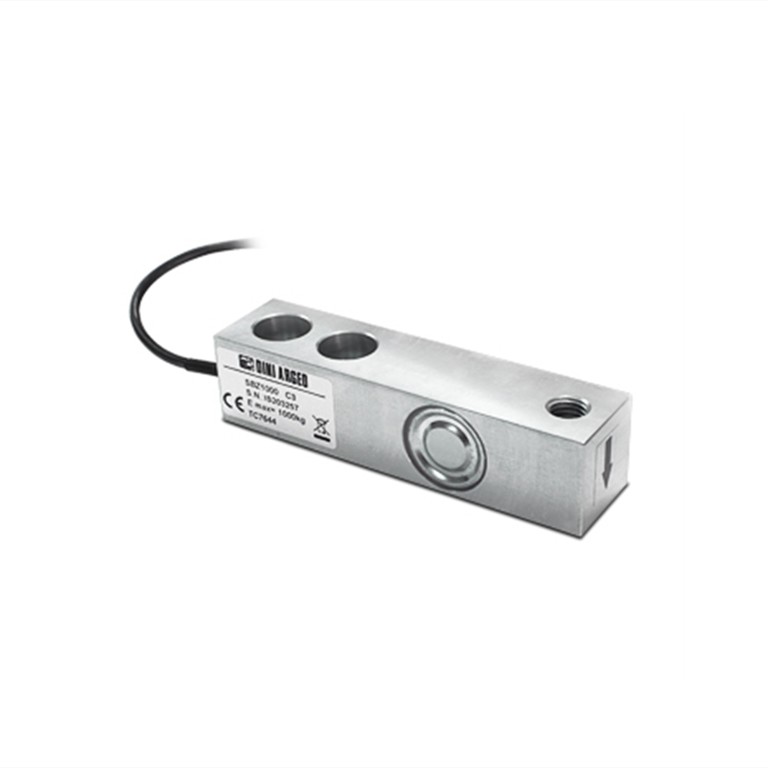

SBZ Shear Beam Nickel Plated Platform Scale Load Cell

Minimum Order Quantity :	1	Delivery Time :	1-2week
Payment Terms :	T/T	Supply Ability :	99+pc+1m

Place of Origin:	Italy	Brand Name:	Diniargeo
Certification:	CE	Model Number:	SBZ

Detail Information
CAPACITIES:	300,500,1000（kg）	Compensated Temperature Range:	-10°C / + 40°C
Operating Temperature Range:	–20°C/+60°C	Voltage:	15 VDC
High Light:	shear beam weighbridge load cell , 1000kg strain gauge load cell , 1000kg weighbridge load cell

Product Description

"SBZ" SERIES SHEAR BEAM NIKEL-PLATED LOAD CELLS High precision stainless steel Force Load Cell

Lightweight aluminium Shear Beam load cells, expecially indicated to create 4 load cells floor scales.

CAPACITIES (kg): 300, 500, 1000.

OIML R60. C3 precision class.

Aluminium.IP67 protection.

MAIN FEATURES

OIML R60 APPROVED

C3 PRECISION CLASS

ALUMINIUM CONSTRUCTION

IP67 PROTECTION DEGREE

MAX. CAPACITIES 300kg - 500kg - 1000kg

TECHNICAL FEATURES

Full scale output (FS): 2.0mV/V ± 0.1%

Maximum number of verification intervals (nLC): 3000

Minimum verification interval Vmin (Y=Emax/Vmin): 10000

Combined error (%FS): ≤± 0.03

Repeatibility: 0,02% Emax

Creep error after 30 minutes: 0,03% di Emax

Zero balance: < ± 1% di Emax

Power supply (recomended): 10 Vdc

Power supply (ultimate): 15Vdc

Input resistance: 1000 ± 20Ω

Output resistance: 1000 ± 20Ω

Insulation resistence: ≥5000MΩ

Compensated Temperature Range : -10 ~ +50 °C

Operating Temperature Range: -20 ~ +60 °C

Safe overload: 120 % di Emax

2m shielded connection wire

Force Load Cell Available versions

	Code	Max (kg)
	SBZ300-1KL	300
	SBZ500-1KL	500
	SBZ1000-1KL	1000
