Weighbridge Digital 30t Truck Scale Load Cells
Contact Person : Peter
Phone Number : +86-13764443932
WhatsApp : +8613764443932
| Minimum Order Quantity : | 1 | Price : | Online consultation |
|---|---|---|---|
| Packaging Details : | Carton | Delivery Time : | one week |
| Payment Terms : | T/T | Supply Ability : | 100000+pc+one week |
| Place of Origin: | USA | Brand Name: | Sensortronics |
|---|---|---|---|
| Certification: | - | Model Number: | 65058 |
|
Detail Information |
|||
| Range: | 10-100k | Material: | Nickel Plated Alloy Tool Steel |
|---|---|---|---|
| Rated Output: | 3.0mV / V | Product Name: | Truck Scale Load Cells |
| Safety Overload: | 150% | Protection Grade: | IP67 |
| High Light: | Sensortronics shear beam load cell,Railroad hollow load cell,150%RO hollow load cell |
||
Product Description

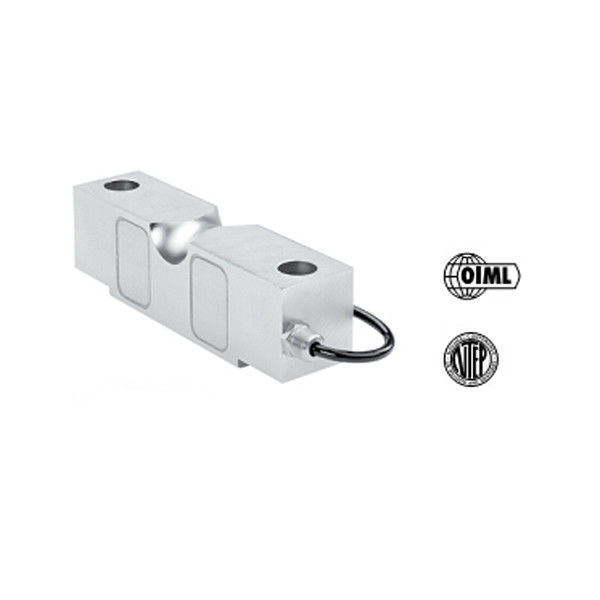

Double-Ended Shear Beam Load Cells Sensortronics 65058 is used in the following applications:
Truck scales
• Railroad track scales
• Precision tank, bin and silo weighing
• Level and inventory monitoring
Double-Ended Shear Beam Load Cells Sensortronics 65058 has rated capacities of 10,000 to 500,000 lbs., is center-link loaded. 65058S stainless steel, welded seals version available, 65058-TSA companion assemblies for vehicle scales, 65058-TWA companion assemblies for vessel weighing.
Double-Ended Shear Beam Load Cells Sensortronics 65058 is trade certified for NTEP Class IIIL:10,000 Divisions; Class III:5,000 Divisions and OIML 3,000 Divisions in 20,000 to 200,000 lb. range and is Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G.
Sensortronics 65058 Truck Scale Load Cells Technical Parameters:
