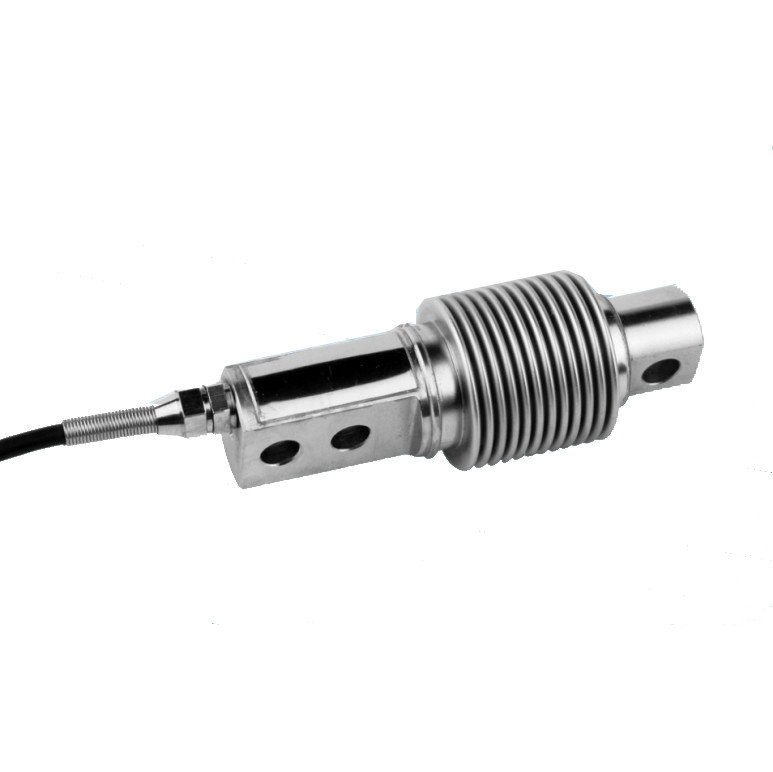

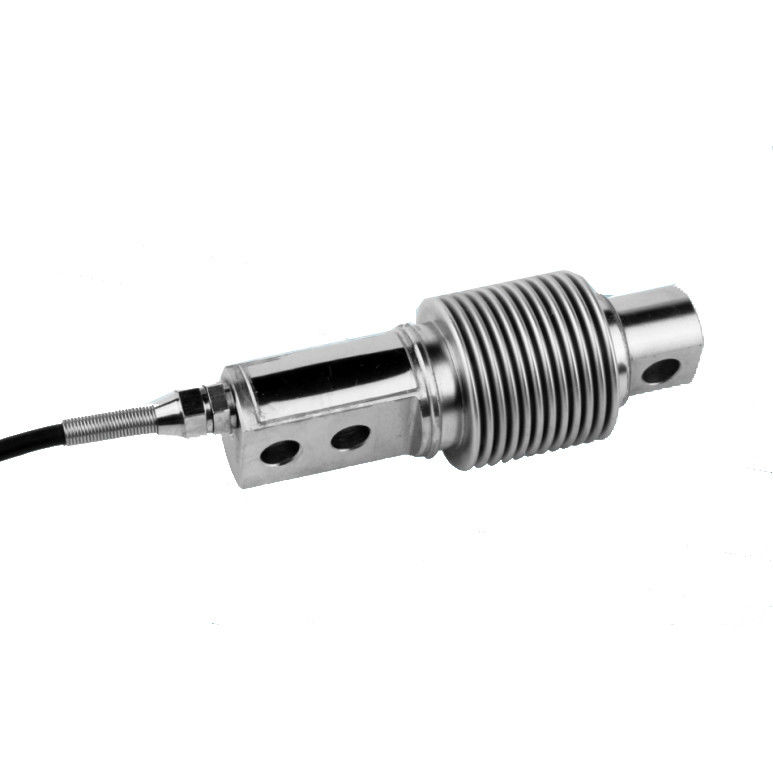

Testing Machine Threaded 100KG Force Load Cell
Contact Person : Peter
Phone Number : +86-13764443932
WhatsApp : +8613764443932
| Minimum Order Quantity : | 1 | Price : | Online consultation |
|---|---|---|---|
| Packaging Details : | Carton | Delivery Time : | one week |
| Payment Terms : | T/T | Supply Ability : | 100000+pc+one week |
| Place of Origin: | CHINA | Brand Name: | CONHON/KELI |
|---|---|---|---|
| Certification: | - | Model Number: | HSX series |
|
Detail Information |
|||
| Range: | 5kg,10kg,20kg,30kg,50kg,100kg,200kg,250kg,500kg | Material: | Stainless Steel Or Alloy Steel |
|---|---|---|---|
| Product Name: | Force Load Cell | Rated Output: | 2.0±0.002mv/v |
| Temperature Range: | -20— + 40 | Readability: | 1/3000 |
| High Light: | hopper scale tension load cell,2mv/v strain gauge load cell |
||
Product Description
FEATURES:
● Capacity 5kg to 500kg
● OIML C3 certificate
● Stainless steel, Alloy steel
APPLICATION:
● Belt scale
● Hopper scale
| Outline Dimension: | ||||||||||||
| Rated capacity | L | L1 | L2 | L3 | L4 | L5 | H | H1 | C | C1 | C2 | C3 |
| 5~250 | 120 | 10 | 82 | 18 | 20 | 44 | 20 | 20 | Φ8.2 | Φ25.5 | Φ32 | Φ45 |
| 300~500 | 120 | 10 | 82 | 18 | 20 | 44 | 20 | 20 | Φ10.2 | Φ25.5 | Φ32 | Φ45 |
| SPECIFICATION: | |
| Rated capacity: 5kg to 500kg | Operating temperature range: -30 to +70℃ |
| Rated output:2.0±0.002mv/v | Maximum safe overload；120% OF R.C |
| Combined error:C3 | Ultimate safe overload；150% OF R.C |
| Non-repeatability:±0.02% F.S | Recommended Excitation；10 to 12V DC |
| Non-linearity:±0.02% F.S | Maximum Excitation；15V DC |
| Hysteresis error:±0.02% F.S | Environment protection: IP68 |
| Zero balance: ±1% F.S | Input impedance: 400±20Ω |
| Creep error(30minutes): ±0.02% F.S | Output impedance: 352±3Ω |
| Temperature effect on zero: ±0.02% F.S | Insulation resistance at 50V DC: ≥5000MΩ |
| Temperature effect on output: ±0.02% F.S | Material: nickel-plated alloy steel |
| Compensated temperature range: -10 to +40℃ |
We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
