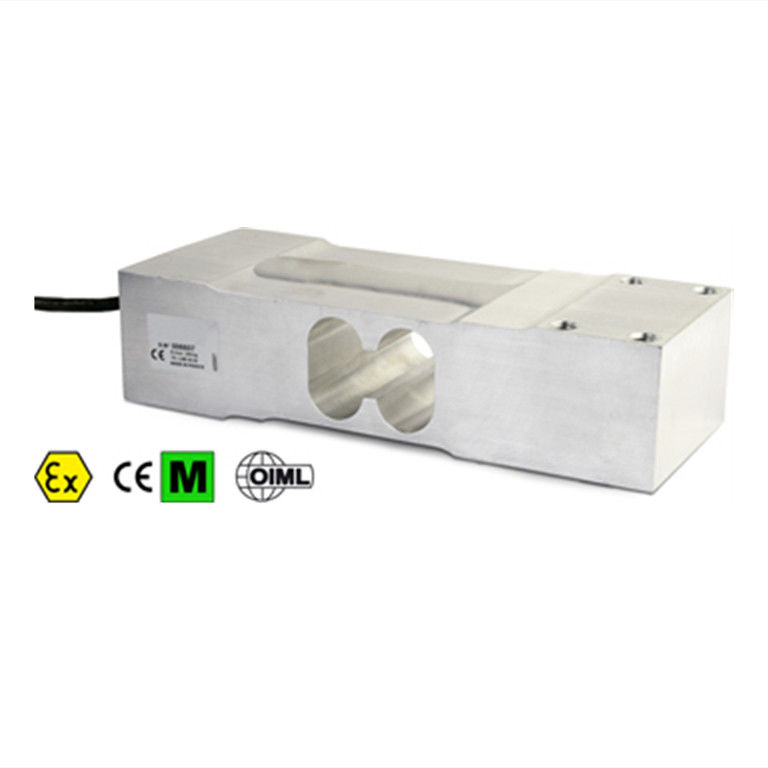

SPM Aluminum Alloy Weighing Force Transducer Load Cell

Minimum Order Quantity :	1	Delivery Time :	1-2week
Payment Terms :	T/T	Supply Ability :	99+pc+1m

Place of Origin:	Italy	Brand Name:	Diniargeo
Certification:	CE	Model Number:	SPM

Detail Information
CAPACITIES:	100,200,300,500,630（kg）	Compensated Temperature Range:	-10°C / + 40°C
Operating Temperature Range:	-20°C/+60°C	Voltage:	15 VDC
Input Resistance:	410 ± 10 Ohm	Output Resistance:	350 ± 5 Ohm
High Light:	Aluminum Alloy shear type load cell , Force electrical load cell

Product Description

SPBC series single point load cell high precision aluminum alloy Weighing Load Cells C6 CLASS

Load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell with maximum dimensions of 700x700 mm.

CAPACITIES (kg): 100, 200, 300, 500, 630.

OIML R60. C3 precision class.

Aluminium alloy. IP65 protection.

MAIN FEATURES

C3 PRECISION CLASS

OFF CENTER LOAD COMPENSATED

MADE IN ALUMINIUM ALLOY

IP65 PROTECTION

MAX. CAPACITIES FROM 100 TO 630kg

FOR PLATFORMS WITH DIMENSIONS UP TO 700 X 700 mm

SHIELDED CONNECTION CABLE

OIML CERTIFICATE AVAILABLE UPON REQUEST

TEST CERTIFICATE AVAILABLE UPON REQUEST

TECHNICAL FEATURES

Minimum load cell verification interval: Vmin = EMax / 10.000

Maximum number of verification intervals: nLC = 3000

Full Scale Output: 2mV/V +/- 10%

Combined error: 0,017% of Full Scale Output (F.S.)

Temperature effect on zero: 0,0028% /°C

Temperature effect on full scale output: 0,0014% /°C

Compensated Temperature Range: -10°C/+40°C

Operating Temperature Range: -20°C/+60°C

Creep error after 30 minutes: 0,025% F.S.

Maximum tolerated excitation voltage: 15 VDC

Input Resistance: 410 ± 10 Ohm

Output Resistance: 350 ± 5 Ohm

Zero Balance: +/-10% F.S.

Insulation Resistance: >1000 MOhm

Safe Overload: 150% F.S.

Ultimate Overload: 200% F.S.

Nominal displacement: < 1mm

SPBC 6-wire shielded cable, 3m long, 5mm diameter

ATEX Version

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:

ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga

ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.

The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

^{SPBC Wiring Code}
^Colour	^Function
^--	^SHIELD
^YELLOW	^{OUTPUT +}
^GREY	^{SENSE +}
^BROWN	^{INPUT +}
^WHITE	^{OUTPUT -}
^GREEN	^{INPUT -}
^PINK	^{SENSE -}

Weighing Load Cells Available versions

Code	Plate Max (mm)	Max (kg)
SPBC100	700x700	100
SPBC200	700x700	200
SPBC300	700x700	300
SPBC500	700x700	500
SPBC630	700x700	630
