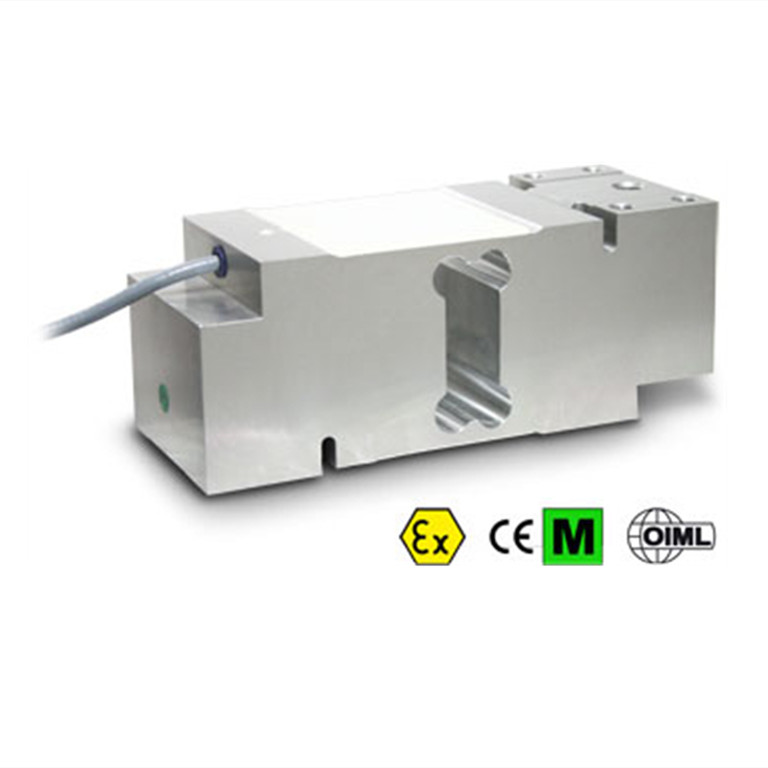

SPM Hazardous Areas 500kg Single Point Force Load Cell

Minimum Order Quantity :	1	Delivery Time :	1-2week
Payment Terms :	T/T	Supply Ability :	99+pc+1m

Place of Origin:	Italy	Brand Name:	Diniargeo
Certification:	CE	Model Number:	SPM

Detail Information
CAPACITIES:	100,200,300,500,630（kg）	Compensated Temperature Range:	-10°C / + 40°C
Operating Temperature Range:	-20°C/+60°C	Voltage:	15 VDC
Input Resistance:	300..500 Ohm	Output Resistance:	300..500 Ohm
High Light:	500kg single point load cell , hazardous areas electrical load cell

Product Description

SPN series single point load cell high precision aluminum alloy Weighing Load Cells C6 CLASS

Load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell; maximum platform dimensions of 800x800 mm.

CAPACITIES (kg): 300, 500, 750.

OIML R60. C3 precision class.

Aluminium alloy. IP67 protection.

MAIN FEATURES

C3 PRECISION CLASS

OFF CENTER LOAD COMPENSATED

ALUMINIUM ALLOY CONSTRUCTION

IP67 PROTECTION

MAX. CAPACITIES FROM 300 TO 750 kg

FOR PLATFORMS WITH DIMENSIONS UP TO 800 X 800 mm

SHIELDED CONNECTION CABLE

OIML CERTIFICATE AVAILABLE UPON REQUEST

TEST CERTIFICATE AVAILABLE UPON REQUEST

TECHNICAL FEATURES

Minimum load cell verification interval: Vmin = EMax / 15.000

Maximum number of verification intervals: nLC = 3000

Sensitivity: 2mV/V ± 10%

Temperature effect on zero: 0,01% FS/10K

Temperature effect on Full Span: 0,001% FS/10K

Compensated Temperature Range: -10°C/+40°C

Operating Temperature Range: -10°C/+50°C

Creep at nominal load in 30 minutes: 0,01% F.S.

Maximum excitation voltage without damage: 15 Vdc

Input Resistance: 300..500 Ohm

Output Resistance: 300..500 Ohm

Insulation Resistance: >2000 MOhm

Mechanical limit load in service: 150% F.S.

Destructive load: 300% F.S.

Deflection at nominal load: <0,5mm

6-wire shielded cable, 3m long, 5mm diameter

ATEX Version

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:

ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga

ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.

The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

^{_{Wiring Code}}
^_Colour	^_Function
^_YELLOW	^_SHIELD
^_WHITE	^{_{OUTPUT +}}
^_GREEN	^{_{SENSE +}}
^_BLUE	^{_{INPUT +}}
^_RED	^{_{OUTPUT -}}
^_GREY	^{_{SENSE -}}
^_BLACK	^{_{INPUT -}}

Weighing Load Cells Available versions

Code	Plate Max (mm)	Max (kg)
SPN300	800x800	300
SPN500	800x800	500
SPN750	800x800	750
