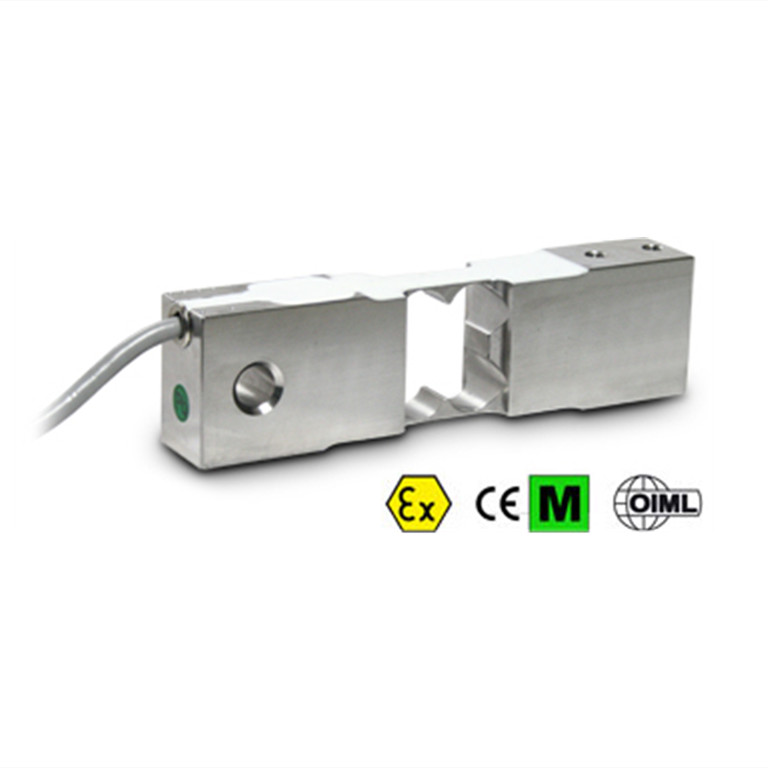

SPSW Single Point Stainless Steel IP67 Strain Gauge Load Cell

Minimum Order Quantity :	1	Delivery Time :	1-2week
Payment Terms :	T/T	Supply Ability :	99+pc+1m

Place of Origin:	Italy	Brand Name:	Diniargeo
Certification:	CE	Model Number:	SPSW

Detail Information
CAPACITIES:	5,7,15,30,50,100,200（kg）	Compensated Temperature Range:	-10°C / + 40°C
Operating Temperature Range:	-10°C/+50°C	Voltage:	15 VDC
Safe Overload:	300% F.S.	Ultimate Overload:	300% F.S.
High Light:	single point piezoelectric load cell , stainless steel tension load cell

Product Description

SPSW series single point load cell high precision aluminum stainless steel Weighing Load Cells C6 CLASS

Stainless steel load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell with maximum dimensions of 500x400 mm.

CAPACITIES (kg): 7.5, 15, 30, 50, 100, 200.

OIML R60. C3 precision class.

17-4 PH stainless steel. IP67 protection.

MAIN FEATURES

C3 PRECISION CLASS

OFF CENTER LOAD COMPENSATED

MADE IN 17-4 PH STAINLESS STEEL

IP67 PROTECTION

MAX. CAPACITIES FROM 7.5 TO 200 kg

FOR PLATFORMS WITH DIMENSIONS UP TO 500 X 400 mm

SHIELDED CONNECTION CABLE

TEST CERTIFICATE AVAILABLE UPON REQUEST

TECHNICAL FEATURES

Minimum load cell verification interval: Vmin = EMax / 10.000

Maximum number of verification intervals: nLC = 3000

Full Scale Output: 2mV/V +/- 10%

Temperature effect on zero: 0,01% FS/10K

Temperature effect on full scale output: 0,001% FS/10K

Compensated Temperature Range: -10°C/+40°C

Operating Temperature Range: -10°C/+50°C

Creep at nominal load in 30 minutes: ± 0,01% F.S.

Maximum tolerated excitation voltage: 15 VDC

Input Resistance: 380 ± 15 Ohm

Output Resistance: 359 ± 5 Ohm

Insulation Resistance (100V) >1000 MOhm

Safe Overload: 300% F.S.

Ultimate Overload: 300% F.S.

Nominal displacement: < 0.5 mm

6-wire shielded cable, 3m long, 5mm diameter

ATEX Version

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:

ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga

ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.

The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

^{Wiring Code}
^Colour	^Function
^WHITE	^{OUTPUT +}
^GREEN	^{SENSE +}
^BLUE	^{INPUT +}
^RED	^{OUTPUT -}
^BLACK	^{INPUT -}
^GREY	^{SENSE -}

Weighing Load Cells Available versions

Code	Plate Max (mm)	Max (kg)
SPSW7.5	500 x 400	7,5
SPSW15	500 x 400	15
SPSW30	500 x 400	30
SPSW50	500 x 400	50
SPSW100	500 x 400	100
SPSW200	500 x 400	200
