SPSX 390 Ohm 500kg 5mm High Precision Load Cell supplier

Contact Now

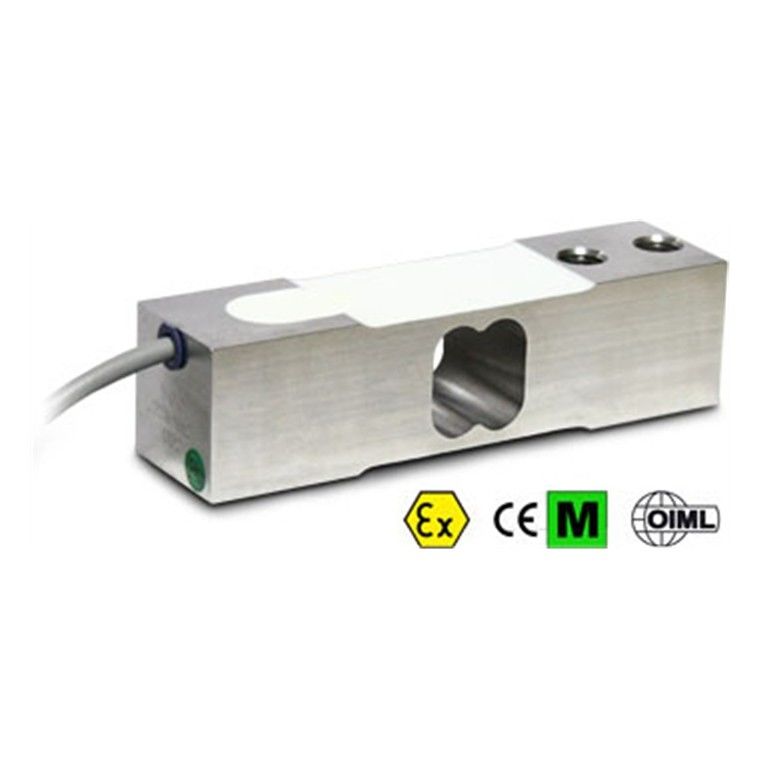

SPSX 390 Ohm 500kg 5mm High Precision Load Cell

Minimum Order Quantity :	1	Delivery Time :	1-2week
Payment Terms :	T/T	Supply Ability :	99+pc+1m

Place of Origin:	Italy	Brand Name:	Diniargeo
Certification:	CE	Model Number:	SPSX

Detail Information
CAPACITIES:	100，300，500（kg）	Compensated Temperature Range:	-10°C / + 40°C
Operating Temperature Range:	-10°C/+50°C	Voltage:	15 VDC
Input Resistance:	390 ± 15 Ohm	Output Resistance:	359 ± 5 Ohm
High Light:	390 Ohm shear beam load cell , 5mm aluminium load cell

Product Description

SPSX series single point load cell high precision aluminum stainless steel Weighing Load Cells C3 CLASS

Stainless steel load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell with maximum dimensions of 600x800 mm.

CAPACITIES (kg): 100, 300, 500.

OIML R60. C3 precision class.

17-4 PH stainless steel. IP67 protection.

MAIN FEATURES

C3 PRECISION CLASS

OFF CENTER LOAD COMPENSATED

MADE IN 17-4 PH STAINLESS STEEL

IP67 PROTECTION

MAX. CAPACITIES FROM 100 TO 500 kg

FOR PLATFORMS WITH DIMENSIONS UP TO 600 X 800 mm

SHIELDED CONNECTION CABLE

TEST CERTIFICATE AVAILABLE UPON REQUEST

TECHNICAL FEATURES

Minimum load cell verification interval: Vmin = EMax / 15.000

Maximum number of verification intervals: nLC = 3000

Full Scale Output: 2mV/V +/- 10%

Temperature effect on zero: 0,01% FS/10K

Temperature effect on full scale output: 0,001% FS/10K

Compensated Temperature Range: -10°C/+40°C

Operating Temperature Range: -10°C/+50°C

Creep at nominal load in 30 minutes: ± 0,01% F.S.

Maximum tolerated excitation voltage: 15 VDC

Input Resistance: 390 ± 15 Ohm

Output Resistance: 359 ± 5 Ohm

Insulation Resistance (100V) >1000 MOhm

Safe Overload: 300% F.S.

Ultimate Overload: 300% F.S.

Nominal displacement: < 0.5 mm

6-wire shielded cable, 3m long, 5mm diameter

ATEX Version

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:

ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga

ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.

The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

Code	Dimensions in mm
Code	A
SPSX300	M10
SPSX500	M12

Wiring Code
Colour	Function
WHITE	OUTPUT +
GREEN	SENSE +
BLUE	INPUT +
RED	OUTPUT -
BLACK	INPUT -
GREY	SENSE -

Force Load Cell Available versions

Code	Plate Max (mm)	Max (kg)
SPSX100	600 x 800	100
SPSX300	600 x 800	300
SPSX500	600 x 800	500
