SS304 Double Weighing 20mA Warehouse Pallet Scales

Minimum Order Quantity : 1 Price : Online consultation
Packaging Details : Carton Delivery Time : one week
Payment Terms : T/T Supply Ability : 100000+pc+one week
Place of Origin: CHINA Brand Name: CONHON
Model Number: CHTS-II

Detail Information

Product Name: U Shape Scale Range: 1T/2T/3T
Material: Stainless Steel Structure: Bar Scale
Working Temperature:: -10 ~ + 40 ℃ Accuracy Grade::
High Light:

20mA pallet beam scales


20mA digital pallet scale


20mA pallet weighing machine

Product Description

CHTS-II Stainless steel weighing bar scale U Shape Scale Stainless steel double scale


Stainless steel weighing bar scale is a newly designed platform scale structure. It is a weighing system consisting of 2 weighing rods (each weighing rod is equipped with 2 shear beam load cells) and a dedicated weighing instrument. By simply transforming the two weighing rods, various weighing systems can be formed, which is very convenient to apply to various industries and weighing needs.

Technical parameters of stainless steel weighing bar scale:

Accuracy grade: Ⅲ

Working temperature: -10 ~ + 40 ℃

Power supply: AC110 ~ 220v50 ~ 60Hz or DC 6v4Ah

Structural features of stainless steel weighing bar scales:

Two weighing blocks using 304 stainless steel

Each weighing rod is equipped with handles and wheels for easy movement;

304 stainless steel with good corrosion resistance;

Four shear beam stainless steel sensors and special big feet;

Product features of stainless steel weighing bar scale:

Zero, peeled, accumulated

Weighing, counting, checking, sorting

Printing and communication interface RS232 / 485 (optional)

4 ~ 20mA analog output (optional)

Relay output, switch information (optional)

Stainless steel weighing bar scale:

Configuration The standard configuration Optional
Scale body Stainless steel Stainless steel
lode cell Stainless steel explosion-proof/stainless steel
Junction Box Stainless steel explosion-proof
indicator XK3190-A12ESS Print / Explosion / Counter / Large screen
annex / Leading slope / instrument column / moving mechanism



Stainless steel weighing bar scaleStandard sizes:

Bar s size




Division value


Countertop height

net weight


0.10×0.8 1/2/3 0.5/1/1 100 24
0.10×1.0 1/2/3 0.5/1/1 100 28
0.10×1.2 1/2/3 0.5/1/1 100 32
0.10×1.5 1/2/3 0.5/1/1 100

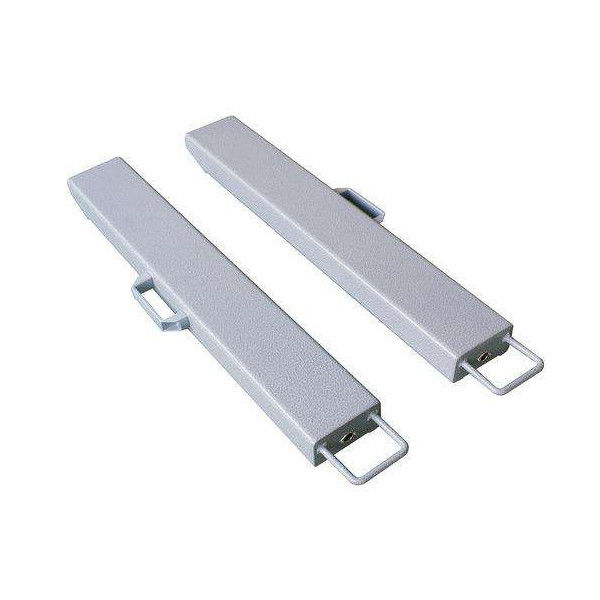

Stainless steel weighing bar scale Product physical map:

SS304 Double Weighing 20mA Warehouse Pallet Scales 0

We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
