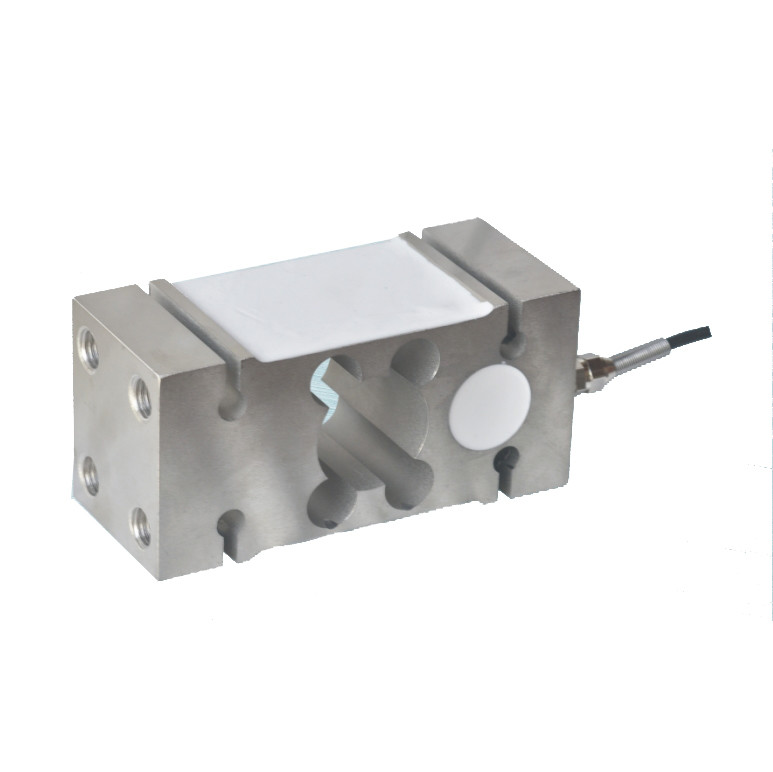

Cantilever Beam Platform 25t Weighing Load Cell
Contact Person : Peter
Phone Number : +86-13764443932
WhatsApp : +8613764443932
Detail Information |
|||
Range: | 50kg,100kg,150kg,200kg,250kg,300kg,500kg,750kg,1t,2t | Material: | Stainless Steel Or Alloy Steel |
---|---|---|---|
Temperature Range: | -20— + 40 | Hysteresis Error: | ±0.02% F.S |
Product Name: | Platform Scale Load Cell | Capacity: | 50kg To 2t |
High Light: | 50kg strain gauge load cell,50kg shear beam load cell,CONHON shear beam load cell |
Product Description
FEATURES:
● Capacity 50kg to 2t
● Strong resistance to partial loading
● High precision
● Compact structure
APPLICATION:
● Platform scale
● Packing scale
Outline Dimension: | ||||||
Rated capacity | L | W | H | T | L1 | L2 |
50,100,150,200,250,300,500,750kg,1t,2t | 150 | 64 | 72 | M14 | 38 | 45 |
SPECIFICATION: | |
Rated capacity: 50kg to 2ton | Maximum safe overload:150% OF R.C |
Rated output:2.0±0.2mv/v | Ultimate safe overload:300% OF R.C |
Accuracy class:0.03 | Recommended Excitation:10V DC |
Non-linearity:±0.03%F.S | Maximum Excitation:15V DC |
Hysteresis error:±0.03%F.S | Environment protection: IP65 |
Creep error(30minutes):±0.03%F.S | Input impedance: 382±15Ω |
Non-repeatability:±0.02% F.S | Output impedance: 352±3Ω |
Zero balance: ±3% %F.S | Insulation resistance at 50V DC: ≥5000MΩ |
Temperature effect on zero: ±0.0175% F.S | Material:nickel-plated alloy steel |
Temperature effect on output: ±0.0175% F.S | Cable length: 3meter, diameter 5mm |
Operating temperature range: -30 to +70℃ | Max.platform size:800x800mm |
