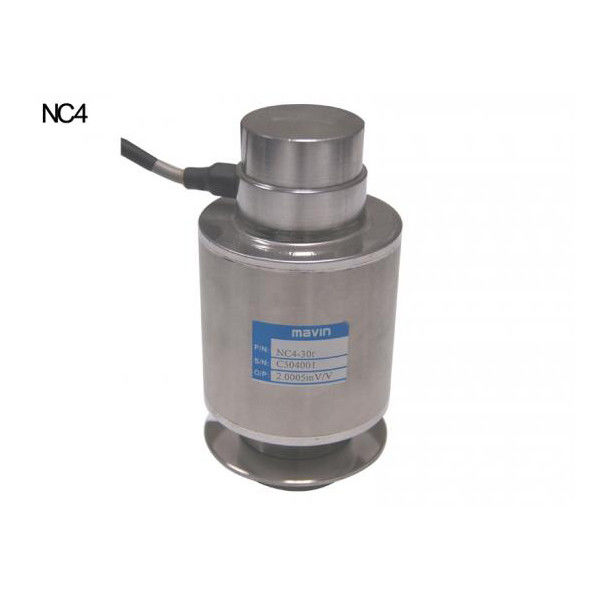

Stainless Steel Column Truck Scale Load Cells

Minimum Order Quantity : 1 Price : Online consultation
Packaging Details : Carton Delivery Time : one week
Payment Terms : T/T Supply Ability : 100000+pc+one week
Place of Origin: CHINA Brand Name: mavin
Certification: - Model Number: NC4 series

Detail Information

Range: 0.1,0.25,0.5,1,2,3 (t) Material: Stainless Steel
Rated Output: 2.0mV/V Product Name: Platform Scale Load Cell
Size: :φ85*160mm; φ85*260mm Protection Class: IP67 / IP68
High Light:

0.25t column load cell


0.25t custom load cell


0.25t Truck Scale Load Cells

Product Description

Mavin NC4 Truck Scale Load Cells stainless steel Column load cell Weighbridge load cell
NC4 Truck Scale Load Cells parameters:

Size:φ85*160mm; φ85*260mm
Rated output: 2.0mV / V
Protection class: IP67 / IP68

NC4 Truck Scale Load Cells main features:

Stainless steel, welded

Range: 15-60T

Accuracy: 0.03% R.O.

Protection level: IP67 / PI68
Rated output: 2.0 mV / V ± 0.25%

Application fields of NC4 Truck Scale Load Cells:
Extensive industrial process force control, batching control system and testing equipment, etc.
NC4 Truck Scale Load Cells Dimensions:
Stainless Steel Column Truck Scale Load Cells 0
Technical parameters of
NC4 Truck Scale Load Cells:
Rated load 15, 20, 30, 40, 60 ( t )
Rated output 2.0mV/V±0.25%
Zero balance ±0.0200 mV/V
Non-linear 0.03 %R.O.
Lag 0.03 %R.O.
Repeatability 0.03 %R.O.
Creep (30 minutes) 0.03 %R.O.
Zero return (30 minutes) 0.03 %R.O.
Safe overload rate 150 %R.O.
Limit overload rate 200 %R.O.
Output temperature effect 0.002 %R.O./℃
Zero temperature effect 0.003 %R.O./℃
Input constant 390±15 Ω
Output gain 350±5 Ω
Insulation resistance ≥5000 MΩ/(50VDC)
Recommended working voltage 5~12 VDC
Maximum working voltage 15 VDC
range of working temperature -20~60 ℃
Texture stainless steel
Protection class IP67 / IP68
cable φ6×12m(<40t)φ6×20m(40t)
Recommended countertop size
Wiring Red: Power +, Black: Power-,
Green: Signal +, White: Signal-

We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
