Stainless Steel Electronic 3t Explosion Proof Scale

Minimum Order Quantity : 1 Price : Online consultation
Packaging Details : Carton Delivery Time : one week
Payment Terms : T/T Supply Ability : 100000+pc+one week
Place of Origin: CHINA Brand Name: CONHON
Model Number: CHCC-EX

Detail Information

Product Name: Explosion Proof Scale Range: 1t,2t,3t
Accuracy: 0.2kg,0.5kg,1kg Platter Size (mm) (W X D): 0.8×1.2
Accuracy Class:: III Excitation Voltage:: 5VDC
High Light:

3t forklift weight scale


RS485 forklift weight scale


RS485 explosion proof floor scale

Product Description

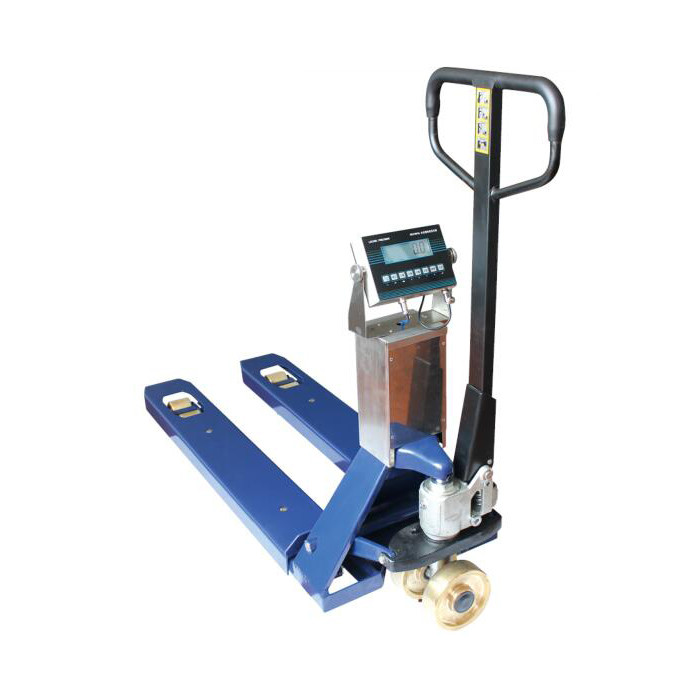

CHCC-EX Explosion Proof Scale explosion-proof electronic forklift scale Stainless steel forklift scale

Brief introduction of explosion-proof electronic forklift scale:
Explosion-proof electronic scales are based on commonly used electronic scales, and take a variety of technical measures such as pressure rise, current limiting, isolation, sealing, and optical fiber cable communications to eliminate or block the sources of ignition (electrical sparks, static sparks) that may occur in the electrical circuits in the scale , High temperature ...) so that the electronic weighing instrument can work safely and reliably in the corresponding hazardous area.

Explosion-proof forklift scale is an electronic scale that integrates handling and weighing functions. It is widely used in chemical, coating, paint and other industries with explosive gas and explosive dust. The weighing system consists of a pallet car body, an explosion-proof load cell, an explosion-proof It consists of a junction box and an explosion-proof weighing instrument; it has the characteristics of being movable, easy to operate, quick to weigh, stable and reliable, which greatly reduces the labor intensity of workers and improves work efficiency.

Technical parameters of explosion-proof electronic forklift scale:
> Accuracy level: III
> Display: 6-digit 20mm LED code tube or 25mm LCD with backlight display
> Resolution: Display 30,000, internal 2,000,000
> System explosion proof mark: EXib IIC T3 GB
> DC: DE001 Intrinsically Safe Battery Pack DC7.2V / 4.0Ah 5
> Max weighing: 1t, 2t, 3t
> Accuracy: 0.2kg, 0.5kg, 1kg
> Car body ceiling: 85mm ~ 200mm. According to the different pallet specifications of the user, narrow fork with a fork width of 56cm and wide fork of 68cm can be selected.
> Working environment temperature: -10 ~ 40 ℃, humidity: ≤85% R.H
Structural features of explosion-proof electronic forklift scale
> Pallet truck structure, suitable for pallet weighing
> Dedicated polyurethane or nylon (copper wheel) roller machinery and hydraulic lifting mechanism, easy to move and long drop, more lightweight
> Surface shot blasting of carbon steel weighing platform, strong corrosion resistance
> Four shear beam type explosion-proof alloy steel sensors with strong overload capacity, stable performance, high accuracy and good reliability.

> A stainless steel explosion-proof junction box

Product function of explosion-proof electronic forklift scale:
> Weight counting, counting, check weighing, holding, sorting, zeroing, tare, accumulation, printing
> Large screen display interface: serial 232 output (optional)
> Analog output: 0-20mA / 4 ~ 20mA, optional

> Communication interface: RS232 / RS485, Modbus RTU (optional),

Explosion-proof electronic forklift scale dimensions:

Stainless Steel Electronic 3t Explosion Proof Scale 0
