Stainless Steel Housing IP65 Weighing Scale Indicator

Minimum Order Quantity : 1 Price : Online consultation
Packaging Details : Carton Delivery Time : one week
Payment Terms : T/T Supply Ability : 100000+pc+one week
Place of Origin: CHINA Brand Name: CONHON
Model Number: XK3101(shark-ieb)

Detail Information

Product Name: Explosion Proof Scale Analog Signal Input Range: 0 ~ 15mV
Protection Class: IP65 Explosion-proof Grade: Ex Ib Ⅱ CT4
Product Accuracy Level:: OIML III Display Resolution:: 1000 ~ 30000
High Light:

IP65 digital platform scale


15mV digital weight indicator


15mV electronic floor scale

Product Description

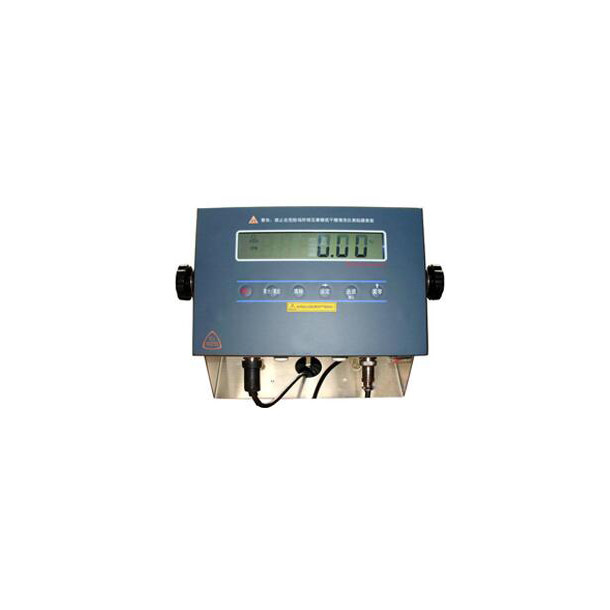

XK3101(shark-ieb) Intrinsically safe bench scale instrument Intrinsically safe explosion-proof weighing indicator

XK3101 (shark-ib) intrinsically safe weighing indicator is a new generation of weighing display control instrument newly introduced by our company. It is widely used in some simple weighing functions such as explosion-proof electronic platform scales, explosion-proof small scales (electronic platform scales), explosion-proof truck scales and so on. Easy to operate and debug, high cost performance.

All stainless steel housing

LCD liquid crystal display, character height 25mm, with backlight

Product explosion-proof mark: Ex ib Ⅱ CT4 /

Product accuracy level: OIML III

Protection class IP65

Analog signal input range: 0 ~ 15mV

Sensor excitation: + 5VDC can drive 4 350Ω resistance strain sensors

Display resolution: 1000 ~ 30000

A / D conversion rate: 50 times per second

Power supply: Standard external safety output power supply (model: AE001) as standard

Optional external DC dedicated battery pack (model DE001)

Installation: Desktop (Outline size: 280 × 135 × 210mm)

Panel type (opening size: 260 × 190 × 82mm)

Analog interface 4-20mA (optional)

Serial communication interface RS232 / RS485 (optional)

Working temperature -20 ℃ ~ + 60 ℃


We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
