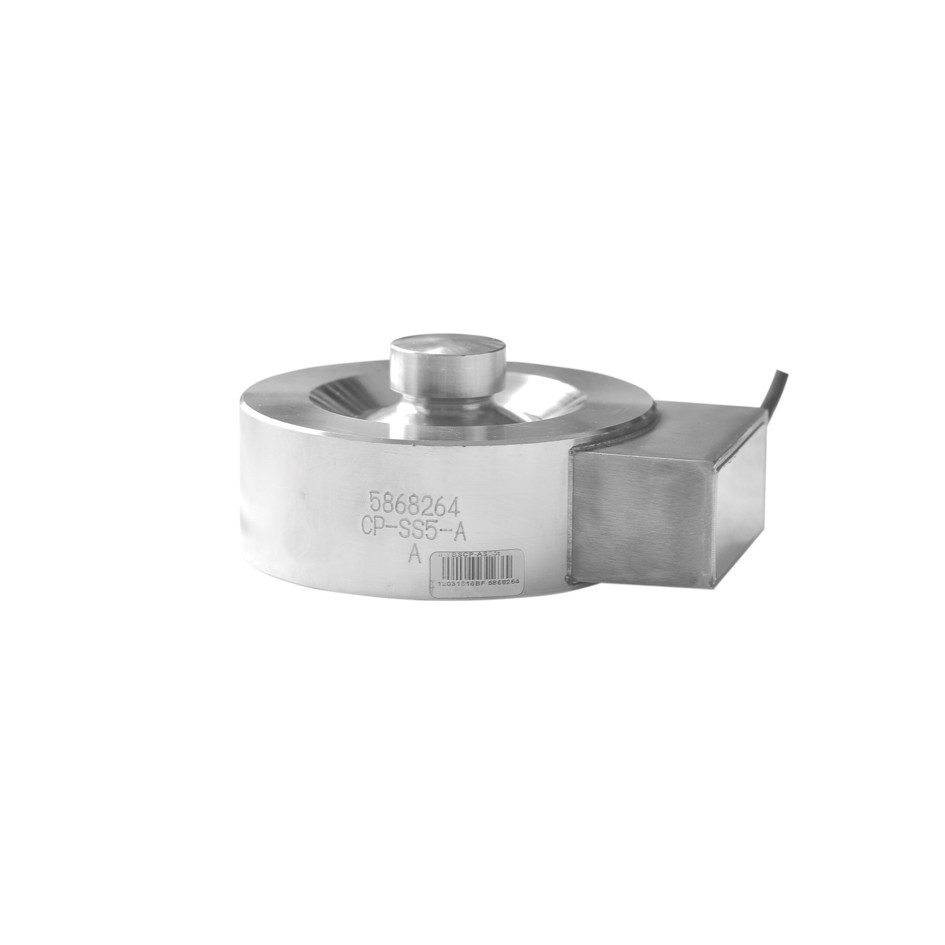

Testing Machine Threaded 100KG Force Load Cell
Contact Person : Peter
Phone Number : +86-13764443932
WhatsApp : +8613764443932
| Minimum Order Quantity : | 1 | Price : | Online consultation |
|---|---|---|---|
| Packaging Details : | Carton | Delivery Time : | one week |
| Payment Terms : | T/T | Supply Ability : | 100000+pc+one week |
| Place of Origin: | CHINA | Brand Name: | CONHON/KELI |
|---|---|---|---|
| Certification: | - | Model Number: | YBSCP series |
|
Detail Information |
|||
| Product Name: | Force Load Cell | Range: | 1t，2t，3t，5t，10t |
|---|---|---|---|
| Material: | Stainless Steel | Rated Output: | 2.0±0.005mv/v |
| Environment Protection: | IP68 | OIML: | C3 |
| High Light: | 1t weigh hopper load cells,industrial high capacity load cell |
||
Product Description
Static industrial control load cell APPLICATION:
● Static hopper scale
● Static industrial control
Static hopper scale force load cell FEATURES:
● Capacity 1ton to 10ton
● Full weld seal, high protection
● Low height
● Stainless steel
● OIML C3
| Rated capacity | A | B | C |
| 1 | 48 | 33 | SR30 |
| 2 | 48 | 33 | SR60 |
| 5 | 48 | 35 | SR60 |
| 10 | 53 | 40 | SR80 |
YBSCP Series Load Cell SPECIFICATION:
| Rated capacity: 2.5ton to 20ton | Operating temperature range: -30 to +70℃ |
| Rated output:2.0±0.005mv/v | Maximum safe overload；150% OF R.C |
| Combined error:±0.03% F.S | Ultimate safe overload；200% OF R.C |
| Non-repeatability:±0.03% F.S | Recommended Excitation；10 to 12V DC |
| Non-linearity:±0.03% F.S | Maximum Excitation；15V DC |
| Hysteresis error:±0.03% F.S | Environment protection: IP68 |
| Zero balance: ±1% F.S | Input impedance: 400±20Ω/750±10Ω |
| Creep error(30minutes): ±0.03% F.S | Output impedance: 352±3Ω/702±3Ω |
| Temperature effect on zero: ±0.02% F.S | Insulation resistance at 50V DC: ≥5000MΩ |
| Temperature effect on output: ±0.05% F.S | Material: Stainless steel |
| Compensated temperature range: -10 to +40℃ | Cable length: 5 meter, diameter 5mm |
We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
