TPWLK Electronic Weighing 1000kg Forklift Weight Scale

Minimum Order Quantity : 1 Delivery Time : 5-8week
Payment Terms : T/T Supply Ability : 99+pc+3m
Place of Origin: Italy Brand Name: Diniargeo
Certification: CE Model Number: TPWLK

Detail Information

Range: 500kg 1000kg 2000kg Fork Dimensions: 1150 X 550 X 85 Mm.
Maximum Lifting Capacity: 2000kg Accuracy: +/- 0.1% Of The Maximum Capacity.
High Light:

1000kg pallet weighing scales


1000kg industrial pallet scale


1000kg pallet floor scale

Product Description

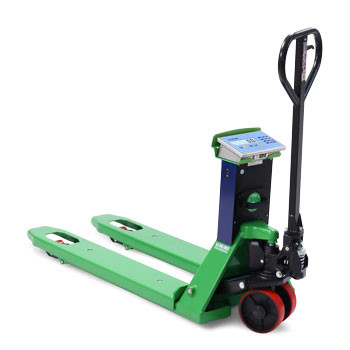

TPWLK "LOGISTIC" SERIES PALLET TRUCK SCALE High precision Forklift Pallet Scales

Pallet truck scales, with built-in electronic weighing, which are reliable, easy to use, suitable for harsh work conditions. These are essential for one who needs to weigh accurately but save time also. Fitted with rechargeable extractable battery. Available also with a built-in printer as well as CE-M DOUBLE RANGE approved.



Maximum lifting capacity: 2000 kg.

Accuracy: +/- 0.1% of the maximum capacity in the versions for internal use.

Accuracy: +/- 0.05% of the maximum capacity in the "M" approved versions.

Fork dimensions 1150 x 550 x 85 mm.

Weighs about 125 kg.

Structure in extra thick steel and oven-fire painted mechanics.

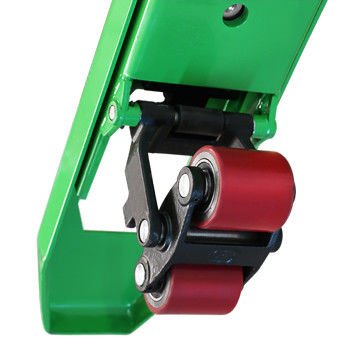

Steering wheels and double loading poliurethane rollers.

4 stainless steel IP68 load cells for the legal for trade use version, IP67 load cells for the internal use version.

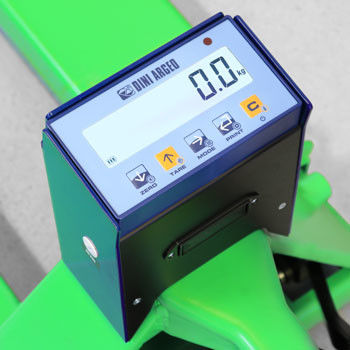

Weight indicator in IP65 STAINLESS STEEL waterproof case, easy to clean and resistant to harsh and corrosive environments; large 25mm LCD display high contrast digits, which are clearly visible even in poor lighting conditions and with low temperatures, and 17-key functional waterproof keypad, with indication for quick access to main functions and regulations.

Configuration, calibration and diagnostics from keyboard or PC with DINITOOLS.

Standard supply with extractable rechargeable long lasting battery, with INSTAPLUG reversible quick coupling connector. Fitted with battery charge.

The operating time is of about 80 hours of continuous use or one month with the tipycal non continuous use, thanks to its auto switch-off function.

Programmable auto power saving function.

Battery level indication.

Equipped with 230Vac 50 Hz battery charger.

Configurable RS232/C bidirectional port for connection to a printer, with customisable print format.

Configurable RS232/C bidirectional port for PC, modem radio or portable terminal.

IR input for remote control management.

Fitted with thermal printer in the TPWLKP and TPWLKPM versions, with Date&Time card.



Special steering wheels.

680 mm fork width.

Special fork length from 850 to 1500 mm.

Special capacity e/o divisions.

High resolution.



The user can select the operating modes directly using the dedicated key*:

- High resolution display x 10

- Precision weighing with temporary recalibration via a sample weight (for internal factory use)

- Net/Gross

- Lb to Kg converter

- Free conversion factor (for meter and litre counters etc.)

- Weight totalizer

- Formulizer

- +/- controller with quick target and threshold input

- Percentage weighing

- Piece counter

- Hold

The “alibi memory” function is available in combination with the required operating mode and it is activated automatically when installing the relevant optional board.

Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.

* These quick access keys to the menus can be blocked by configuring a dedicated password.


Forklift Pallet Scales Available versions








TPWLK Electronic Weighing 1000kg Forklift Weight Scale 0




500 / 1000 / 2000

0,2 / 0,5 / 1



TPWLKM-6 TPWLK Electronic Weighing 1000kg Forklift Weight Scale 1

1000 / 2000


0,5 / 1



500 / 1000 / 2000

0,2 / 0,5 / 1



TPWLKPM-6 TPWLK Electronic Weighing 1000kg Forklift Weight Scale 1

1000 / 2000


0,5 / 1
