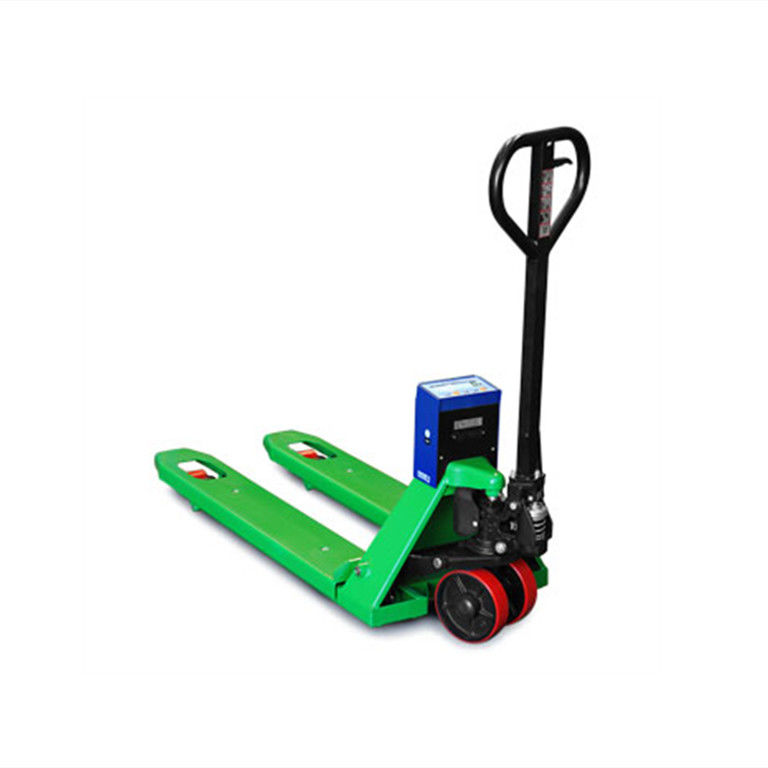

TPWN "Network" series code wheel car (with integrated digital scale) high precision electronic Forklift Pallet Scales
Pallet truck scale supplied with new DFW series integrated weighing indicator. The new program allows the user to easily access to main software functions and weighing operations. The large backlit display allows an optimal reading of the weight in any lighting condition.
Power supply through 4 AA batteries.
PALLET TRUCK SCALE: MAIN FEATURES
Maximum lifting capacity: 2000 kg.
Accuracy: +/- 0.1% of the maximum capacity.
Fork dimensions: 1150 x 550 x 87 mm.
Weighs about 110 kg.
Structure in extra thick steel and oven-fire painted mechanics.
Steering wheels and double loading rollers with a polyurethane coating.
4 stainless nickel-plated steel load cells IP67.

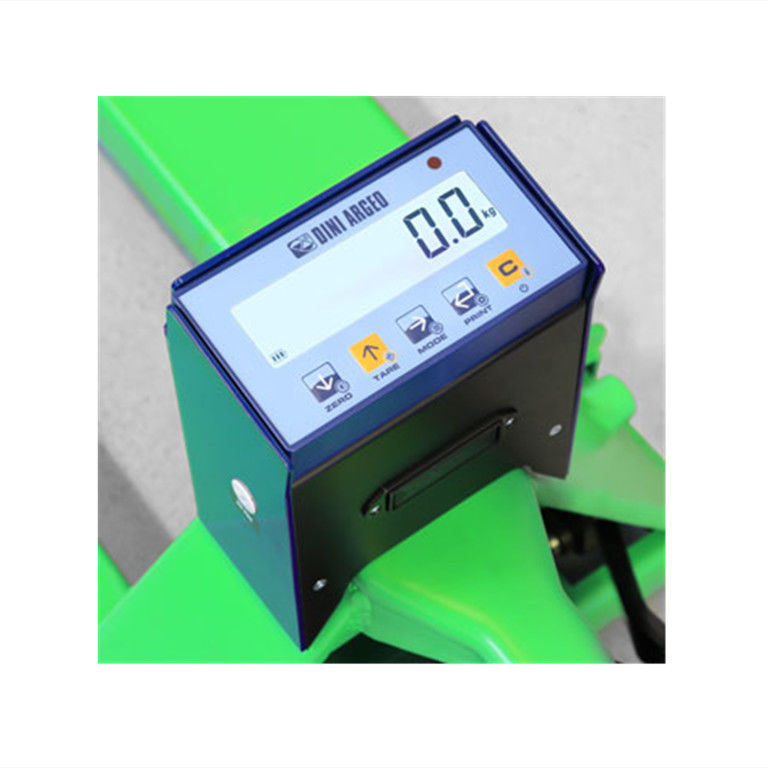

Weight indicator with 6 25mm digits on a backlit LCD display, which are clearly visible even in poor lighting conditions, and waterproof keyboard, with 5 functional keys.
Configuration, calibration and diagnostics from keyboard or PC with DINITOOLS.
Power supply through 4 AA batteries, which may also be rechargeable.
Operating time: aproximately 40 hours with continuous use, or one month with the typical non continuous use, thanks to the auto switch-off function.
Programmable auto switch-off, for power saving function.
Battery level indication.
The user can select the operating modes directly using the dedicated key*:
- High resolution display x 10
- Lb to Kg converter
- Free conversion factor (for meter and litre counters etc.)
- Weight totalizer
- +/- controller with quick target and threshold input
- Percentage weighing
- Percentage batching with programmable target
- Piece counter
- Alibi memory (optional)
Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.
* These quick access keys to the menus can be blocked by configuring a dedicated password.
Forklift Pallet Scales Available versions
