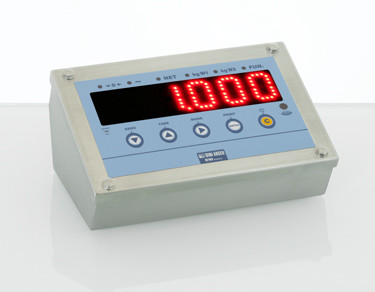

"DFWDXT": INDICATOR WITH LARGE AND VERY BRIGHT RED LED DISPLAY Weight Indicators Controller
Digital weight indicator, with large and very bright and efficient, 40 mm red LED matrix display (SMD technology), easily visible from all angles, from long distances, and in full sunlight. Brightness intensity is easily adjustable through the software on PC. Its high performance and available programmes make it suitable for all industrial and commercial applications. CE-M approvable (OIML R-76 / EN 45501).
MAIN STANDARD FEATURES
Waterproof 5-key functional keypad.
6 large and very bright 40 mm LED digits, easily visible from all angles and from great distances, with an adjustable brightness intensity.
The SMD technology guarantees a high efficiency and brightness, also in full sunlight.
6 LED for indication of active functions.
Stainless steel case with IP68 protection against rain and dust, easy to clean and resistant in harsh and corrosive environments.
Suitable for use on the table, or wall.
Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.
Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
Up to 8 signal linearization points.
A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.
Digital calibration and set-up from keyboard or from PC with DINITOOLS™.
Power supply 110-240Vac or 6 Vdc through fitted built-in rechargeable battery.
Connection with up to 8 load cells with 350 Ohm input resistance.
EU Type Examination Certificate (45501:2015)
Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selectable function command, on/off switching.
- High Resolution Weighing x 10.
- Net/Gross or lb/kg conversion.
- Formula weighing.
- +/- Checkweighing.
- Percentage weighing.
- Approved transmission of the weight to PC/PLC or data recording on MMC/USB (with Alibi memory ALMEM option).
- Counting(Max. resolution of 1.500.000 divisions).
- In/Out Truck weighing.
- Hold and Peak.
- Set Point Control (with DFIO option).
AVAILABLE FUNCTIONS FROM REMOTE CONTROL
Infrared 19-key remote control: zero, tare / manual tare, enable / disable function, print, switch-off.
Radiofrequency 6-key remote control: zero, tare, enable / disable function, print, switch-off.
RS232/C port configurable for connection with printer/labeler, or for attached printer.
RS232/C (or optionally RS485) bi-directional port configurable for PC, PLC, remote display, and radio modem. Quick RJ RS232 plug connection.
Specific programme (MSTSLV code) for use of the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW.
Multi-scale repeater (MASTER):
function which allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.
UNIVERSAL weight repeater:
function which allows to repeat the weight of any scales, through the configuration of the input string.
Click to learn more.
Weight Indicators Controller Available versions
||Indicator with LED matrix display (SMD technology). IP68 stainless steel case, 5-key keypad, and standard weighing programme.
