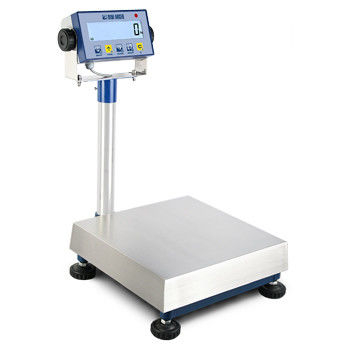

WALL-E Steel Tubular 4 AA Batteries Platform Bench Scale

Minimum Order Quantity : 1 Delivery Time : 2-4week
Payment Terms : T/T Supply Ability : 100+pc+1m
Place of Origin: Italy Brand Name: Diniargeo
Certification: CE Model Number: WALL-E

Detail Information

Range: 6kg 15kg 30kg 150kg 300kg 600kg
High Light:

RS485 platform weighing scale


RS485 electronic bench scale


4 AA batteries electronic bench scale

Product Description

High-Precision"WALL-E" SERIES BENCH AND FLOOR SCALESStainless Steel Scale Series, Industrial Electronic Scales
Bench and floor scales, with column, characterized by multifunction weight indicator, hard and sturdy structure and stainless steel loading surface. Easy to use and versatile, guaranteeing precision and reliability. Particularly suitable for industrial and commercial use. Available also in CE-M approved version according to OIML R-76 / EN 45501 standards.
Weight indicator with ABS case, 25mm backlit LCD display with 6 high contrast digits and icons for showing the active functions. 5-key functional waterproof keypad, with indication for quick access to main functions and regulations.
Functioning with an aluminium load cell, 3000d approved with IP65 protection degree.
Steel tubular structure, oven-fire painted blue, with adjustable resting feet and level.
Stainless steel loading surface, size: see the table.
Fitted with fixing bracket with adjustable inclination and support column, height:
- 350 mm in the "T" models;
- 500 mm in the "Q" models;
- 700 mm in the "X" and "E" models.
Digital calibration and Set-Up from keypad or from PC through DINITOOLS.
Supplied as standard with 4 AA batteries extractable drawer (batteries not included), and 12V external power adapter (if connected it excludes the battery supply).
RS232/RS485 port for connection to PC, PLC or repeater.
RS232 port configurable for connection to printer.
IR input for managing the remote control.
CE-M approval (OIML R-76 / EN 45501).
The user can select the operating modes directly using the dedicated key*:
- High resolution display x 10
- Precision weighing with temporary recalibration via a sample weight (for internal factory use)
- Net/Gross
- Lb to Kg converter
- Free conversion factor (for meter and litre counters etc.)
- Weight totalizer
- Formulizer
- +/- controller with quick target and threshold input
- Percentage weighing
- Piece counter
- Hold
The “alibi memory” function is available in combination with the required operating mode and it is activated automatically when installing the relevant optional board.
Optional functions:
- PEAK, detection of weight peaks (code DFWPK)
- Newton to Kg converter (code DFWPK)
Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.
* These quick access keys to the menus can be blocked by configuring a dedicated password.
Available versions
l x w x h
WALL-E Steel Tubular 4 AA Batteries Platform Bench Scale 0
  WET6-1 300x300x130 6 2 2
  WET15-1 300x300x130 15 5 5
  WET30-1 300x300x130 30 10 10
  WEQ30-1 400x400x140 30 10 10
  WEQ60-1 400x400x140 60 20 20
  WEQ150-1 400x400x140 150 50 50
  WEX60-1 600x600x150 60 20 20
  WEX150-1 600x600x150 150 50 50
  WEX300-1 600x600x150 300 100 100
  WEE300-1 800x800x165 300 100 100
  WEE600-1 800X800X165 600 200 200
