Weighbridge 3.0mV / V Platform Scale Load Cell

Minimum Order Quantity : 1 Price : Online consultation
Packaging Details : Carton Delivery Time : one week
Payment Terms : T/T Supply Ability : 100000+pc+one week
Place of Origin: CHINA Brand Name: mavin
Certification: - Model Number: NB2 series

Detail Information

Range: 0.1,0.25,0.5,1,2,3 (t) Material: Stainless Steel Or Alloy Steel
Rated Output: 2.0 Or 3.0mV / V Product Name: Platform Scale Load Cell
Size: :130*35.5*31.3mm Protection Class: IP67 / IP68
High Light:

Weighbridge industrial load cells


Weighbridge electronic load cell


31.3mm electronic load cell

Product Description

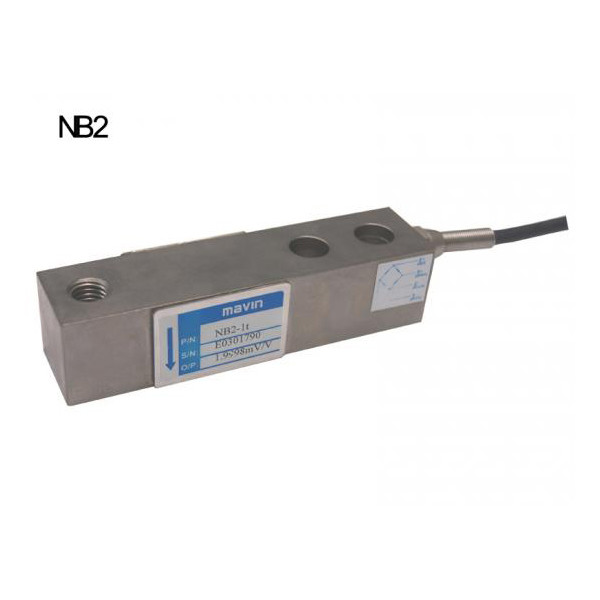

mavin NB2 Electronic Platform Scale Load Cell NB2-1T load cell Weighbridge load cell
NB2 platform scale load cell parameters:
Range: 100-3000kg

Rated output: 2.0 or 3.0mV / V
Protection class: IP67 / IP68
NB2 platform scale load cell main features:
The sensor elastic body is made of alloy rigid material; the surface is nickel plated; the glue is sealed.
Application fields of NB2 platform scale load cell:
Widely used in electronic weighing scales, hopper scales, floor scales, industrial weighing systems and other weighing force measuring equipment
NB2 platform scale load cell Dimensions:
Weighbridge 3.0mV / V Platform Scale Load Cell 0
Technical parameters of NB2 Platform Scale Load Cell:
Rated load 0.1,0.25,0.5,1,2,3 (t)
Rated output 2.0mV/V±0.15%;3.0mV/V±0.15%
Zero balance ±0.0200 mV/V
Non-linear 0.03 %R.O.
Lag 0.03 %R.O.
Repeatability 0.03 %R.O.
Creep (30 minutes) 0.03 %R.O.
Zero return (30 minutes) 0.03 %R.O.
Safe overload rate 150 %R.O.
Limit overload rate 200 %R.O.
Output temperature effect 0.002 %R.O./℃
Zero temperature effect 0.003 %R.O./℃
Input constant 390±15 Ω
Output gain 350±5 Ω
Insulation resistance ≥5000 MΩ/(50VDC)
Recommended working voltage 5~12 VDC
Maximum working voltage 15 VDC
range of working temperature -20~60 ℃
Texture alloy steel
Protection class IP67 / IP68
cable φ5×4m
Recommended countertop size
Wiring Red: Power +, Black: Power-,
Green: Signal +, White: Signal-
